Specifications
Lathe machine1. hardened guide way and gears
2. Rapid feed structure
3. Gear grooves are available

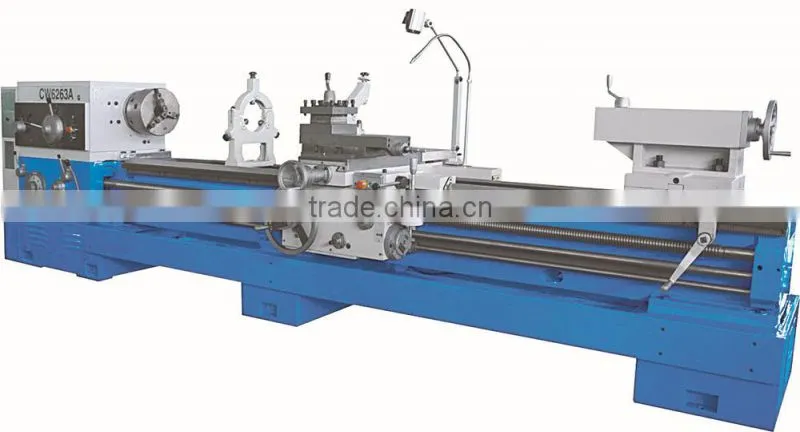

Heavy-duty Lathe Machine
Feature:
1.Guide way surfaces and gears in headstock are supersonic frequency hardened for long service life and lower noise.
2.The spindle system is high in rigitidy and accuracy.
3.Rapid feed structure is available on apron.
4.Clutch in headstock makes the lathe start smoothly and brake quickly.
5.Gear grooves are available on bed to prevent tailstock from retreating.
Specification:
ITEMS |
CW6180A/CW6280A |
Max. swing over bed |
Ø800 mm |
Max. swing over carriage |
Ø520 mm |
* Max. swing over gap |
Ø1000 mm |
Width of bed |
560 mm |
*Effective length of gap |
310 mm |
Max. length of work piece(two centers) |
1500 mm |
Max. turning length |
1150 mm |
Max. Weight of work piece(between centers) |
2000kg |
Spindle nose |
D11 |
Spindle bore |
Ø105 mm |
Cone hole diameter and taper of spindle hole |
Metric Ø120 1:20 |
Number of speeds |
18 |
Spindle speed scope |
7.5~1000 r/min |
Pitch of longitudinal ball screw/diameter |
12 mm/ Ø55 |
Number of longitudinal feeds |
64 |
Range of longitudinal feeds(1:1) |
0.1~1.52 r/min |
Range of longitudinal feeds(16:1) |
1.6~24.3 r/min |
Number of cross feeds |
64 |
Range of cross feeds |
half of longitudinal feeds |
Rapid traverse for longitudinal |
4000 mm/min |
Rapid traverse for cross |
2000 mm/min |
Thread cutting & range/no. for Metric pitch threads |
1~240 mm/50 |
Thread cutting & range/no. for Whit-worth pitch threads |
14~1 TPI/26 |
Thread cutting & range/no. for Module threads |
0.5~120 mm/53 |
Thread cutting & range/no. for D.P. threads |
28~1 DP/24 |
Vertical distance from spindle center to installing basis |
33 mm |
Size of tool shank |
32×32 mm |
Max. travel of cross slide |
440 mm |
Swing angle of tool post |
±90° |
Max. travel of top slide |
200 mm |
Tailstock taper of bore |
M.T.NO.6 |
Tailstock sleeve travel |
230 mm |
Tailstock sleeve dia. |
Ø100 mm |
Power of main motor |
11KW |
Rapid feed motor power |
1.1KW |
Power of cooling pump |
90W |
3m Overall dimensions(L×W×H) |
3725×1393×1537mm |
Net weight(3m) |
3900kg |
Note : The items with “*” are only for 62 series. | |
Standard accessories:
Ø 325 3jaw chuck
Face Plate
Morse reduction Metric 120 /M.T.NO.5
Centers M.T.NO.5
Wenches
Operation manual
Optional accessories:
Ø 500 4jaw chuck
Follow rest
Steady rest
