Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Large Size Surface Grinding Machine

Large Size Surface Grinding Machine

Name: Large Size Surface Grinding Machine
Brand: surface grinding machine
SKU: 115320193

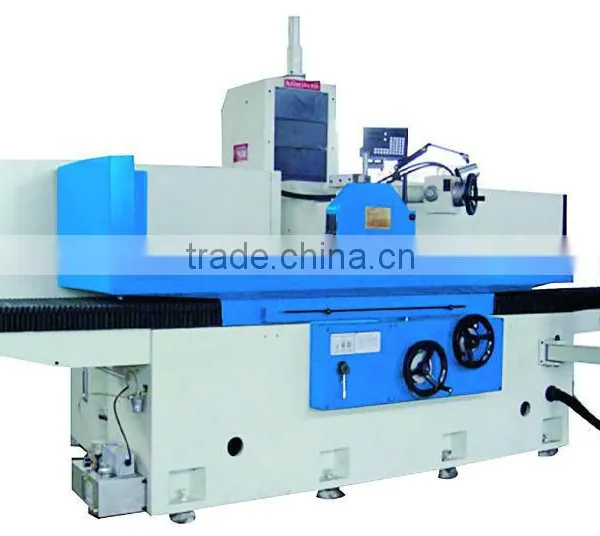

Large Size Surface Grinding Machine thumbnail-1

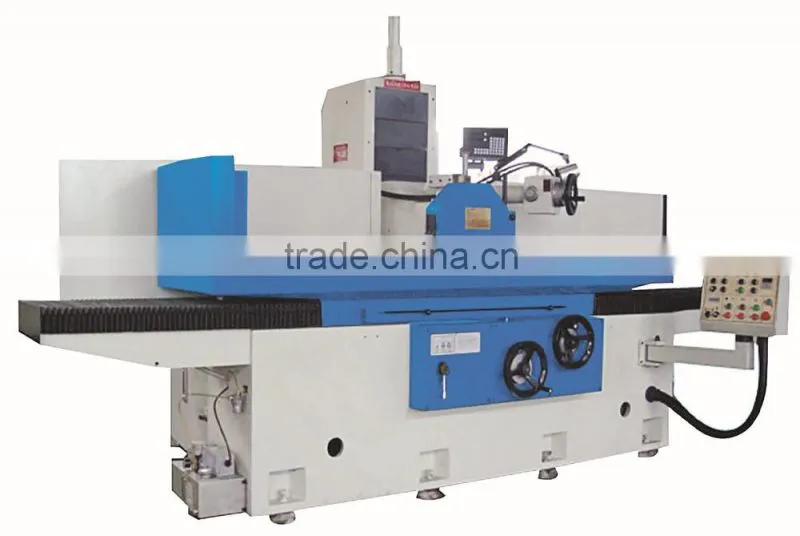

Large Size Surface Grinding Machine photo-1

US$ 30,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Shanghai Zhong Jing Imp. & Exp. Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 600mm

Max. Grinding Length 1500mm

Place of Origin Jiangsu, China

Brand Name surface grinding machine

Model Number KGS615

Voltage 380V

Power(W) 7.5kw

Weight 6250kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Suface Grinding Machine

Description for model:

H: X axis hydraulic
AH: X axis hydraulic, Y axis motorized
AHR: X axis hydraulic, Y axis motorized, rapid grinding head elevation
AHD: X axis hydraulic, Y axis motorized, rapid grinding head elevation, grinding head auto down feed.

Specification:

Models		KGS620AH/AHD	KGS615AH/AHD
Working surface of table (mm)		610x2000	600X1500
Max. table travel (mm)		2230	1600
Max. cross travel (mm)		660	660
Distance between table surface and spindle center (mm)		600	600
Max. table load (kg)		1500	800
T Slot (Number x Width) (mm)		3x16	3X16
Table speed (m/min)		7-25	5-25
Crossfeed handwheel (mm)	1 scale	0.02	0.02
Crossfeed handwheel (mm)	1 rev	5	5
Automatic crossfeed (mm)		0.5-20	0.5-12
Power cross feed (mm)	50Hz	1250	1250
Power cross feed (mm)	60Hz	1500	1500
Grinding wheel (mm)		355x(20-50)x127	355x50x127
Spindle speed (rpm)	50Hz	1450	1450
Spindle speed (rpm)	60Hz	1740	1740
Vertical handwheel (mm)	1 scale	0.002	0.002
Vertical handwheel (mm)	1 rev	0.5	0.5
Automatic down feed rate (mm)		0.005-0.04	0.005-0.04
Rapid speed of wheelhead (mm)		230	230
Spindle motor (kw)		7.5	7.5
Vertical motor (kw)		370	370
Hydraulic motor (kw)		5.5	5.5
Dust collection motor (kw)		550	550
Coolant motor (kw)		90	90
Crossfeed motor (kw)		370	370
Floor space (mm)		6200x2700	5810x2445
Packing dimensions (mm)		4000×2260×2250	4000×2260×2250
Net weight (kg)		8500	6250
Gross weight (kg)		9700	7250

Standard accessories:

Grinding wheel; Wheel flange; Wheel balancing base; Wheel balancing arbor; Extractor; Diamond dresser; Leveling pad; Anchor bolt; Tool box with tools

Optional accessories:
Permanent magnetic chuck; Tiltable permanent chuck; Electro-magnetic chuck; Demagnetizer; Overhead parallel dresser; Angle dresser; Radius dresser; Chuck control; Rapid elevation; Micro feed; Digital readout system; Rear splash guard; Suction device; Cooling & suction device; Magnetic separator; Cooling c/w magnetic paper filter.
