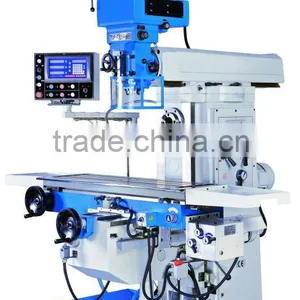

X6336 Universal Radial Milling Machine

Name: X6336 Universal Radial Milling Machine
Brand: milling machine
SKU: 115320045

US$ 8,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

milling machine

Shanghai Zhong Jing Imp. & Exp. Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name milling machine

Model Number X6336

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 4.0kw

Dimension(L*W*H) 2070x2020x1330mm

Weight 2200kg

Certification CE

Warranty 12months

After-sales Service Provided Overseas service center available

Specifications

milling machine
1.Rectangular table guideway
2. With vertial and horizontal milling function
3. CE standard

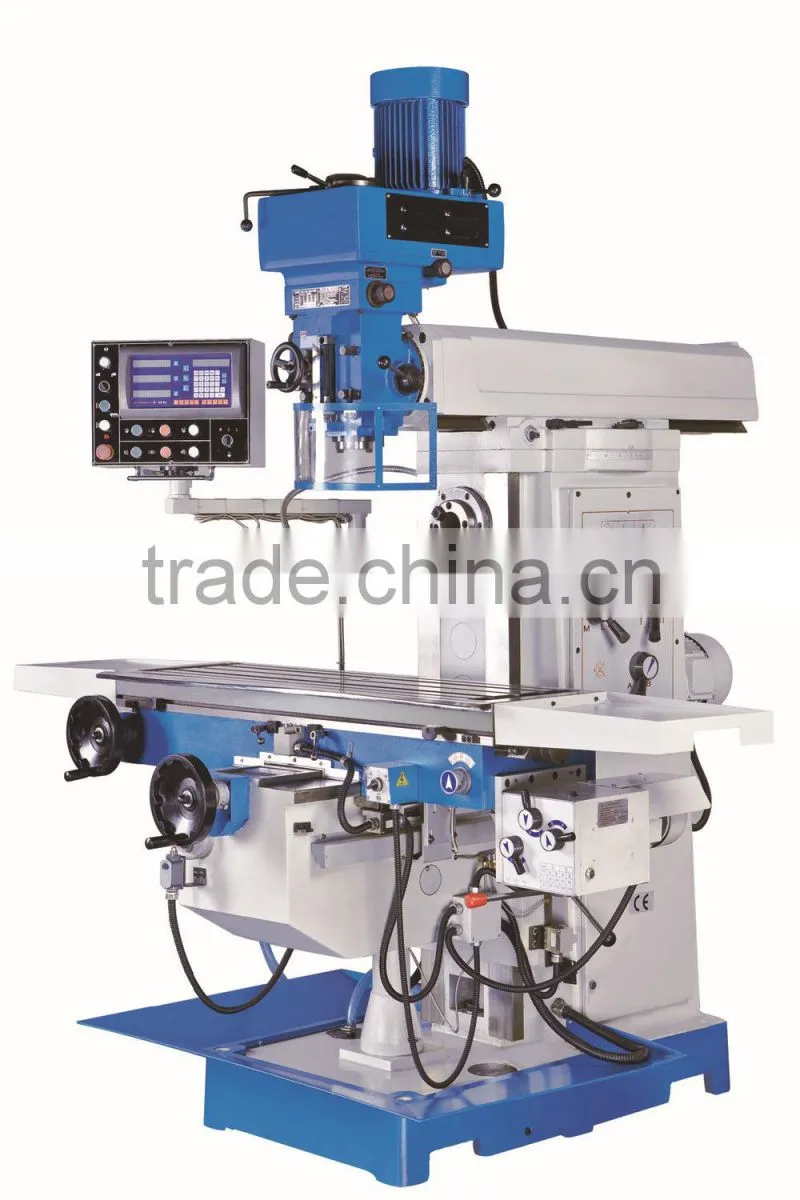

X6336 Universal radial milling machine

Feature:

1.Rectangular table guideway
2. With vertial and horizontal milling function
3. CE standard

4. Digital readout is supplied as optional

Specification:

Specifications	Units	X6336
Table size	mm	1320×360
Number/Width/Distance of T-slot	mm	3-18-80
Table travel	mm	980×300×450
Spindle taper		ISO40(V) / ISO50(H)
Spindle speed /steps	rpm	70-3620/10steps(V) / 58-1800/12steps(H)
Max. drilling dia.	mm	30
Max. end milling width	mm	125
Max. vertical milling dia.	mm	25
Max. tapping dia.	mm	M16
Quill travel	mm	140
Max. swivel angle of headstock		±45°
Vertical spindle axis to column surface	mm	150-550
Vertical spindle nose to table surface	mm	200-650
Horizontal spindle axis to table surface	mm	0-450
Longitudinal/transverse feed	mm/min	15-370 / 15-370 / 575
Spindle motor power	kW	3.7(V) 4.0(H)
Overall dimension	mm	2070×2020×2330
Machine weight	kg	2200
