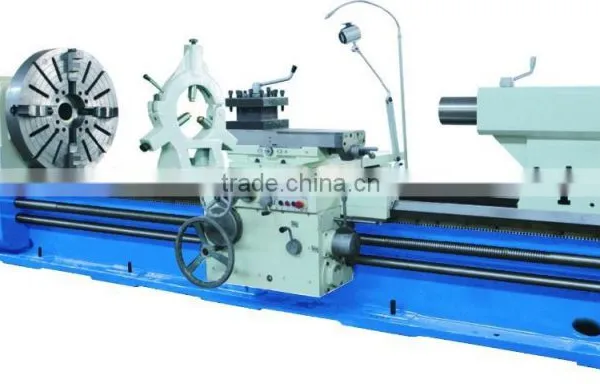

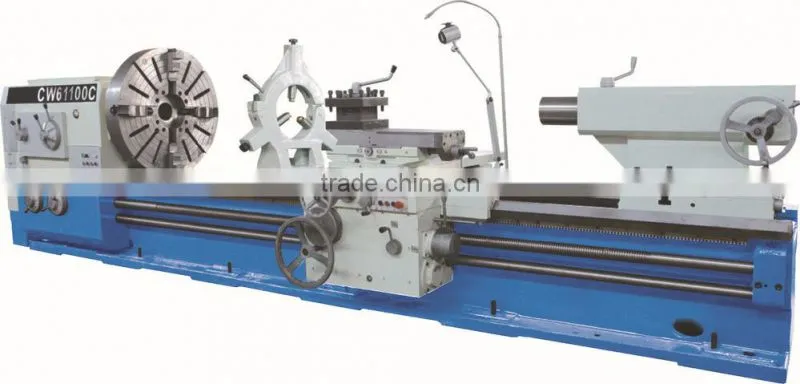

CW61100Cx8m Chinese big bore horizontal lathe machine
- 50 Set / Sets per Month
- Shanghai
- T/T
- Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Max. Swing Diameter: | 1000mm | Place of Origin: | Shanghai, China | ||
Brand Name: | big bore lathe machine | Model Number: | CW61100Cx8000 | Voltage: | 220-400V |
Power(W): | 22kw | Dimension(L*W*H): | 11000x1860x1700mm | Weight: | 16700kg |
Certification: | CE | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
lathe machine1. hardened guide way and gears
2. Rapid feed structure
3.Spindle is high in rigitidy and accuracy
Big bore Lathe machine
Feature:
1.The surface of the bedways is supersonic frequency hardened.
2.The spindle system is high in rigidity and accuracy.
3.Rapid feed structure is available on Apron.
4.Clutch in headstock makes the lathe start smoothly and brake quickly.
Specification:
ITEMS | CW61100C/ CW62100C |
Max. swing over bed | Ø1000 mm |
Max. swing over carriage | Ø600 mm |
*Over gap | Ø1380 mm |
Width of bed | 755mm |
*Effective length of gap | 590mm |
Max. length of work piece(two centers) | 8 m |
Max. turning length | 7.85m |
Max. Weight of work piece(between centers) | 5000Kg |
Spindle nose | A2-15 |
Spindle bore | Ø 130 mm |
Cone hole diameter and taper of spindle hole | Metric Φ140 1:20 |
Number of speeds | 24(Normal)12(Reverse) |
Spindle speed scope | 2.5~250r/min(Normal)3.15~250r/min(Reverse) |
Pitch of longitudinal ball screw/diameter | 12mm/ Ø70mm |
Number of cross feeds | 97 |
Feed range of tool post for per rev. of spindle(Longitudinal) | 0.1~12mm/r |
Feed range of tool post for per rev. of spindle(Cross) | 0.05~6mm/r |
Feed range of tool post for per rev. of spindle(middle tool post) | 0.025~3mm/r |
Rapid feed for Axis Z | 3740mm/minute |
Rapid feed for Axis X | 1870mm/minute |
Rapid feed for Axis middle tool post | 935mm/minute |
Thread cutting for Metric pitch threads(range/no.) | 1~120mm/45 |
Thread cutting for inch pitch threads(range/no.) | 30~1/4 TPI/42 |
Thread cutting for Module threads(range/no.) | 0.5~60mm/46 |
Thread cutting for D.P. threads(range/no.) | 1/2~60 DP/48 |
Vertical distance from spindle center to installing basis | 41 mm |
Size of tool shank | 40×40mm |
Max. travel of cross slide | 720mm |
Swing angle of tool post | ±90° |
Max. travel of middle tool post | 260mm |
Max. travel of top slide | 200mm |
Tailstock taper of bore | M.T.No.6 |
Tailstock sleeve travel | 300mm |
Tailstock sleeve dia. | Ø 160mm |
Power of main motor | 22 KW |
Rapid feed motor power | 1.5 KW |
Power of cooling pump | 0.25 KW |
Overall dimensions(L×W×H) | 9000×1860×1700 mm |
Net weight | 16700 Kg |
Note : The items with “*” are only for 62 series. |
Standard accessories:
-1000mm 4-jaw chuck
-M.T. 6
-Wrenches
-M.T.6 Morse reduction Metric 80/M.T.6
-M.T6 Morse reduction Metric 140/M.T. 6
-Operation manual
Optional accessories
-1250mm 4-jaw chuck
-Follow rest
-Steady rest
