KC6S-SIEG CNC LATHE MACHINE
- 100 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 250mm | Place of Origin: | Shanghai, China |
Brand Name: | OEM | Model Number: | KC6S-SIEG | Voltage: | 220V/110V |
Power(W): | 1000W | Dimension(L*W*H): | 1460x760x1450mm | Weight: | 360kg |
Certification: | CE | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
CNC Lathe Machine1. Auto 4 position tool post
2.One shot oil lubrication
3.3000rpm spindle speed
4. CE standard
KC6S Pro CNC Lathe
Technical Specification
WORKING AREA | Turning diameter over bed(max) | 250mm |
Travel across slide | 110mm | |
Center width | 450mm | |
SPINDLE | Chuck diameter | 125mm |
Spindle speed | 100-3000r/min | |
Spindle through-hole | 20mm | |
Spindle mount | MT3 | |
Spindle motor power | 1000W | |
FEED | X travel | 180mm |
Z travel | 320mm | |
The max moving speed | 2000mm/min | |
The max feeding speed | 500mm/min | |
Motor | 4N/m | |
TOOL REST | Tool position | 4 |
Tool dimension | 10×10mm | |
TAILSTOCK | Tailstock taper | MT2 |
Tailstock sleeve diameter | 17mm | |
Travel of tailstock | 50mm | |
ACCURACY | Positioning accuracy | 0.015mm |
Repeatability accuracy | 0.01mm | |
OTHERS | Power | 220V |
Weight(NW/GW) | 360/410kg | |
Dimension | 1460×760×1450/1630×1070×1685 |
Successful cases:
KC6S-SIEG is one of the most popular products in educational market:
It's very popular in Chinese educational market/ Europe/Korea/Asia....
Here is the link from our dealers:
England : .uk/axminster-sieg-kc6s-cnc-lathe-prod866638/
Korea : /v2/product_view.html?pcode=kc-6s
More details for your reference:

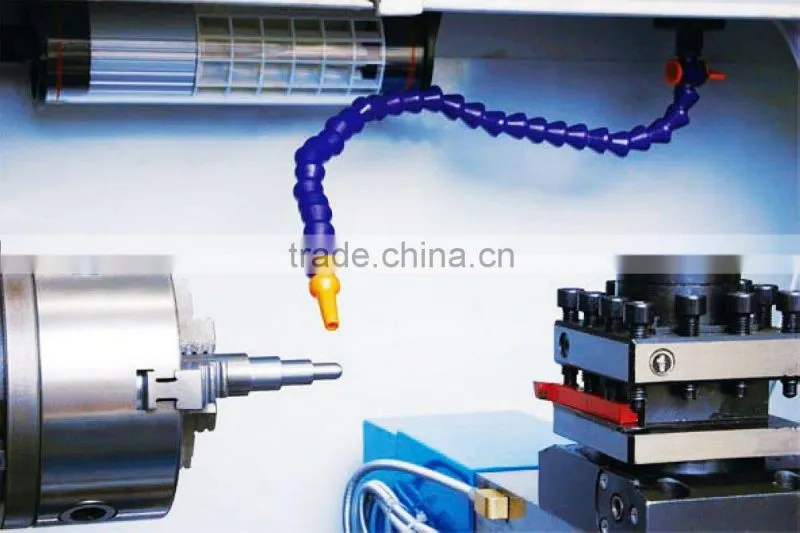

MT3 Spindle, 3000rpm.Coolant system is optional

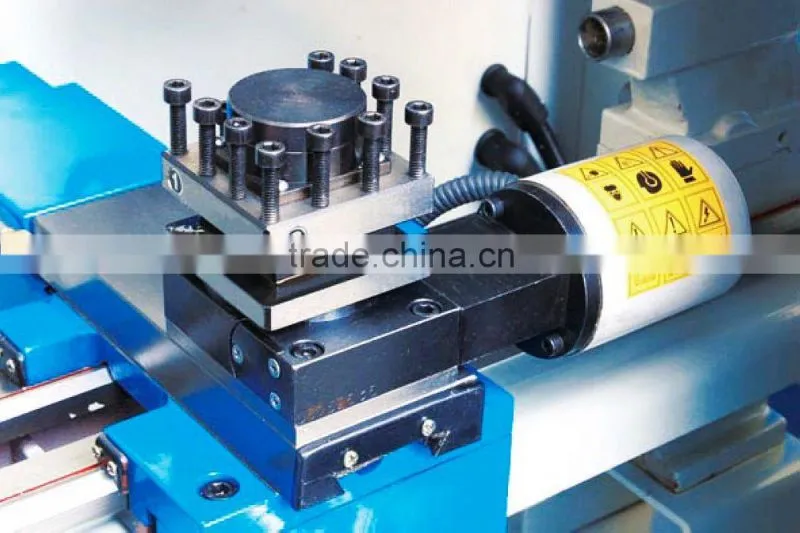

4 ATC makes CNC works colorful

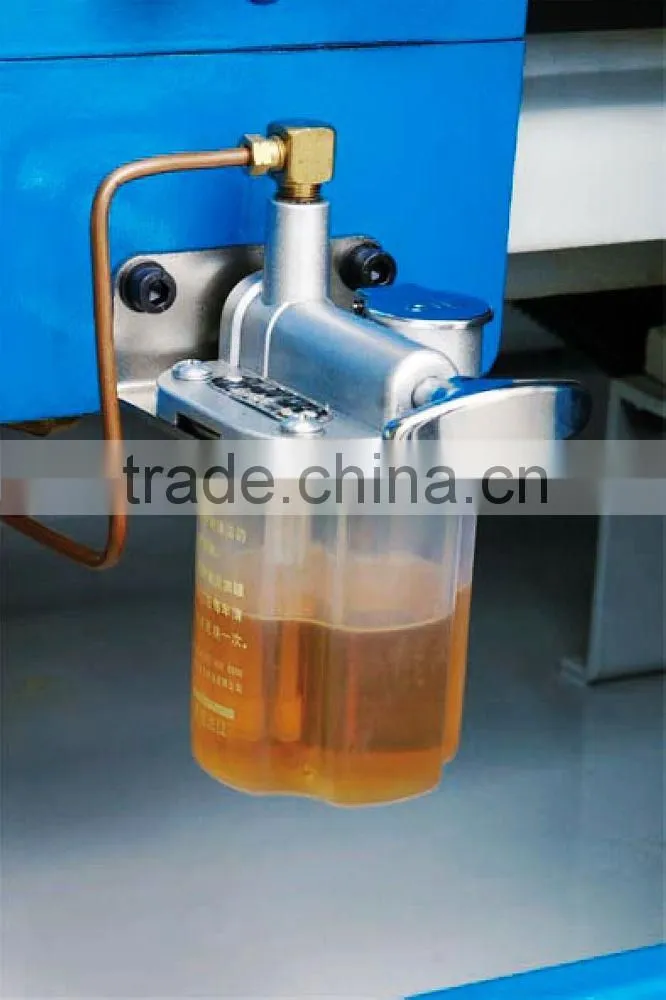

You could use Lubrication system by hand

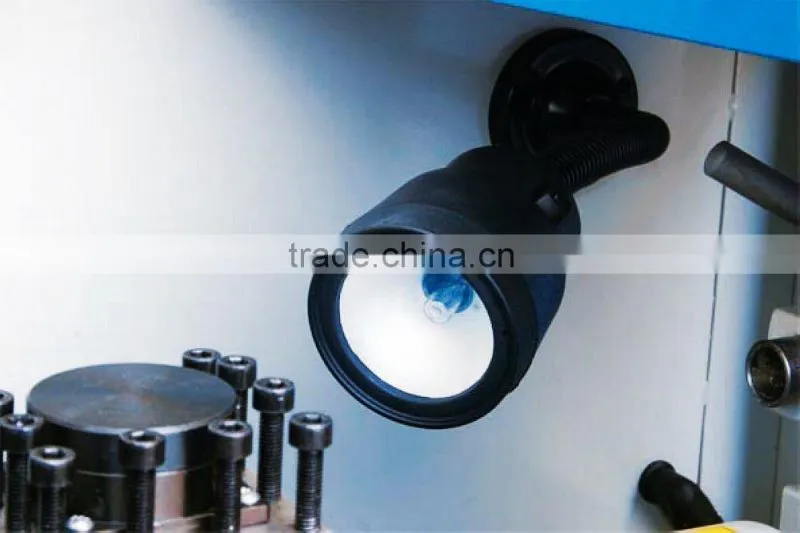

Update to LED light

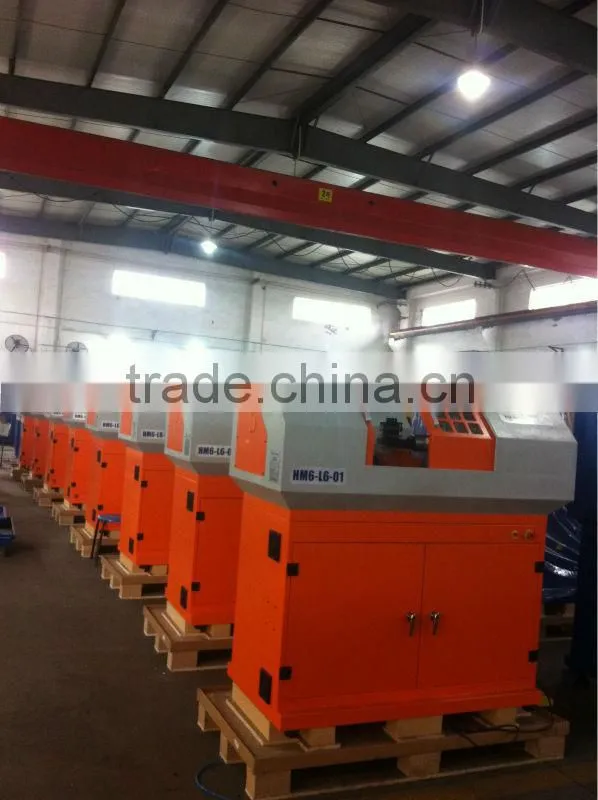

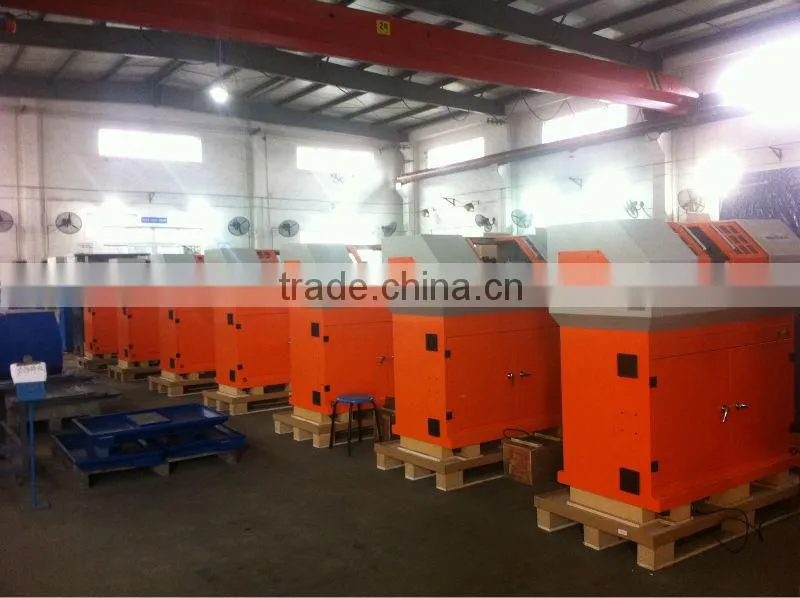

Lots of KC6S-SIEG,waiting for shippment

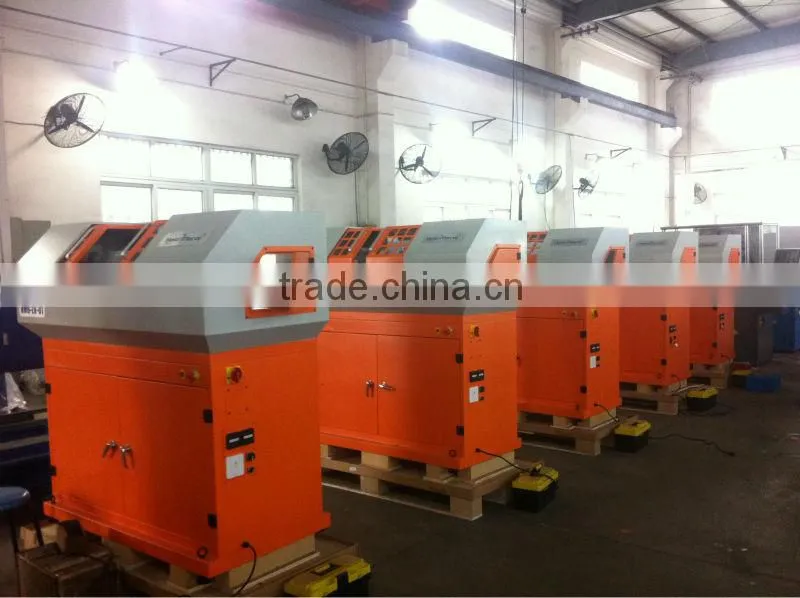

Will deliver to Chinese schools
You could choose your own color

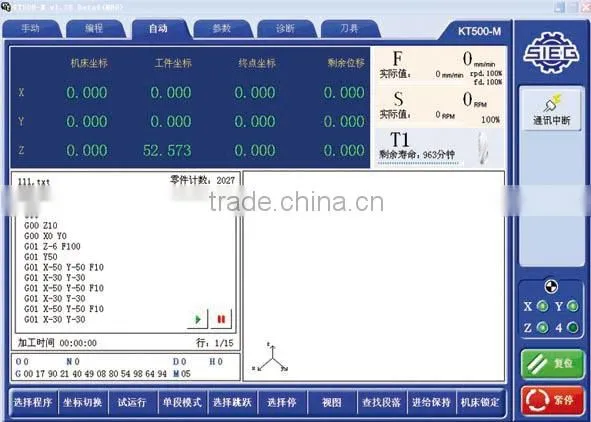

SIEG software,easy to operate
