Help CenterMud Suction Hose
Related Products
Dock Hose 225PSI
APPLICATION:
Built with a corrugated cover to provide flexibility in petroleum transfer service. A variety of tube compounds are available to tailor the chemical and hydrocarbon resistance of the hose to the type of material handled.
CONSTRUCTION:
Tube: Nitrile synthetic rubber for up to 50% aromatics.
Cover: Black synthetic cover, corrugated, wrapped finish
Reinforcement: Spiral-plied heavy-duty synthetic fabric with double wire helix
Temperature: -25°F to 200°F (-32°C to 93°C)
COUPLING
Coupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole patterns, materials and floating flanges on request. Swage nipples are offered up to 10". Hose assembly is electrically continuous unless otherwise specified by customer.
ID |
OD |
MAX. WP |
BEND RADIUS |
VACUUM HG |
WEIGHT |
||||||
in. |
mm. |
in. |
mm. |
psi |
Mpa |
in. |
mm. |
in. |
mm. |
lb./ft. |
kg./m. |
3 |
76.2 |
3.89 |
98.8 |
225 |
1.55 |
11 |
279 |
29 |
737 |
3.28 |
4.88 |
4 |
101.6 |
5.29 |
134.4 |
225 |
1.55 |
15 |
381 |
29 |
737 |
6.30 |
9.38 |
6 |
152.4 |
7.34 |
186.4 |
225 |
1.55 |
22 |
559 |
29 |
737 |
9.50 |
14.14 |
8 |
203.2 |
9.43 |
239.5 |
225 |
1.55 |
30 |
762 |
29 |
737 |
13.81 |
20.55 |
10 |
254.0 |
11.63 |
295.4 |
225 |
1.55 |
40 |
1016 |
29 |
737 |
20.49 |
30.49 |
12 |
304.8 |
13.72 |
348.5 |
225 |
1.55 |
60 |
1524 |
29 |
737 |
25.13 |
37.40 |
Note: Working pressure 300PSI is available
Hot Tar & Asphalt
APPLICATION:
Designed for petroleum-based products up to 350°F between docks and tankers or barges under heavy-duty conditions.
CONSTRUCTION:
Tube: Nitrile synthetic rubber, flat steel wire helix supporting the tube
Cover: synthetic rubber
Reinforcement: Spiral-plied synthetic fabric with wire helix
Temperature: -25°F to 350°F (-32°C to 177°C)
COUPLING
Coupled with galvanized built-in steel nipple/150#RFSO flanges. Available in other bolt hole patterns, materials and floating flanges on request. Smooth bore assembly is electrically continuous unless otherwise specified by customer.
ID |
OD |
MAX. WP |
BEND RADIUS |
VACUUM HG |
WEIGHT |
||||||
in. |
mm. |
in. |
mm. |
psi |
Mpa |
in. |
mm. |
in. |
mm. |
lb./ft. |
kg./m. |
4 |
101.6 |
5.28 |
134.1 |
225 |
1.55 |
36 |
914 |
29 |
737 |
6.48 |
9.64 |
6 |
152.4 |
7.72 |
196.1 |
225 |
1.55 |
48 |
1219 |
29 |
737 |
13.83 |
20.58 |
8 |
203.2 |
9.80 |
248.9 |
225 |
1.55 |
60 |
1524 |
29 |
737 |
19.11 |
28.44 |
10 |
254.0 |
11.80 |
299.7 |
225 |
1.55 |
80 |
2032 |
29 |
737 |
23.20 |
34.52 |
Dock Return Hose
APPLICATION:
For use in the recovery of petroleum vapors during the transfer of petroleum-based products, Cooling Water, Exaust Gasses between docks and tankers or barges.
CONSTRUCTION:
Tube: Nitrile synthetic rubber, flat steel wire helix supporting the tube
Cover: synthetic rubber
Reinforcement: Synthetic fabric plies plus two (2) wire helix
Temperature: -25°F to 200°F (-32°C to 93°C)
COUPLING
Coupled with galvanized built-in steel nipple/150#RFSO flanges. Available in other bolt hole patterns, materials and floating flanges on request. Smooth bore assembly is electrically continuous unless otherwise specified by customer.
I.D |
0.D |
BEND RADIUS |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
VACUUM |
|||||
(in) |
(mm) |
(In) |
(mm) |
(in) |
(mm) |
(psi) |
(bar) |
(lb/ft) |
(kg/m) |
|
5 |
127 |
5 3/4 |
146 1/20 |
20 |
508 |
75 |
5.17 |
4.00 |
2.69 |
FULL |
6 |
152.4 |
6 3/4 |
171 9/20 |
24 |
609.6 |
65 |
4.48 |
4.60 |
3.09 |
FULL |
8 |
203.2 |
8 7/8 |
225 17/40 |
36 |
914.4 |
50 |
3.45 |
6.80 |
4.57 |
FULL |
10 |
254 |
10 7/8 |
276 9/40 |
48 |
1219.2 |
40 |
2.76 |
10.30 |
6.92 |
FULL |
SLURRY HOSE
Application: Primarily designed for handling abrasive slurries in mines and quarries. Can also be used for dry material handling of sand,gravel,grain,slag,
and other such materials. External re-usable bolt on flanges allow for ease of installation,and uninterrupted free flow.
Cover: Think black corrugated abrasion and weather resistant synthetic blend. Specially compounded to stand up to heavy abuse in mines and quarries.
Reinforcement:Multiple layers of high tensile synthetic cords enveloping an extra heavy duty wire helix.
Tube:Ultra high quality blended rubber tube:3/8'' thick red tube.
Temperature:-40°F to+180°F.(-40°C to +82°C )
Nom.I.D |
Nom.O.D |
Vacuum |
Bend Radius |
W.p |
Weight |
||||||
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(psi) |
(mpa) |
(lbs/ft) |
(kg/m) |
3'' |
76 |
4.49'' |
114.05 |
30'' |
762.00 |
14.00'' |
355.60 |
150 |
1.03 |
4.55 |
6.72 |
4'' |
102 |
5.27'' |
129.16 |
30'' |
762.00 |
18.00'' |
457.20 |
150 |
1.03 |
5.23 |
7.72 |
5'' |
127 |
6.45'' |
163.83 |
30'' |
762.00 |
24.00'' |
609.60 |
150 |
1.03 |
6.55 |
9.67 |
6'' |
152 |
7.48'' |
190.00 |
30'' |
762.00 |
28.00'' |
711.20 |
150 |
1.03 |
8.90 |
13.14 |
8'' |
203 |
9.53'' |
242.06 |
30'' |
762.00 |
48.00'' |
1219.20 |
150 |
1.03 |
13.24 |
19.55 |
10'' |
254 |
11.49'' |
291.85 |
30'' |
762.00 |
60.00'' |
1524.00 |
150 |
1.03 |
15.07 |
22.25 |
12'' |
304 |
13.74'' |
349.00 |
30'' |
762.00 |
90.00'' |
2286.00 |
150 |
1.03 |
21.77 |
32.14 |
Concrete Pumping Hose
High pressure hose designed to handle the pumping of concrete, plaster or grout mixture. All purpose cover provides excellent flexibility and wear resistance to abrasive slurries.
Construction:
Tube: Abrasion resistant static dissipating SBR
Reinforcement: 4 plies polyester tire cord
Cover: Black EPDM/SBR
Temperature: -20°F to +160°F(-28°C to +71°C)
ID |
NOM. OD |
MAX. WP |
BEND RADIUS |
WEIGHT |
|||||
in. |
mm. |
in. |
mm. |
psi |
Mpa |
in. |
mm. |
lb./ft. |
kg./m. |
2 |
50.8 |
3.01 |
76.4 |
1233 |
8.5 |
9 |
275 |
2.75 |
4.10 |
2-1/2 |
63.5 |
3.50 |
88.9 |
1233 |
8.5 |
12 |
300 |
3.28 |
4.92 |
3 |
76.2 |
3.98 |
101.3 |
1233 |
8.5 |
14 |
350 |
3.80 |
5.65 |
4 |
101.6 |
5.02 |
127.4 |
1233 |
8.5 |
16 |
400 |
4.90 |
7.29 |
5 |
127.0 |
6.00 |
152.5 |
1233 |
8.5 |
20 |
500 |
5.98 |
8.90 |
6 |
152 |
7.25 |
184 |
1233 |
85 |
25 |
627 |
9.15 |
13.50 |
Note: Working Pressure 800PSI is available, or others could be customed.

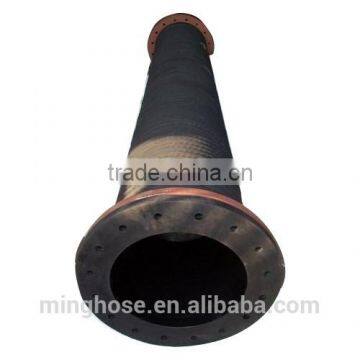

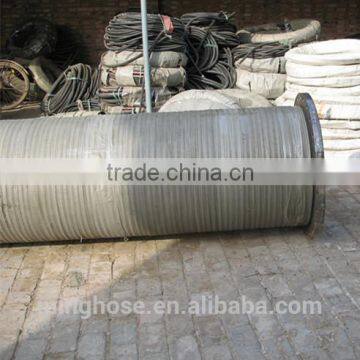

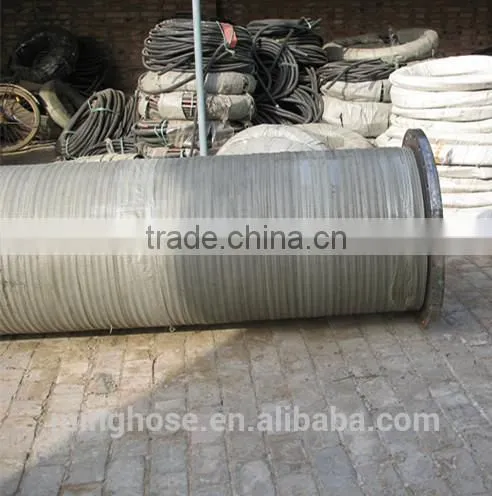

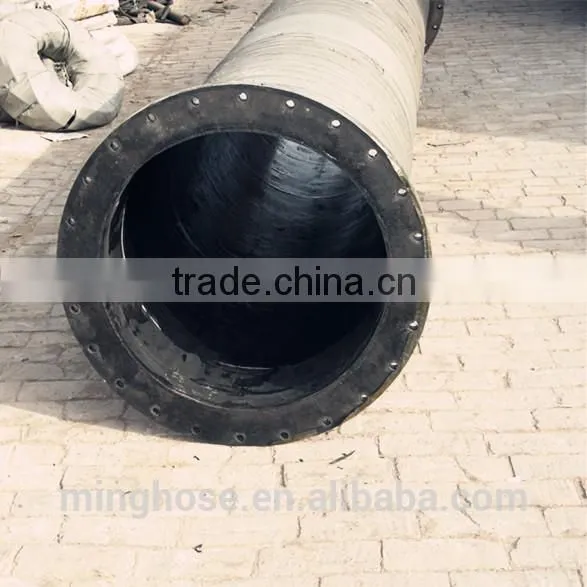

MUD SUCTION HOSE
Flexible connection between slush pumping and mud to absorb vibration during rotary well drilling.
Wire helix design provides full vacuum capabilities.
Cover is oil, cut ,stuff and ozone resistant.
Tube: Specially compounded Nitrile.
Reinforcement: High strength tire cord with steel wire helix.
Cover: Oil resistant synthetic rubber.
Temperature: -40°F to+180°F.(-40°C to +82°C )
I.D |
0.D |
BEND RADIUS |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
VACUUM |
|||||
(in) |
(mm) |
(In) |
(mm) |
(in) |
(mm) |
(psi) |
(bar) |
(lb/ft) |
(kg/m) |
|
4 |
101.6 |
5 |
127 |
24 |
609.6 |
100 |
6.90 |
4.70 |
3.16 |
FULL |
6 |
152.4 |
7 1/8 |
181 |
36 |
914.4 |
100 |
6.90 |
8.50 |
5.71 |
FULL |
8 |
203.2 |
9 1/4 |
235 |
48 |
1219.2 |
100 |
6.90 |
12.80 |
8.60 |
FULL |
10 |
254 |
11 3/8 |
289 |
60 |
1524 |
100 |
6.90 |
19.50 |
13.10 |
FULL |
12 |
304.8 |
13 3/8 |
340 |
72 |
1829 |
100 |
6.90 |
24.80 |
16.66 |
FULL |
DRY CEMENT DISCHARGING HOSE -1/8” SBR TUBE
low pressure material transfer hose designed for discharge service of dry cement and powered abrasive materials.
Lightweight construction provides superior flexibility without sacrificing quality.
Premium grade cover resists cuts,scuff,and ozone attack .
Tube: 1/8” Extruded SBR.
Reinforcement: Synthetic, High tensile textile
Cover: Black SBR
Temperature:-40°F to + 150°F.(-40°C to +66°C)
Coupling: Hammer Union, Tank Union, etc. Hose assembly is electrically continuous unless otherwise specified by customer.
I.D |
0.D |
REINFORCEMENT |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
||||
(in) |
(mm) |
(In) |
(mm) |
(psi) |
(bar) |
(lb/ft) |
(kg/m) |
|
4 |
101.6 |
4 1/2 |
114.3 |
2piles |
65 |
4.48 |
1.49 |
1.00 |
4 1/2 |
114.3 |
5 |
127 |
2piles |
65 |
4.48 |
1.67 |
1.12 |
5 |
127152.4 |
5 1/2 |
139.7 |
2piles |
65 |
4.48 |
1.84 |
1.24 |
6 |
|
6 1/2 |
165.1 |
2piles |
65 |
4.48 |
2.24 |
1.50 |
MUD SUCTION HOSE
Flexible connection between slush pumping and mud to absorb vibration during rotary well drilling.
Wire helix design provides full vacuum capabilities.
Cover is oil, cut ,stuff and ozone resistant.
Tube: Specially compounded Nitrile.
Reinforcement: High strength tire cord with steel wire helix.
Cover: Oil resistant synthetic rubber.
Temperature: -40°F to+180°F.(-40°C to +82°C )
I.D |
0.D |
BEND RADIUS |
WORKING PRESSURE PSI |
WEIGHT LB/FT |
VACUUM |
|||||
(in) |
(mm) |
(In) |
(mm) |
(in) |
(mm) |
(psi) |
(bar) |
(lb/ft) |
(kg/m) |
|
4 |
101.6 |
5 |
127 |
24 |
609.6 |
100 |
6.90 |
4.70 |
3.16 |
FULL |
6 |
152.4 |
7 1/8 |
181 |
36 |
914.4 |
100 |
6.90 |
8.50 |
5.71 |
FULL |
8 |
203.2 |
9 1/4 |
235 |
48 |
1219.2 |
100 |
6.90 |
12.80 |
8.60 |
FULL |
10 |
254 |
11 3/8 |
289 |
60 |
1524 |
100 |
6.90 |
19.50 |
13.10 |
FULL |
12 |
304.8 |
13 3/8 |
340 |
72 |
1829 |
100 |
6.90 |
24.80 |
16.66 |
FULL |

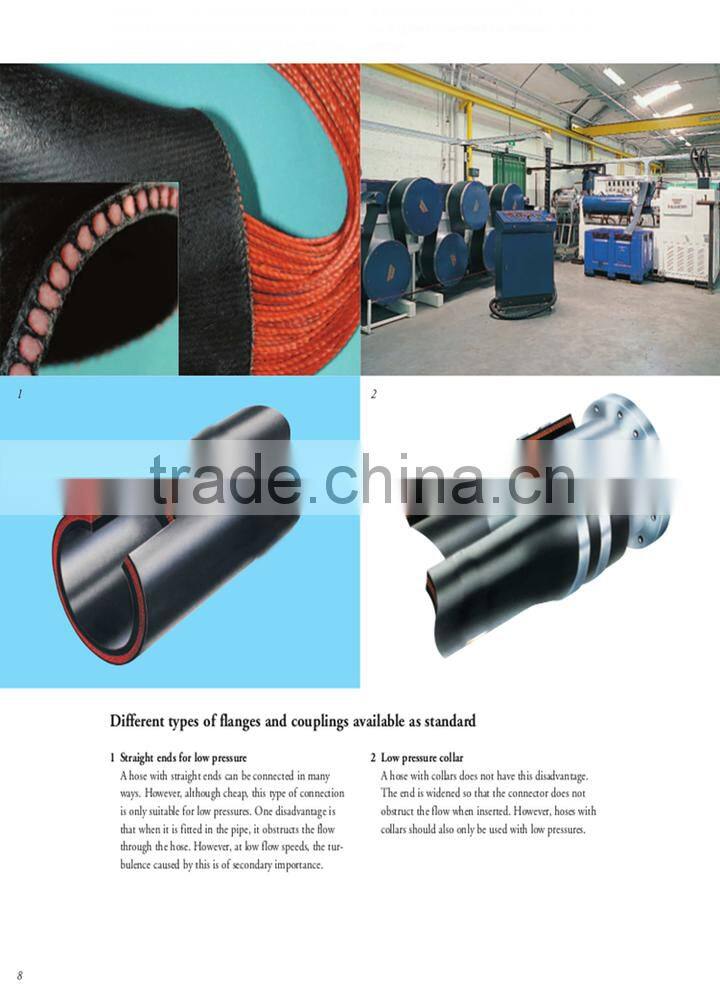

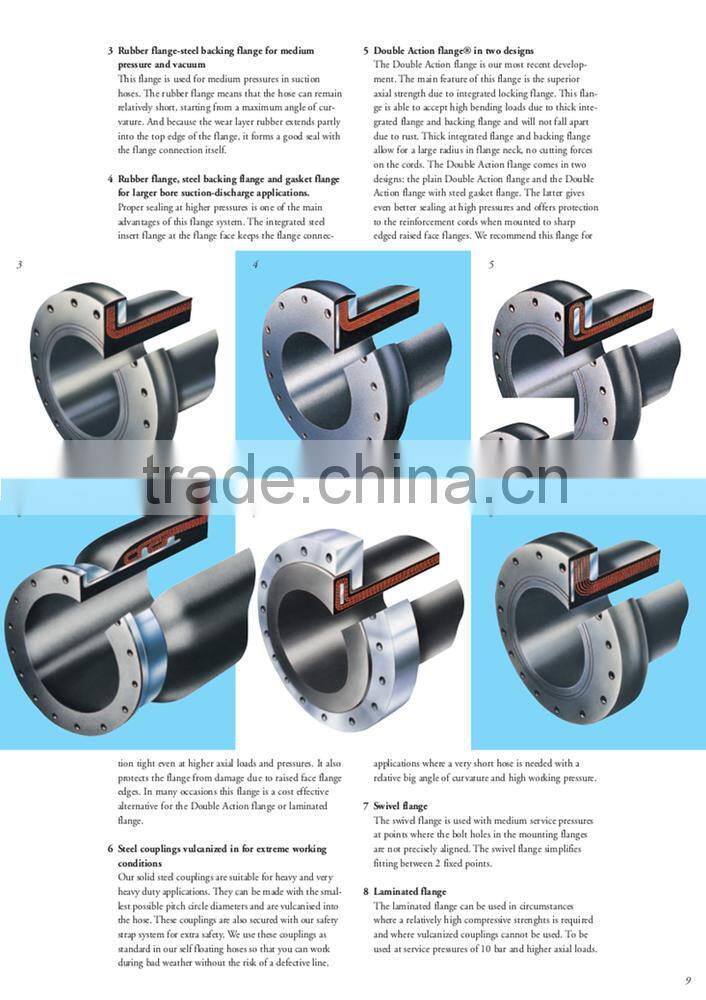

End Fitting Options
