Oil Suction and Delivery Hose

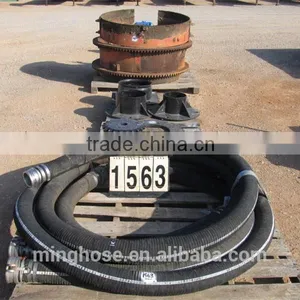

Oil Suction and Delivery Hose thumbnail-1

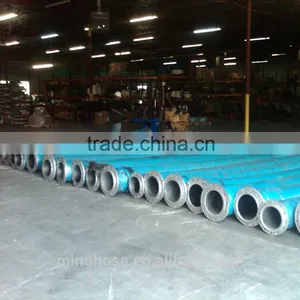

Oil Suction and Delivery Hose thumbnail-2
Oil Suction and Delivery Hose photo-1

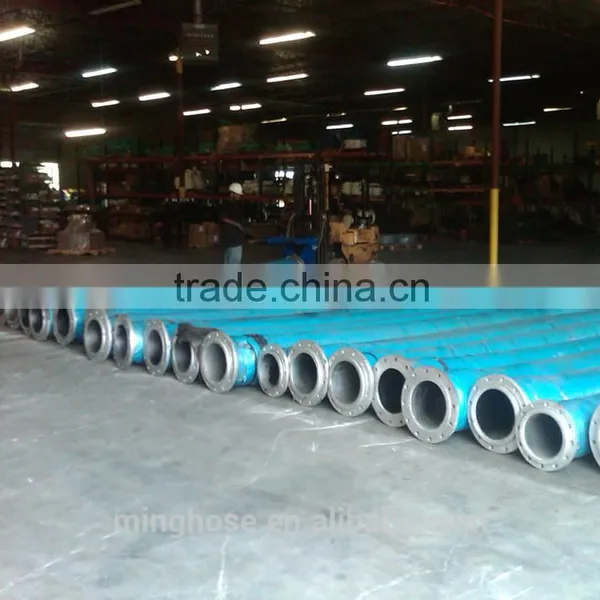

Oil Suction and Delivery Hose photo-2
US$ 13.39 - 95.29 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Minghose
Model Number:
OSDH90
Contact Supplier Request Quote Chat Now
Hengshui Ruiming Rubber Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Minghose
Model Number OSDH90



Product Description



Oil Suction and Delivery Hose



1.Application:
Oil Suction and Discharge Hose is designed for sucking and conveying most commercial gasoline,LP gas, crude oil, diesel fuels, and other petroleum products where heavy duty diameter hose is required. Suction and Discharge Service both are available. Max aromatic content 50%

2. Characteristics:
The hose has the double properties of bearing both the positive and negative pressures,can be used normally under the pressure of-80kpa(600mm mercury)at the vacuum.The hose can't become flat under pressure,and can't off from it's layer,and has good bending property the body is solid and is capable of adapting to working conditions

 3. Construction:
Tube : Synthetic rubber resisting the deteriorating effects of petroleum products, not discolor fluids.
Reinforcement : multiple high strength tire cords (or with round steel wire which helixed in rubber) with internal static copper wire
Cover : Oil and Abrasion and weather resistant synthetic rubber . Corrugated Cover
Hose end: With optional Metal flange joints or Cam lock couplings with hose clamps .



Oil Suction Hose

Nominal
Hose I.D.

Nominal
Hose O.D.

Working
Pressure

Burst
Pressure

Inch

mm

mm

Bar

psi

Bar

psi

4

101.6

118.0

10

150

30

450

4-1/2

114.3

130.0

6

90

18

270

5

127.0

143.0

6

90

18

270

6

152.0

170.0

6

90

18

270

6-5/8

168.0

186.0

6

90

18

270

8

203.2

223.0

6

90

18

270

8-5/8

219.0

237.0

6

90

18

270

10

254.0

278.0

6

90

18

270

12

304.0

328.0

6

90

18

270

Oil Discharge Hose

Nominal
Hose I.D.

Nominal
Hose O.D.

Working
Pressure

Burst
Pressure

Inch

mm

mm

Bar

psi

Bar

psi

4

101.6

116.0

10

150

30

450

4-1/2

114.3

129.0

5

75

15

225

5

127.0

142.0

5

75

15

225

6

152.0

166.0

5

75

15

225

6-5/8

168.0

183.0

5

75

15

225

8

203.2

219.0

5

75

15

225

8-5/8

219.0

235.0

5

75

15

225

We can also manufacture other specification (working pressure/ inside diameter/ working temperature ) accorading customers requirement.







 Dock Hose 225PSI



APPLICATION:

Built with a corrugated cover to provide flexibility in petroleum transfer service. A variety of tube compounds are available to tailor the chemical and hydrocarbon resistance of the hose to the type of material handled.



CONSTRUCTION:

Tube: Nitrile synthetic rubber for up to 50% aromatics.

Cover: Black synthetic cover, corrugated, wrapped finish

Reinforcement: Spiral-plied heavy-duty synthetic fabric with double wire helix

Temperature: -25°F to 200°F (-32°C to 93°C)



COUPLING

Coupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole patterns, materials and floating flanges on request. Swage nipples are offered up to 10". Hose assembly is electrically continuous unless otherwise specified by customer.



 ID

OD

MAX. WP

BEND RADIUS

VACUUM HG

WEIGHT

in.

mm.

in.

mm.

psi

Mpa

in.

mm.

in.

mm.

lb./ft.

kg./m.

3

76.2

3.89

98.8

225

1.55

11

279

29

737

3.28

4.88

4

101.6

5.29

134.4

225

1.55

15

381

29

737

6.30

9.38

6

152.4

7.34

186.4

225

1.55

22

559

29

737

9.50

14.14

8

203.2

9.43

239.5

225

1.55

30

762

29

737

13.81

20.55

10

254.0

11.63

295.4

225

1.55

40

1016

29

737

20.49

30.49

12

304.8

13.72

348.5

225

1.55

60

1524

29

737

25.13

37.40

Note: Working pressure 300PSI is available









Concrete Pumping Hose

High pressure hose designed to handle the pumping of concrete, plaster or grout mixture. All purpose cover provides excellent flexibility and wear resistance to abrasive slurries.



Construction:

Tube: Abrasion resistant static dissipating SBR

Reinforcement: 4 plies polyester tire cord



Cover: Black EPDM/SBR

Temperature: -20°F to +160°F(-28°C to +71°C)





 ID

NOM. OD

MAX. WP

BEND RADIUS

WEIGHT

in.

mm.

in.

mm.

psi

Mpa

in.

mm.

lb./ft.

kg./m.

2

50.8

3.01

76.4

1233

8.5

9

275

2.75

4.10

2-1/2

63.5

3.50

88.9

1233

8.5

12

300

3.28

4.92

3

76.2

3.98

101.3

1233

8.5

14

350

3.80

5.65

4

101.6

5.02

127.4

1233

8.5

16

400

4.90

7.29

5

127.0

6.00

152.5

1233

8.5

20

500

5.98

8.90

6

152

7.25

184

1233

85

25

627

9.15

13.50

Note: Working Pressure 800PSI is available, or others could be customed.











MUD SUCTION HOSE



Flexible connection between slush pumping and mud to absorb vibration during rotary well drilling.

Wire helix design provides full vacuum capabilities.

Cover is oil, cut ,stuff and ozone resistant.





Tube: Specially compounded Nitrile.

Reinforcement: High strength tire cord with steel wire helix.

Cover: Oil resistant synthetic rubber.

Temperature: -40°F to+180°F.(-40°C   to +82°C )





I.D

0.D

BEND  RADIUS

WORKING PRESSURE PSI

WEIGHT LB/FT

VACUUM

(in)

(mm)

(In)

(mm)

(in)

(mm)

(psi)

(bar)

(lb/ft)

(kg/m)

4

101.6

5

127

24

609.6

100

6.90

4.70

3.16

FULL

6

152.4

7 1/8

181

36

914.4

100

6.90

8.50

5.71

FULL

8

203.2

9 1/4

235

48

1219.2

100

6.90

12.80

8.60

FULL

10

254

11 3/8

289

60

1524

100

6.90

19.50

13.10

FULL

12

304.8

13 3/8

340

72

1829

100

6.90

24.80

16.66

FULL









End Fitting Options

End Fitting Options



Dock Hose 225PSI



APPLICATION:

Built with a corrugated cover to provide flexibility in petroleum transfer service. A variety of tube compounds are available to tailor the chemical and hydrocarbon resistance of the hose to the type of material handled.



CONSTRUCTION:

Tube: Nitrile synthetic rubber for up to 50% aromatics.

Cover: Black synthetic cover, corrugated, wrapped finish

Reinforcement: Spiral-plied heavy-duty synthetic fabric with double wire helix

Temperature: -25°F to 200°F (-32°C to 93°C)



COUPLING

Coupled with standard built-in steel nipple/150#RFSO flanges. Available in other bolt hole patterns, materials and floating flanges on request. Swage nipples are offered up to 10". Hose assembly is electrically continuous unless otherwise specified by customer.



 ID

OD

MAX. WP

BEND RADIUS

VACUUM HG

WEIGHT

in.

mm.

in.

mm.

psi

Mpa

in.

mm.

in.

mm.

lb./ft.

kg./m.

3

76.2

3.89

98.8

225

1.55

11

279

29

737

3.28

4.88

4

101.6

5.29

134.4

225

1.55

15

381

29

737

6.30

9.38

6

152.4

7.34

186.4

225

1.55

22

559

29

737

9.50

14.14

8

203.2

9.43

239.5

225

1.55

30

762

29

737

13.81

20.55

10

254.0

11.63

295.4

225

1.55

40

1016

29

737

20.49

30.49

12

304.8

13.72

348.5

225

1.55

60

1524

29

737

25.13

37.40

Note: Working pressure 300PSI is available
