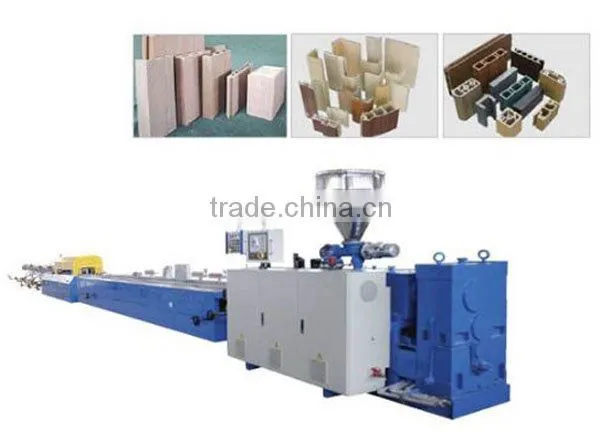

CE Approved Pvc Window and Door Profile Production Line

Name: CE Approved Pvc Window and Door Profile Production Line
Brand: CHICHENG
SKU: 115299771

US$ 45,110 - 52,150 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

CHICHENG

Suzhou New Chicheng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name CHICHENG

Model Number SJSZ

Certification CE

Specifications

pvc window and door profile production line
1.PVC profile extruding
2.100kg/h
3.Steady performance
4.ISO9001:2008 &CE,SGS

pvc window and door profile production line

Main technical parameter:

1. Conical twin-screw extruder SJSZ51/105

Screw diameter	51mm
L/D	25:1
Efficient length	1070mm
Motor power	18.5kw
Rotating speed of screw	1-32rpm
Heating power	12kw
Extrusion capacity	50-100kg/h
Center height	1000mm
Main Extruder speed adjusting way	Frequency conversion(Fuji inverter)
Feeding extruder speed adjusting way	Frequency conversion (Fuji inverter)
Barrel temperature adjusting way	Heating: cast aluminum heater Cooling: 3 sections cooling by air
Main electric component	SIEMENS/Schneider
Temperature controller	OMRON/RKC
Weight	2300kg
Figure dimension	3500 x 1400 x 2300mm
Material of screw and barrel	38CrMoAlA Azotizing on surface 0.4~0.7mm Rigidity: above 700 HV
Drive way	Hard tooth face gearbox
Vacuum exhaust system	1.5 kw watering

2. Stainless steel vacuum calibrating platform

Vacuum pump	4kw x 2
Water pump	4kw x 1
Lengthways motor	1.1kw cycloid and pin gear type
Vacuum quickly change fittings	20pcs.
Cooling water quickly change fittings	20pcs.
Adjusting manner	Tri-dimension adjusting
Calibrating platform guideway material and manner	Stainless steel, aluminum guideway
Vacuum rate	0-0.09Mpa
Lifting table’s adjusting manner	By hand
Dimension	4000 x 1100 x 1400mm

3.Caterpillar haul-off machine

Traction speed	0.3-3 m/min
Power of traction motor	3 kw
Effective length of drive	1200 mm
Timing method of drive motor	Frequency conversion (Fuji inverter)
Center height	1000 mm
Air pressure	≥0.6 MPa
Dimension	1600 x 800 x 1400 mm
