PVC Profile Production Line
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | CHICHENG | Model Number | SJZ | |
| Certification | CE |
Product Description
Specifications
PVC profile production line1.Main machine :Twin screw extruder.
2.Siemens PLC control system .
3.High output :80-600kg/h.

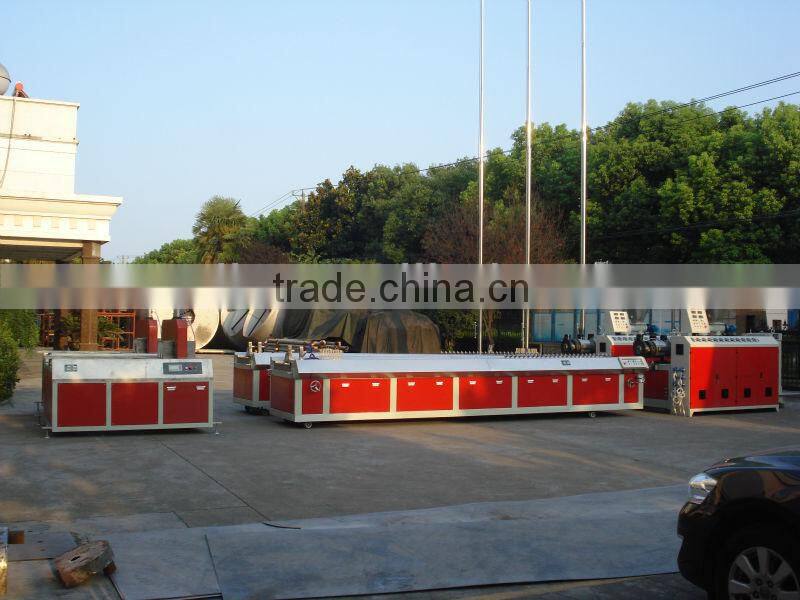

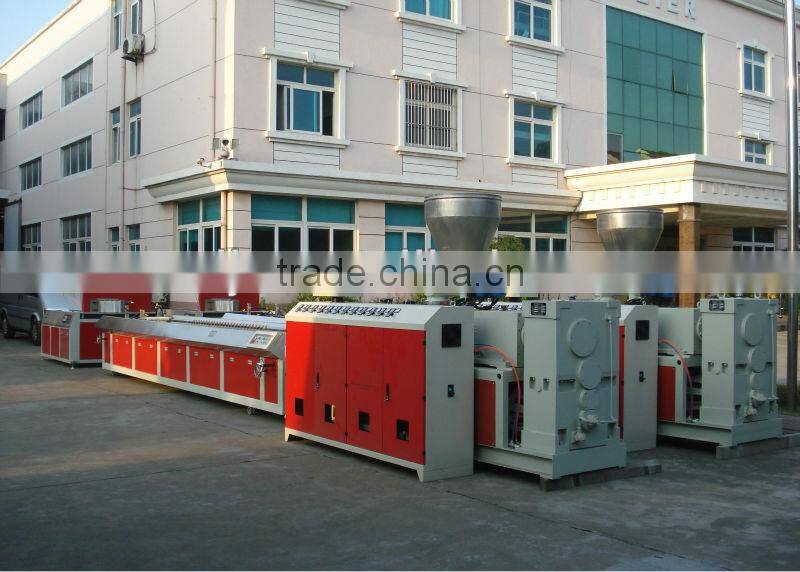

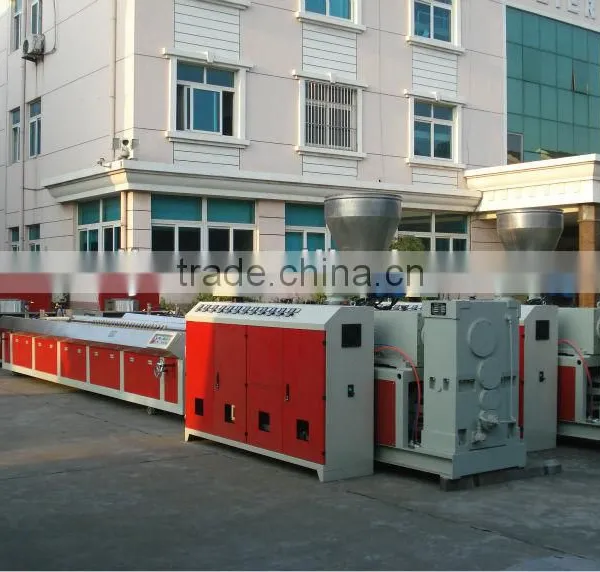

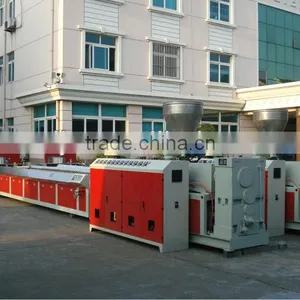

PVC profile production line
The SJZ-series PVC profile production line is used for PVC profile extruding . It can produce profile with different shapes and sizes of (width)300mm.
The whole production line can be purchased the SIEMENS PLC controly system and can realise the taotally automatic control.
It has the characters of low power consumption and high capacity, easy to operate and maintain.Alaso can runing24hours/day. We also offer one year quality guarantee which ensure the customers factory normal running.
The Whole lines include :
1.Hot and cool mixer machine unit .
2.Twin screw extruder machine .
3.Profile moulds .
4.Vacuum caliber moulding machine .
5.Haul-off and cutting machine .
6.Pile machine .
Type | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 |
Screw Diameter(mm) | 55/110 | 65/132 | 80/156 | 92/188 |
Screw Quantity(mm) | 2 | 2 | 2 | 2 |
Direction of Screw Rotation | Different direction, Outward direction | |||
Screw Speed(rpm) | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
Effective Screw Working Length(mm) | 1200 | 1440 | 1800 | 2500 |
Main Motor Power(kw) | 22 | 37 | 55 | 90 |
Barrel Heating Power(kw) | 18 | 24 | 36 | 86.8 |
Output(kg) | 80-140 | 250-300 | 320-450 | 500-600 |
Center Height(mm) |
| 1000 |
| 1200 |
Weight(kg) | 3500 | 4000 | 5000 | 10000 |
Dimension(mm) | 3620×1050×2157 | 4235×1520×2450 | 4750×1550×2460 | 6725×1550×2841 |
Model | BXY-90 | BXY-150 | BXY-240 | BXY-300 |
Extruder model | SJSZ-50/105 | SJSZ-65/132 | SJSZ-65/132 | SJSZ-80/156 |
Moulding table length | 3000mm | 4000mm | 6000mm | 9000mm |
Max boards width | 90mm | 150mm | 240mm | 300mm |
Hauling speed | 0-8m/min | 0-8m/min | 0-6m/min | 0-4m/min |
Total power | 55kw | 90kw | 110kw | 220kw |
