CE&ISO Plastic Pipe Extrusion Line
- 15 Set / Sets per Month
- SHANGHAI
- T/T D/P D/A
Product Details
Condition: | New | Application: | Other, Pipe, supply and drain pipe | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | FULL AUTOMATIC | Place of Origin: | Jiangsu, China |
Brand Name: | CHICHENG | Model Number: | SJSZ | Voltage: | 220V/380V/415V |
Power(W): | According to the model | Dimension(L*W*H): | According to the model | Weight: | According to the model |
Certification: | CE&ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

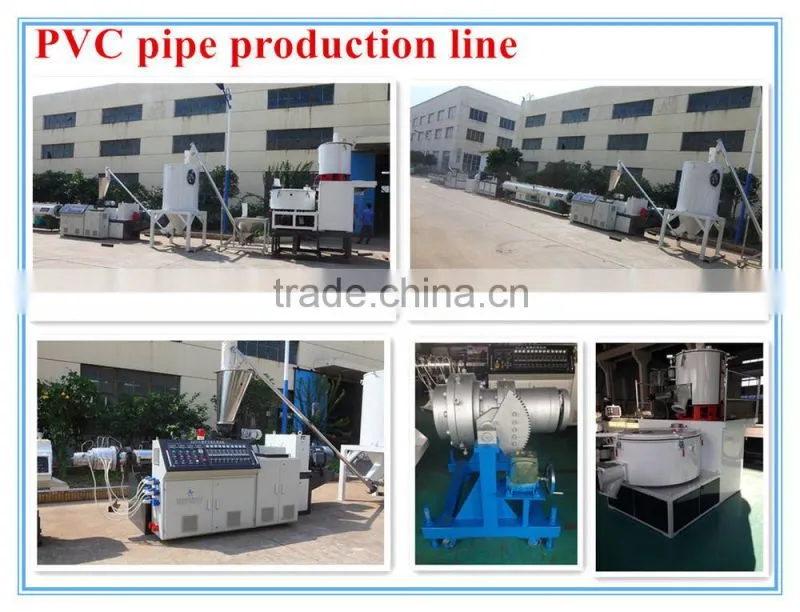

CE&ISO Plastic Pipe Extrusion Line
Process flow
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
The System configuration of PVC pipe extrusion machine
(a) Feeding machine
(b) Conical double-screw extruder
(c) Mould
(d) Vacuum Calibrating tank
(e) Hauling off machine
(f) Printing machine
(g) Pipe cutting machine
(h) Pipe pile-up frame
(i) Auxiliary machine such as feeding, belling and crushing machine.
Technical parameters
Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC- 315/630 | PVC-500/800 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h |
Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min |
Extruder model | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m |
If you are interested in my production ,or have any question ,please feel free to contact me,I will give you the best service.
