16-630mm PVC Tube Production Line
- 10 Set / Sets per Month
- SHANGHAI
- T/T D/P D/A
Product Details
Condition: | New | Application: | Other, Pipe, supply and drain pipe | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | FULL AUTOMATIC | Place of Origin: | Jiangsu, China |
Brand Name: | CHICHENG | Model Number: | SJGF | Voltage: | 220V/380V/415V |
Power(W): | 45-210KW | Dimension(L*W*H): | 18000*1500*1800MM | Weight: | 6000-8000KG |
Certification: | CE&ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
16-630mm PVC Tube Production Line
Process flow
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
The System configuration of PVC tube production line
(a) Feeding machine
(b) Conical double-screw extruder
(c) Mould
(d) Vacuum Calibrating tank
(e) Hauling off machine
(f) Printing machine
(g) Pipe cutting machine

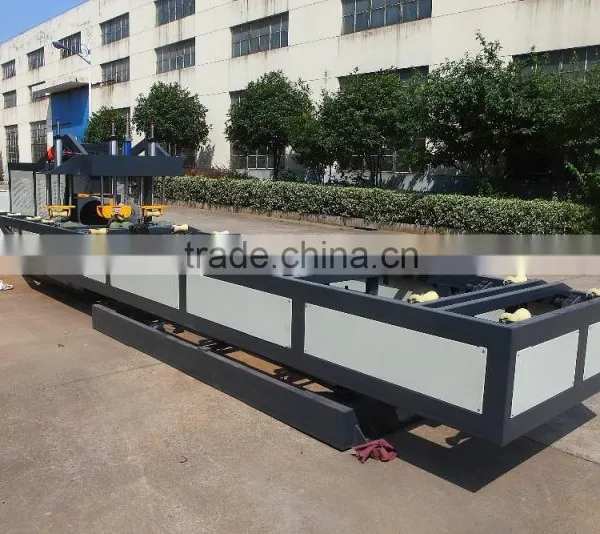

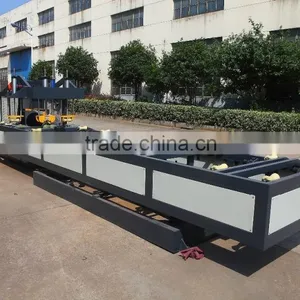

(h) Pipe pile-up frame
(i) Auxiliary machine such as feeding, belling and crushing machine.
model | PVC 63 | PVC110 | ||||
pipe range(mm) | 20-63 | 63-110 | ||||
capacity(kg/h) | 100 | 150-200 | ||||
center height(mm) | 1000 | 1000 | ||||
double screw extruder | extruder model | SJ65 | SJ90 | |||
screw diameter(mm) | 65 | 90 | ||||
L/D | 28:1 | 33:1 | ||||
Screw rotation speed(rmp) | 80 | 100 | ||||
motor power(kw) | 22 | 55 | ||||
heating power(kw) | 16 | 36 | ||||
coolin blower power(kw) | 0.75 | 0.75 | ||||
vacuum calibration tank | length of calibration case(mm) | 6000 | 6000*2 | |||
vacuum degree(mpa) | 0-0.1 | 0-0.1 | ||||
absorbing gas speed(m3/h) | 60 | 60*2 | ||||
water pump power(kw) | 4 | 4 | ||||
longitudinal moving motor power(kw) | 1.1 | 1.1 | ||||
Spray cooling tank | length of spraying tank(mm) | 4000-6000 | 6000-8000 | |||
water pump power(kw) | 4 | 5.5*2 | ||||
haul off machine | driving power(kw) | 1.5 | 2.2 | |||
max pull(N) | 7000 | 8000 | ||||
effctive haul off length(mm) | 1200 | 1500 | ||||
Pneumatic blade type cutter | blade diameter(mm) | 300 | 350 | |||
driving power(kw) | 1.1 | 1.1 | ||||
working air pressure(mpa) | 0.7-0.7 | 0.7-0.7 | ||||
stacker | length(mm) | 6000 | 6000 |
Please feel free to contact us for more information. Additionally, it is worth noting that, it will be more advantageous if you told the diameter and more details of the pipes you are going to produce when sending your messages.
Advantages of PVC pipes
1. Excellent in chemical corrosion, no rust;
2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;
7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
Main Applications
1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Our corporation is a major producer of plastic extruder.We are in a position to accept orders against customers samples specifying design, specifications and packaging requirements. Welcome to inquiry,looking forward to cooperating with you in long terms!!!
