High Output PE Pipe Extrusion Machinery
- SHANGHAI
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Application | Other, Pipe, supply and drain pipe | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | FULL AUTOMATIC | Place of Origin | Jiangsu, China | |
| Brand Name | CHICHENG | Model Number | SJ | |
| Voltage | 220V/380V/415V | Power(W) | According to the model | |
| Dimension(L*W*H) | According to the model | Weight | According to the model | |
| Certification | CE&ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
PE Pipe Extrusion Machinery+lower power consumption
+high output &plc control
+excellent plasticizatity
+CE&ISO

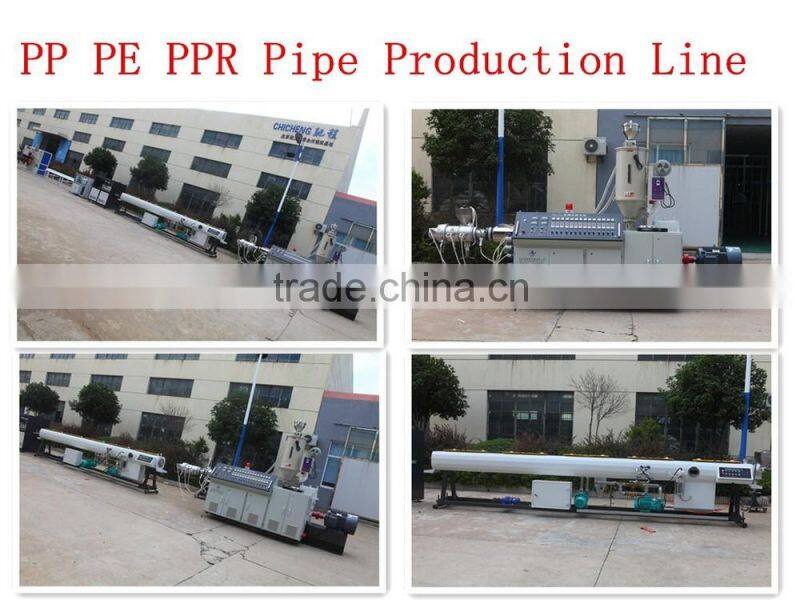

High Output PE Pipe Extrusion Machinery
Process Flow
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging rack
Description of PE Pipe Extrusion Machinery
This PE Pipe Extrusion Machinery can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.
Large diameter PE pipes start to play very important role in the city water and gas supply systems.
Characteristics
- Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h
- Diameter: from 16 to 800mm
- Adopts reasonable design, absorbing safe producing technology, acquiring CE&ISO certificate
Technical Date of PE Pipe Extrusion Machinery
| Main Eetruder | 45/33 | 75/33 | 60/33 | 75/33 | 990/33 | 90/33 | 120/33 | 120/33 | 150/33 | 150/33 | 150/33 |
| Pipe Diameter | 16-63 | 16-63 | 32-125 | 75-250 | 110-450 | 160-500 | 160-500 | 250-630 | 315-800 | 450-1000 | 630-1200 |
| Die Head | Single Outlet | Double Outlet | Single Outlet | ||||||||
| Down-stream Equipment | LG63 | SLG63 | LG125 | LG250 | LG450 | LG500 | LG500 | LG630 | LG800 | LG1000 | LG1200 |
| Total Power | 70 | 125 | 150 | 230 | 380 | 380 | 550 | 550 | 800 | 800 | 1000 |
Consists list of PE Pipe Extrusion Machinery
1. extruder: | 1set |
2. vacuum autoloader | 1 set |
3. hopper plastic dryer | 1 set |
4. color band extruder | 1 set |
5. Mould | 1set |
6. Vacuum calibration unit | 1 set |
7. Hauling-off machine | 1 set |
8. winding machine or stacker | 1 set |
9. Electric controlling parts | 1 set |
10.Spare parts | 1set |
A&Q
A:what is your advantage in comparison with other companies?
Q:Firstly,our factory is not big one and we could reduce the labor cost and routine management cost,so our machine is with lower cost.
Secondly,we have an intelligent team including engineers and salespersons with the same experience like the ones working in big factories.So,do not worry about our capability.
Thirdly,we could guarantee the electrical and mechanical components for one year since the machine could run smoothly in your plant.
Our corporation is a major producer of plastic extruder.We are in a position to accept orders against customers samples specifying design, specifications and packaging requirements. Welcome to inquiry,looking forward to cooperating with you in long terms!!!
