20-110mm PVC Pipe Making Machine

FOB Price

US$ 30,000 - 100,000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Pipe, supply and drain pipe
Plastic Processed	PVC	Screw Design	Double-screw
Automatic Grade	FULL AUTOMATIC	Place of Origin	Jiangsu, China
Brand Name	CHICHENG	Model Number	SJGF
Voltage	220V/380V/415V	Power(W)	45-210KW
Dimension(LWH)	1800015001800MM	Weight	6000-8000KG
Certification	CE&ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

20-110mm PVC Pipe Making Machine
1.Diameter:16-630mm pipe
2.Output:120-800KG/H
3.CE and ISO
4.1 year guarantee

20-110mm PVC Pipe Making Machine

PVC PIPE EXTRUSION MACHINE

PVC PIPE PRODUCTION LINE

PVC TUBE MACHINE

PVC TUBE MAKING MACHINE

PVC WATER SUPPLY PIPE EXTRUSION LINE

Process flow

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack

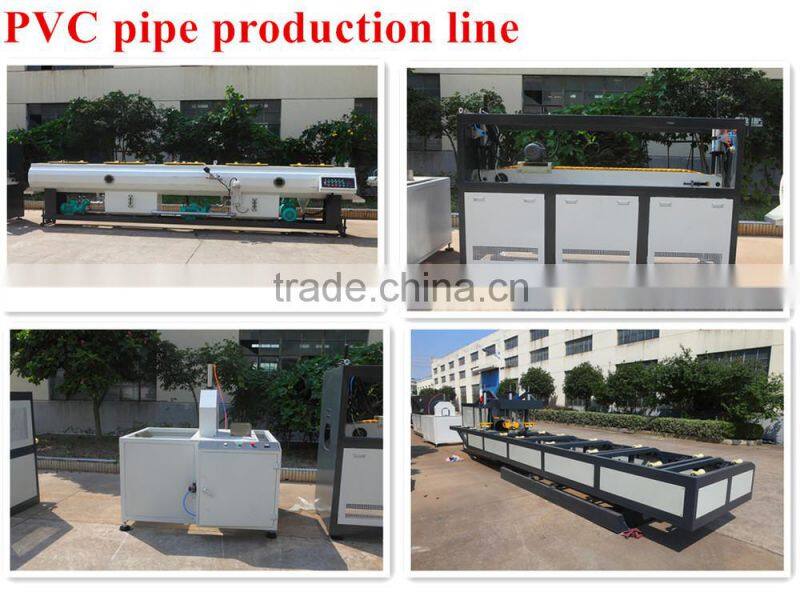

The System configuration of PVC pipe machine

(a) Feeding machine

(b) Conical double-screw extruder

(d) Vacuum Calibrating tank

(e) Hauling off machine

(f) Printing machine

(g) Pipe cutting machine

(h) Pipe pile-up frame

(i) Auxiliary machine such as feeding, belling and crushing machine.

model			PVC 63		PVC110
pipe range(mm)			20-63		63-110
capacity(kg/h)			100		150-200
center height(mm)			1000		1000
single screw extruder	extruder model	SJ65		SJ90
	screw diameter(mm)	65		90
	L/D	28:1		33:1
	Screw rotation speed(rmp)	80		100
	motor power(kw)	22		55
	heating power(kw)	16		36
	coolin blower power(kw)	0.75		0.75
vacuum calibration tank	length of calibration case(mm)	6000		6000*2
	vacuum degree(mpa)	0-0.1		0-0.1
	absorbing gas speed(m3/h)	60		60*2
	water pump power(kw)	4		4
	longitudinal moving motor power(kw)	1.1		1.1
Spray cooling tank	length of spraying tank(mm)	4000-6000		6000-8000
	water pump power(kw)	4		5.5*2
haul off machine	driving power(kw)	1.5		2.2
	max pull(N)	7000		8000
	effctive haul off length(mm)	1200		1500
Pneumatic blade type cutter	blade diameter(mm)	300		350
	driving power(kw)	1.1		1.1
	working air pressure(mpa)	0.7-0.7		0.7-0.7
stacker	length(mm)	6000		6000

Please feel free to contact us for more information. Additionally, it is worth noting that, it will be more advantageous if you told the diameter and more details of the pipes you are going to produce when sending your messages.

Advantages of PVC pipes

1. Excellent in chemical corrosion, no rust;

2. With self extinguishing and flame retardant;

3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;

4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;

5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;

6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;

7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.

Main Applications

1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.

If you want more information, please contact us, thanks!
Our company is near Shanghai ,about 130km. Welcome to our factory anytime!
