Home > Products > Plastic Mixing Machines > SRL-Z Series Plastic Mixing Machine

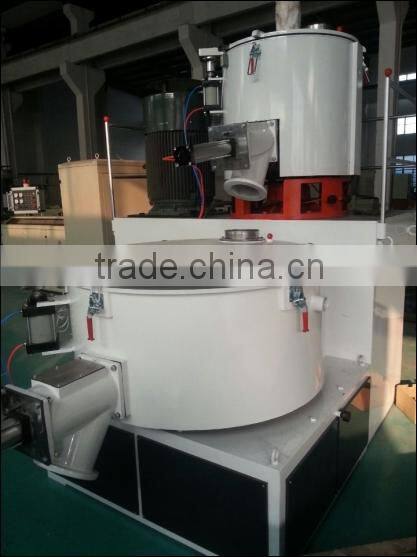

SRL-Z Series Plastic Mixing Machine
- SHANGHAI
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Application | pvc mixing | |
| Automatic Grade | Automatic | Production Capacity | 500KG/HOUR | |
| Place of Origin | Jiangsu, China | Brand Name | CHICHENG | |
| Model Number | SRL-Z | Voltage | 380V or customized | |
| Power(W) | According to model | Dimension(L*W*H) | According to model | |
| Weight | According to model | Certification | CE&ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Plastic Mixing Machine1.for PVC powder mixing
2.model:SRL-Z300/600
3.capacity:500kg/hour
4.hot and cool mixing
Plastic mixing machine
SRL-Z series vertical mixer units are widely used in mixing, drying, coloring, for all kinds of resin such as PVC, PP, PE. They can also be applied in dryness of ABS , polycarbonate, and mixing hydroxybenzene, Alde Hyde resin.
This unit is composed of one hot mixing pot and one cooling pot, the materials from hot mixer will be filled into the cooling mixer automatically, so it can eliminate humidity, and protect from agglomeration.
Main Technical Parameter
SRL-Z series heating/cooling mixer
Model | SRL-Z50/100 | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
Total capacity (L) | 50/100 | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective capacity (L) | 36/75 | 75/150 | 150/375 | 225/450 | 375/750 | 600/1200 |
Main Shaft Speed (r/min) | 625/1250/130 | 525/1050/100 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
Motor Power (kw) | 7/11/5.5 | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 60/90/18.5 |
If you want more information, please contact us, thanks!
Our company is near Shanghai ,about 130km. Welcome to our factory anytime!
