High Performance Pvc Pipe Belling Machine

High Performance Pvc Pipe Belling Machine thumbnail-1
High Performance Pvc Pipe Belling Machine thumbnail-2
High Performance Pvc Pipe Belling Machine thumbnail-3
High Performance Pvc Pipe Belling Machine thumbnail-4
High Performance Pvc Pipe Belling Machine thumbnail-5
High Performance Pvc Pipe Belling Machine thumbnail-6
High Performance Pvc Pipe Belling Machine photo-1
High Performance Pvc Pipe Belling Machine photo-2
High Performance Pvc Pipe Belling Machine photo-3
High Performance Pvc Pipe Belling Machine photo-4
High Performance Pvc Pipe Belling Machine photo-5
High Performance Pvc Pipe Belling Machine photo-6
US$ 5,420 - 33,850 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Pipe
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Suzhou New Chicheng Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Plastic Pipe
Place of Origin Jiangsu, China
Brand Name CHICHENG
Model Number pvc pipe belling machine
Voltage 380V or As per request
Power(W) pvc pipe belling machine
Dimension(L*W*H) pvc pipe belling machine
Weight pvc pipe belling machine
Certification CE, Other, CE, SGS/ISO9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

pvc pipe belling machine
1.For PP,PP-R,PVC belling
2.Belling range is 40-200mm
3.Smooth and round

pvc pipe belling machine

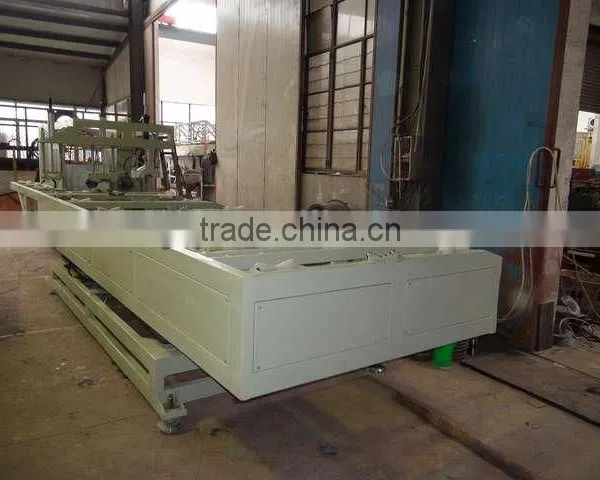

It is called fully automatic torque belling machine.It is a dedicated divice which is suitable for rectangular belling of PP,PP-R,PVC and so on. It can be J-type which called torque.The belling range is 40-200mm,the voltage is AC380V;50HZ,the unit outside dimensions is the 8466*2901*2499mm,the center high is 1100-1200mm,the capacity is 18 kilowatts,and the total weight is 2500kilograms.It both may be used with the plastic tubing production line union and may be used with the single machine.It is highly automated,and the performance is steady and reliable.It is easy to operate.The adaptability of the craft is good.The belling is smooth and round.It does not have abrasion.Its size is consistant and in good condition.



Main Technical Parameter:

Central height

900-1000mm

900-1000mm

Pipe diameter specification

20-63mm

75-250mm

Max.length

8000mm

8000mm

Outline dimension

7656*1410*1900

8466*2901*2499

Displacement

500mm

900mm

Power

32kw

50kw

Power of heating furnace(outside)

15kw

16.8kw

Power of heating furnace(inside)

3kw

5kw

Working pressure of hydraulic system

1.5-3.5mpa

1.5-5.5mpa

press or pressure

0.6mpa

0.7mpa

Total weight

2800kg

5500kg



    High performance pvc pipe belling machine

                                                                             pvc  pipe  belling  machine





 High performance pvc pipe belling machine





 High performance pvc pipe belling machine
