Home > Products > Auxiliary Machines for Plastic products producing > CE Approved High Quality Pipe Belling Machine

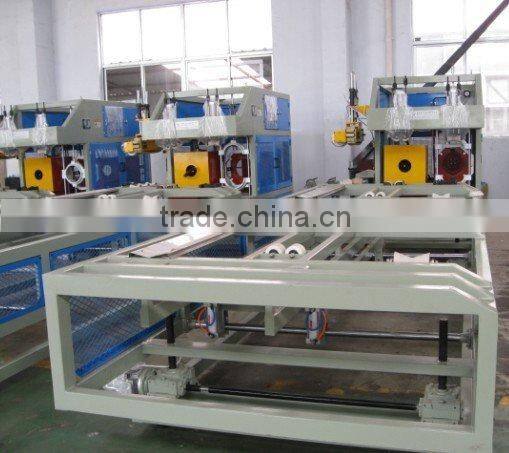

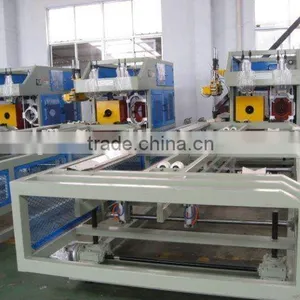

CE Approved High Quality Pipe Belling Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Product Type | Plastic Pipe | |
| Place of Origin | Jiangsu, China | Brand Name | CHICHENG | |
| Model Number | DY | Certification | CE |
Product Description
Specifications
pipe belling machine1.For PP,PP-R,PVC pipe
2.Belling range is 40-200mm
3.Smooth and round
4.SGS,CE,ISO9001:2008
pipe belling machine
It is called fully automatic torque belling machine.It is a dedicated divice which is suitable for rectangular belling of PP,PP-R,PVC and so on. It can be J-type which called torque.The belling range is 40-200mm,the voltage is AC380V;50HZ,the unit outside dimensions is the 8466*2901*2499mm,the center high is 1100-1200mm,the capacity is 18 kilowatts,and the total weight is 2500kilograms.It both may be used with the plastic tubing production line union and may be used with the single machine.It is highly automated,and the performance is steady and reliable.It is easy to operate.The adaptability of the craft is good.The belling is smooth and round.It does not have abrasion.Its size is consistant and in good condition.
Main Technical Parameter:
Central height | 900-1000mm | 900-1000mm |
Pipe diameter specification | 20-63mm | 75-250mm |
Max.length | 8000mm | 8000mm |
Outline dimension | 7656*1410*1900 | 8466*2901*2499 |
Displacement | 500mm | 900mm |
Power | 32kw | 50kw |
Power of heating furnace(outside) | 15kw | 16.8kw |
Power of heating furnace(inside) | 3kw | 5kw |
Working pressure of hydraulic system | 1.5-3.5mpa | 1.5-5.5mpa |
press or pressure | 0.6mpa | 0.7mpa |
Total weight | 2800kg | 5500kg |
pipe belling machine
Belling mould Bellled pipes
