ul listed rigid aluminum conduit with coupling

Name: ul listed rigid aluminum conduit with coupling
Brand: haimei
Availability: InStock

FOB Price

USD $2.01 - $200.01 / Piece

1 Piece(Min.Order)

Supply Ability 6000 Ton / Tons per Month
Port Tianjin Xingang
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Grade	6000 Series
Shape	Round	Surface Treatment	Other, surface oxidation treatment, surface oxidation treatment
Outer Diameter	ul standard	Length	ul standard
Thickness	ul standard	Usage	electrical & industry etc.
Hardness	6063 aluminum alloy	Alloy Or Not	Is Alloy
Temper	T3 - T8	Al (Min)	85%
Wall Thickness	as ul standard	Model Number	ALU
Brand Name	haimei

Product Description

Company Information

We are Qinhuangdao Haimei Aluminum Co., Ltd. which is the leading manufacturer of Rigid Aluminum Conduits, also offers a broad line of aluminum accessories, including elbows (90^o and 45^o), couplings and nipples. The range of the products are produced in standard trade size from 1/2" to 6" .

Generally , our products can be used in electrical project, industry,Airport,Bridge Program etc. They are made from 6063 aluminum alloy. 6063 is considered to be an extrusion alloy that is heatable for strengthening. It has a surface finish that is far smoother than the other commercially available alloys.

In order to improve Haimei’s service in high quality, the products match the UL Standard for Electrical Metal Conduit – Aluminum ,Bronze & Stainless Steel, UL6A. They are especially suited for applications and installations requiring light weight, highly corrosive resistant, and non-magnetic protection. The advantage of our products will be introduced to you clearly:

1.Costs Less than Rigid Steel Conduit with extremely durable

2.Light weight is nearly 1/3 as much as Steel

3.Excellent corrosion resistance, non-magnetic, moisture

4.Easy to install and Low maintenance

*Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job

1.Lower Upfront Material Cost

Percent Material Savings for Aluminum vs Galvanized

size	%Savings
¹/₂^”	15%
³/₄^”	8%
1"	12%
1 ¹/₄^”	14%
1 ¹/₂^”	9%
2"	9%
2 ¹/₂^”	21%
3"	15%
3 ¹/₂^”	12%
4"	11%
5"	38%
6"	44%

2.Less Installation Labor

Persent Installation Labor Savings for Aluminum vs Galvanized

Size	Laid in Trench	12"ceiling	16"ceiling	20"ceiling
1 1/4"	34.9%	32.6%	32.2%	35.3%
1 1/2"	46.9%	48.1%	47.7%	46.9%
2"	59.7%	57.1%	55.3%	57.1%
2 1/2"	59.1%	58.2%	59.1%	57.1%
3"	57.1%	58.1%	57.1%	57.6%
3 1/2"	72.4%	71.2%	58.2%	57.9%
4"	73.1%	71.5%	71.4%	70.2%
5"	72.4%	70.8%	70.0%	71.4%
6"	71.4%	71.0%	70.3%	70.0%

Specifications

• 6063 Aluminum Alloy

• Available 1/2 "to 6"

• NPT thread on each end

• Aluminum Rigid Elbows meet UL6A and ANSI C80.5

Trade Size		Approxinate Weight		Nominal Diameter		Nominal Wall
Desingnator		per100Ft(30.5)		Diameter		Thickness
U.S.	Metric	lb.	Kg.	in.	mm.	in.	mm.
1/2	16	27.6	12.50	0.840	21.3	0.100	2.55
3/4	21	36.4	16.50	1.050	26.7	0.104	2.63
1	27	53.1	24.10	1.315	33.4	0.120	3.04
1-1/4	35	69.9	31.70	1.660	42.2	0.122	3.09
1-1/2	41	86.6	39.30	1.900	48.3	0.132	3.35
2	53	115.1	52.20	2.375	60.3	0.138	3.51
2-1/2	63	182.5	82.80	2.875	73.0	0.183	4.66
3	78	236.6	107.30	3.500	88.92	0.193	4.90
3-1/2	91	288.1	130.70	4.000	101.6	0.206	5.22
4	103	336.9	152.80	4.500	114.3	0.211	5.37
5	129	469.4	212.90	5.563	141.3	0.237	6.01
6	155	620.4	281.40	6.625	168.3	0.261	6.64
Trade Size		Quantity In		quantity		Master Bundies
Desingnator		Primary Bundle				Approximate Weight
U.S.	Metric	ft	m	ft	m	lb.	Kg.
1/2	16	100	30.5	2500	782.5	889	312.5
3/4	21	100	30.5	2500	782.5	909	412.5
1	27	100	30.5	2000	610.0	1063	482.0
1-1/4	35	50	15.2	1000	304.8	699	317.0
1-1/2	41	50	15.2	1000	304.8	866	393.0
2	53	50	15.2	450	137.2	518	234.9
2-1/2	63	-	-	300	91.5	548	248.4
3	78	-	-	200	61.0	473	214.6
3-1/2	91	-	-	200	61.0	576	261.4
4	103	-	-	200	61.0	674	305.6
5	129	-	-	80	23.4	376	170.3
6	155	-	-	60	18.3	372	168.8

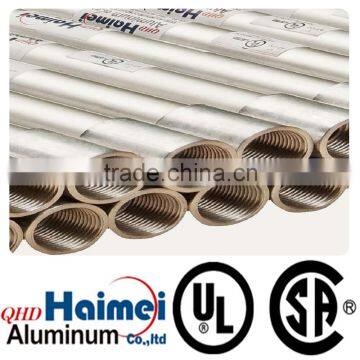

Product image

Factory image

Certifications

Other Products

Packaging & Shipping

Why choose us?

Professional	with 7 years profesional manufacturing experience in aluminum products
Professional	Profesinal production line,well -trained workers,strictQC standard
Main market	Our products have shipped around the world
Main market	North America , South America , North America, Eastern Europe , Africa , Oceania , Western Europe , Eastern Asia , Mid East
Service	We have good and professional team
	We accept any drawings or your samples to develop new product
	Any small problems will be solved at the most prompt time
	We always offer relateive technical support,,quick response,all your inquire will replied within 24 hours
Certificate	UL Certificate
