electrical conduit pipe sizes ul approved
- 6000 Ton / Tons per Month
- Tianjinxingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | haimei | |
| Model Number | ALU | Type | Other, rigid | |
| Material | Other, aluminum |
Product Description

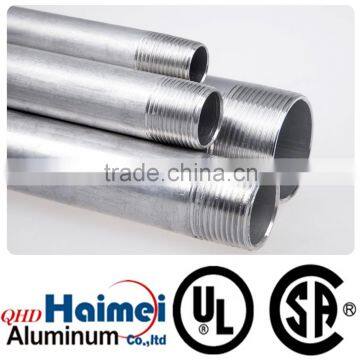

We are Qinhuangdao Haimei Aluminum Co., Ltd. which is the leading manufacturer of Rigid Aluminum Conduits, also offers a broad line of aluminum accessories, including elbows (90o and 45o), couplings and nipples. The range of the products are produced in standard trade size from 1/2" to 6" .
In order to improve Haimei’s service in high quality, the products match the UL Standard for Electrical Metal Conduit – Aluminum ,Bronze & Stainless Steel, UL6A. They are especially suited for applications and installations requiring light weight, highly corrosive resistant, and non-magnetic protection. The advantage of our products will be introduced to you clearly:
1.Costs Less than Rigid Steel Conduit with extremely durable
2.Light weight is nearly 1/3 as much as Steel
3.Excellent corrosion resistance, non-magnetic, moisture
4.Easy to install and Low maintenance
*Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job
1.Lower Upfront Material Cost
| Percent Material Savings for Aluminum vs Galvanized |
size | %Savings |
1/2” | 15% |
3/4” | 8% |
1" | 12% |
1 1/4” | 14% |
1 1/2” | 9% |
2" | 9% |
2 1/2” | 21% |
3" | 15% |
3 1/2” | 12% |
4" | 11% |
5" | 38% |
6" | 44% |
2.Less Installation Labor
| Persent Installation Labor Savings for Aluminum vs Galvanized |
| Size | Laid in Trench | 12"ceiling | 16"ceiling | 20"ceiling |
| 1 1/4" | 34.9% | 32.6% | 32.2% | 35.3% |
| 1 1/2" | 46.9% | 48.1% | 47.7% | 46.9% |
| 2" | 59.7% | 57.1% | 55.3% | 57.1% |
| 2 1/2" | 59.1% | 58.2% | 59.1% | 57.1% |
| 3" | 57.1% | 58.1% | 57.1% | 57.6% |
| 3 1/2" | 72.4% | 71.2% | 58.2% | 57.9% |
| 4" | 73.1% | 71.5% | 71.4% | 70.2% |
| 5" | 72.4% | 70.8% | 70.0% | 71.4% |
| 6" | 71.4% | 71.0% | 70.3% | 70.0% |
| Trade Size | Approxinate Weight | Nominal Diameter | Nominal Wall | ||||
| Desingnator | per100Ft(30.5) | Diameter | Thickness | ||||
| U.S. | Metric | lb. | Kg. | in. | mm. | in. | mm. |
| 1/2 | 16 | 27.6 | 12.50 | 0.840 | 21.3 | 0.100 | 2.55 |
| 3/4 | 21 | 36.4 | 16.50 | 1.050 | 26.7 | 0.104 | 2.63 |
| 1 | 27 | 53.1 | 24.10 | 1.315 | 33.4 | 0.120 | 3.04 |
| 1-1/4 | 35 | 69.9 | 31.70 | 1.660 | 42.2 | 0.122 | 3.09 |
| 1-1/2 | 41 | 86.6 | 39.30 | 1.900 | 48.3 | 0.132 | 3.35 |
| 2 | 53 | 115.1 | 52.20 | 2.375 | 60.3 | 0.138 | 3.51 |
| 2-1/2 | 63 | 182.5 | 82.80 | 2.875 | 73.0 | 0.183 | 4.66 |
| 3 | 78 | 236.6 | 107.30 | 3.500 | 88.92 | 0.193 | 4.90 |
| 3-1/2 | 91 | 288.1 | 130.70 | 4.000 | 101.6 | 0.206 | 5.22 |
| 4 | 103 | 336.9 | 152.80 | 4.500 | 114.3 | 0.211 | 5.37 |
| 5 | 129 | 469.4 | 212.90 | 5.563 | 141.3 | 0.237 | 6.01 |
| 6 | 155 | 620.4 | 281.40 | 6.625 | 168.3 | 0.261 | 6.64 |
| Trade Size | Quantity In | quantity | Master Bundies | ||||
| Desingnator | Primary Bundle | Approximate Weight | |||||
| U.S. | Metric | ft | m | ft | m | lb. | Kg. |
| 1/2 | 16 | 100 | 30.5 | 2500 | 782.5 | 889 | 312.5 |
| 3/4 | 21 | 100 | 30.5 | 2500 | 782.5 | 909 | 412.5 |
| 1 | 27 | 100 | 30.5 | 2000 | 610.0 | 1063 | 482.0 |
| 1-1/4 | 35 | 50 | 15.2 | 1000 | 304.8 | 699 | 317.0 |
| 1-1/2 | 41 | 50 | 15.2 | 1000 | 304.8 | 866 | 393.0 |
| 2 | 53 | 50 | 15.2 | 450 | 137.2 | 518 | 234.9 |
| 2-1/2 | 63 | - | - | 300 | 91.5 | 548 | 248.4 |
| 3 | 78 | - | - | 200 | 61.0 | 473 | 214.6 |
| 3-1/2 | 91 | - | - | 200 | 61.0 | 576 | 261.4 |
| 4 | 103 | - | - | 200 | 61.0 | 674 | 305.6 |
| 5 | 129 | - | - | 80 | 23.4 | 376 | 170.3 |
| 6 | 155 | - | - | 60 | 18.3 | 372 | 168.8 |
1.Reply your enquiry in 24 working hours,any time you can contact me.
2.OEM, buyer design, buyer label services provided.
3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
4.we can provide free sample for your check
5.we have the certification of UL
6.Special discount and protection of sales area provided to our distributor.
7.timely delivery
8.packing can make client brand.
9.Good after-sale service
