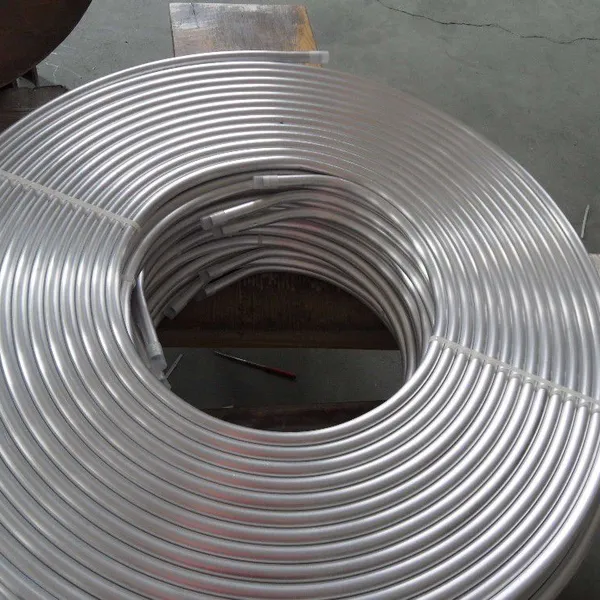

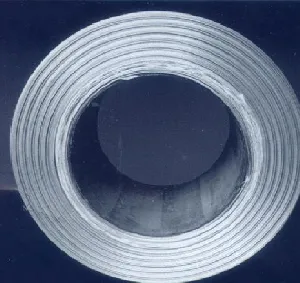

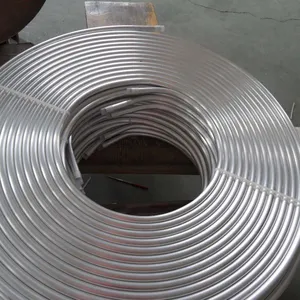

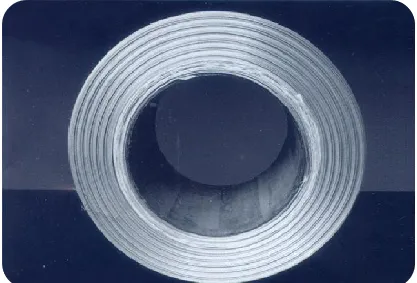

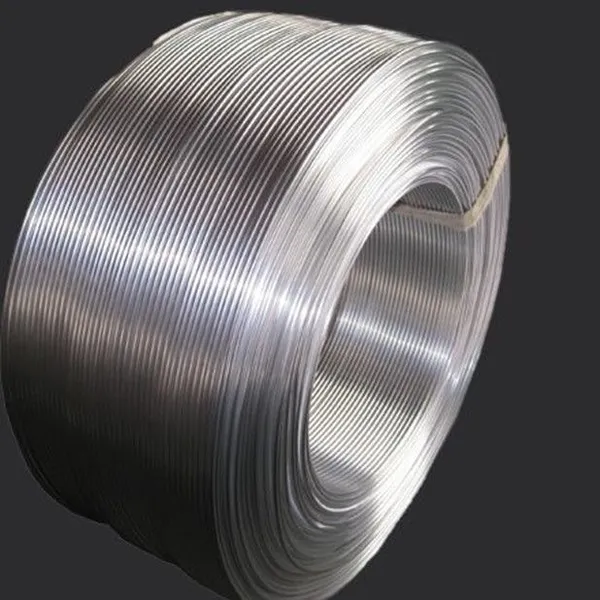

Cold Rolling Aluminum Tube for Cooling Circulation System
US$ 2800 - 3500
MOQ: 20 Short Tons
Key Specifications
Get Latest Price
Brand Name:
TX
Place of Origin:
China
Model Number:
TX-005
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
20 days
Related Products
-
Hot Sale Multicolor Double-Sided Painting Aluminum Coil for PackeingUS$ 3500 - 4000MOQ: 3 Short Tons -
Hot Sale Aluminum Pipe Use of The Refrigeration AccessoriesUS$ 3400 - 4200MOQ: 3 Short Tons
-
The Coffee-Capsule/Pod Made of the 1070/5132/8011 AluminumUS$ 0.07 - 0.11MOQ: 1000000 Pieces
-
Aluminum Strip Is Used for Processing Various Coffee Cups and Bottle CapsUS$ 3500 - 4300MOQ: 3 Short Tons
-
The Large Caliber Aluminum Easy Open Peel off Lid to Tear Cover for FoodUS$ 0.018 - 0.027MOQ: 1000000 Pieces
Brand Name
TX
Place of Origin
China
Model Number
TX-005
Shape
Round
Length
5m-100m
Thickness
0.53-4.5mm
Surface Treatment
Polished
Usage
Vehicle and household air conditioning cooling circulation pipes
Hardness
hard
Temper
O - H112
Alloy Or Not
Is Alloy
Grade
1000 Series
Wall Thickness
0.53mm-4.5mm
Al (Min)
0.53
Outer Diameter
4mm-68mm
Product Description
Key Specifications/Special Features:
Name: aluminum pipe
Alloy:1060/1070/3003/5052/6060/6063/6082/7003
Finished:Mill Finished / Anodized
Diameter:10mm-350mm
Thickness:0.35mm-30mm
Process: Extruding- CNC- Anodized -Packing
Application: Industrial and construction
Package: standard export package,or as required
Surface:Anodized, brushed, polished, mill finished, power-coated, sand blast
Application:
Lighting, solar reflector, building appearance.
Interior decoration: ceiling, wall, car interior and exterior decoration.
Chemical / insulating pipe coating.
Technology: cold drawing / cold rolling
Testing and inspection: tensile test, flaring test, flange test, reverse test, hardness test, hydrostatic or non-destructive electrical test, etc
| Cold drawn aluminum pipe (error value ± 0.05mm) | |||||
| Product specification (outer diameter * inner diameter) |
wall thickness | Product specification (outer diameter * inner diameter) |
wall thickness | Product specification (outer diameter * inner diameter) |
wall thickness |
| 3*2 | 0.5 | 5.15*2.9 | 1.125 | 7*5.05 | 0.975 |
| 3.7*2.8 | 0.45 | 5.3*4.5 | 0.4 | 7*6 | 0.5 |
| 4*1.8 | 1.1 | 5.5*1.8 | 1.85 | 7.2*6.2 | 0.5 |
| 4*2 | 1 | 5.5*3.68 | 0.91 | 8*7 | 0.5 |
| 4*2.2 | 0.9 | 5.5*3.7 | 0.9 | 8.1*7.2 | 0.45 |
| 4*2.5 | 0.75 | 5.5*4.5 | 0.5 | 8.5*6.5 | 1 |
| 4*3 | 0.5 | 5.7*4.7 | 0.5 | 9.4*8.2 | 0.6 |
| 4.5*2.2 | 1.15 | 5.7*4.6 | 0.55 | 9.5*8.5 | 0.5 |
| 4.95*4 | 0.475 | 6.65*2.9 | 1.875 | 10*8.8 | 0.6 |
| 5*1.8 | 1.6 | 6*5 | 0.5 | 10*9 | 0.5 |
| 5*2 | 1.5 | 6.2*3.75 | 1.225 | 11.1*9.6 | 0.75 |
| 5*2.2 | 1.4 | 6.2*5.3 | 0.45 | 12*8 | 2 |
| 5*2.5 | 1.25 | 6.2*5.4 | 0.4 | 15*14.2 | 0.4 |
| 5*3 | 1 | 6.2*5.5 | 0.35 | 15.2*13.7 | 0.75 |
| 5*2.6 | 1.22 | 6.5*5.5 | 0.5 | 16.07*14.5 | 0.785 |
| 5.1*3.5 | 0.8 | 6.6*5.7 | 0.45 | 17*16 | 0.5 |
| 5*4 | 0.5 | 6.8*6 | 0.4 | 20*19 | 0.5 |
| 5*4.2 | 0.4 | ||||
