GM8210 5 Series 32ch ONVIF 2.8 H.264 720P DVR
SPECIFICATIONS
| Alarm Model | Model | 32 Channel H.264 AHD-M |
| HY-AHD-5932Z (E,I,R,D,P,K) / HY-AHD-5932Z (E,I,R,D,P,K)-4HDD | ||
| Board model | PCBA-HY-AHD-8210*2-32 | |
| System | Main processor | Industrial grade embedded micro controller chip Taiwan Zhiyuan chipset GM8210 |
| Operating system | Embedded LINUX operating system | |
| System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
| Display | Operation interface | 16 bit real color GUI interface support mouse operation |
| Multilingual Language | YES, 25 kinds of language | |
| Display screen | 1/4/8/9/16/32 screen | |
| Audio | Audio compression | G.711A |
| Record and playback | Record mode | Manual, alarm, motion detection, timing |
| Local playback | 1--4ch (local mode) | |
| Video search | Time, date, event, channel search | |
| Storage and back up | Space Usage | Video 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,Audio 691.2M/day *channel |
| Video storage | Local Hard Disk, Network | |
| Back up mode | Network backup, USB portable HDD | |
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | |
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | |
| USB port | Support USB 2.0 port | |
| User | User level | Admin / User |
| User right | Users can set different permissions (How to use please refer to the manual book) | |
| Password protection | YES | |
| Remote | Remote Independent Operation | YES |
| Download records | YES | |
| Remote Event Trigger Recording | YES | |
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | |
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | |
| Live Audio | YES | |
| On-line user | Max. 10 | |
| Mobile Surveillance | YES (supporting iPad, iPhone & Android;iPad, iPhone, Andriod remote playback) | |
| Network Protocol | DHCP, DDNS, NTP, UPNP, EMAIL, IP authority, 3G, Wireless settings | |
| Alarm | Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) |
| Event Notification | FTP / E-Mail | |
| Pre-alarm Recording | YES | |
| Video loss | Video loss notification | |
| Buzzer | YES | |
| Others | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
| Remote control | YES | |
| Cooling fan | NO | |
| Tour | YES | |
| Power Consumption (±10%) | <15W(without HDD) | |
| Operating Temperature | 0℃ ~ +55℃ | |
| Dimensions (mm) ** | 370mm(L)* 300mm(W)* 60mm(H) | |
| System Recovery | System auto recovery after power failure |
Mainboard Image
Back panel picture
Product Show
| Package | Net Weight | 2.25kg±0.1kg |
| Carton Box Size | 410mm(L)* 124mm(W)* 352mm(H) | |
| Package Size | 640mm(L)* 425mm(W)* 370mm(H) | |
| Gross Weight | 16.5kg±0.5kg |

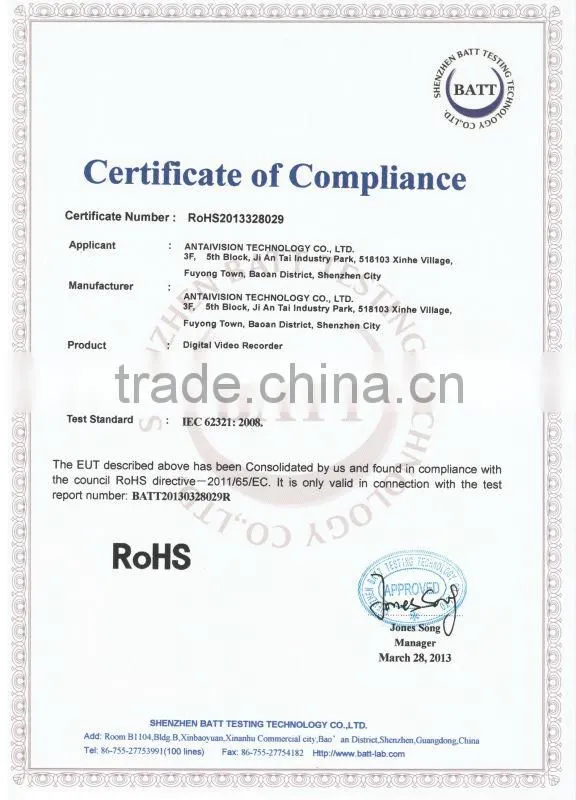

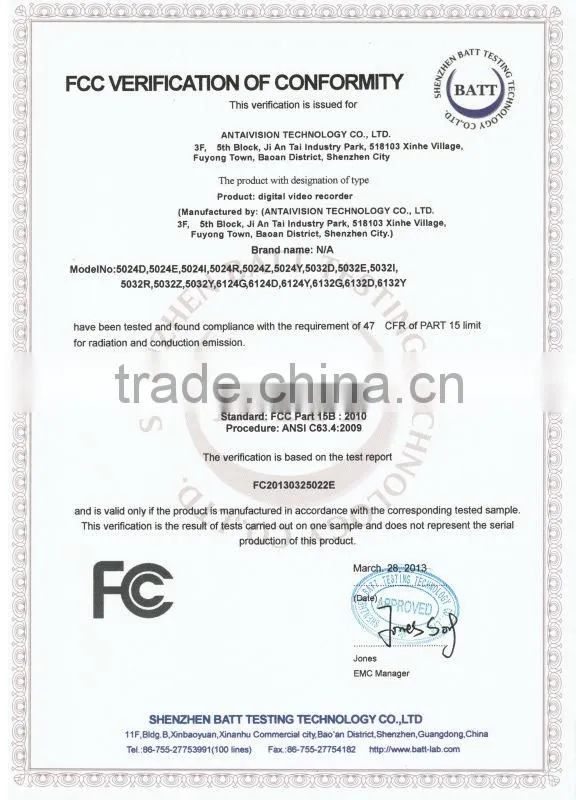

CERTIFICATE
EXHIBITION
1.Offer OEM/ODM service:
1) Logo silk print service;
2) Nearly 50 kinds of styles provided for clients' choose;
2. After-sale Service:
1) All products will be tested 5 times before delivering.
2) All products will be checked 100% ok before packing.
3) All products will be offered one year's warranty, and technological supports for its lifelong.
If you'd like to learn more and get latest price.pls add my
Skype:Antaivision-Angel
Wechat:A-Sun-01
QQ:3041798485
Or send inquiry to my
Email:sales07 at
I will work for you sincerely !
Please check our website: m
Any inquiries will be replied in 24 hours
Professional manufacturer and welocome to Visit Our factory in Shenzhen City
OEM/ODM service offered, Welcome to Ask Any Question
Antai Looks Forward to Serving You !!!
Q1: What is your MOQ for this product?
A1: We accept small and sample orders for our existing models, for OEM orders the MOQ is 1000 units.
Q2: How long is the warranty period?
A2: 24 months warranty is promised to all customers.
Q3: What is the delivery time?
A3: For sample order it takes 3-5 working days, for mass production it takes 7-15 working days.
Q4: What should I do if I have some problems to handle the DVR?
A4: You can contact our sales, send email to us and all emails wil be replied within 24 hours.
