Contact Platform Support
Help CenterCMS Software Multiple DVR
US$ 33.00 - 33.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANTAIVISION
Model Number:
HY-MH-4908
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8CH 1080P Realtime Playgback DvrUS$ 33.00 - 33.00MOQ: 1 Piece -
4CH1080P AHD DVR Support Audio, P2P, CMS and Alarm Full HD CCTV DVRUS$ 25.00 - 25.00MOQ: 1 Piece
-
New Products AHD DVR 4CH 1080P Real Time DVR RecorderUS$ 25.00 - 25.00MOQ: 1 Piece
-
2016 Hot New Ahd Dvr 1080p 4ch Channel Dvr Home Cctv Outdoor SecurityUS$ 25.00 - 25.00MOQ: 1 Piece
-
1080P Real-time Playback DVR Use for AHD,IPC,Analog All in One CCTV DVR Security Camera System 4ch h 264 DVRUS$ 25.00 - 25.00MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ANTAIVISION
Model Number
HY-MH-4908
Chipset GM8210 4 Series 8ch H.264 Digital Video Recorder 1080P

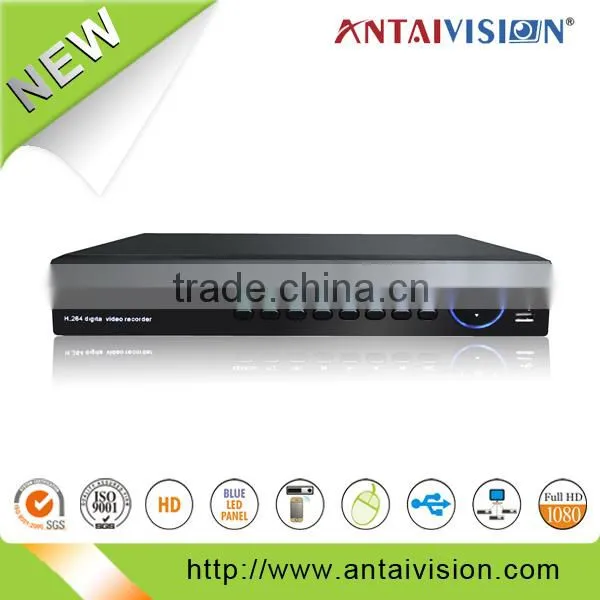

Image:
CMS software multiple DVR Specification:
| System | Main processor | Industrial grade embedded micro controller chip Taiwan Zhiyuan chipset GM8210 | |
| Operating system | Embedded LINUX operating system | ||
| System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
||
| Display | Operation interface | 16 bit real color GUI interface support mouse operation | |
| Multilingual Language | YES, 25 kinds of language | ||
| Display screen | 1/4/8/9 screen | ||
| Video | Video Standard | PAL / NTSC(1080P) | |
| Image encode | H.264(Main Profile) | ||
| Capture function | YES | ||
| Monitor quality | Monitor:D1; VGA & HDMI: (1920*1080,1280*1024,1280*720,1024*768) | ||
| Playback quality | 1080P/720P | ||
| Encode capability | 8ch 1080P@15fps | ||
| Decode capability | 4ch 1080P@15fps | ||
|
Multi-Input (ONVIF 2.8) |
Analogue:8ch 1080P | ||
| Analogue+ Network HD:——— | |||
| Network:——— | |||
| Audio | Audio compression | G.711A | |
| Record and playback | Record mode | Manual, alarm, motion detection, timing | |
| Local playback | 1--4ch (local mode) | ||
| Video search | Time, date, event, channel search | ||
| Storage and back up | Space Usage | Video 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,Audio 691.2M/day *channel | |
| Video storage | Local Hard Disk, Network | ||
| Back up mode | Network backup, USB portable HDD | ||
| Interface | Video input | 8ch BNC(1.0Vp-p,75Ω) | |
| Video output | 1ch CVBS, 1ch VGA, 1ch HDMI | ||
| Audio input | 8ch RCA (200-2800mV,30KΩ) | ||
| Audio output | 1ch RCA (200-3000mV,5KΩ)/1ch HDMI audio output | ||
| Alarm input | No | ||
| Alarm output | No | ||
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | ||
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | ||
| USB port | Support USB 2.0 port | ||
| HDD port | Accommodates 1 SATA HDDs (Maximum support two, each of the maximum support 4TB) | ||
| Wireless Port | 3G & WIFI ( Extented by USB) | ||
| User | User level | Admin / User | |
| User right | Users can set different permissions (How to use please refer to the manual book) | ||
| Password protection | YES | ||
| Remote | Remote Independent Operation | YES | |
| Download records | YES | ||
| Remote Event Trigger Recording | YES | ||
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | ||
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | ||
| Live Audio | YES | ||
| On-line user | Max. 10 | ||
| Mobile Surveillance | YES (supporting iPad, iPhone & Android;iPad, iPhone, Andriod remote playback) | ||
| Network Protocol | DHCP, PPPOE, FTP, DDNS, NTP, UPNP, EMAIL, IP authority, 3G, Wireless settings | ||
| Alarm | Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) | |
| Event Notification | FTP / E-Mail | ||
| Pre-alarm Recording | YES | ||
| Video loss | Video loss notification | ||
| Buzzer | YES | ||
| Others | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) | |
| Remote control | YES | ||
| Cooling fan | NO | ||
| Tour | YES | ||
| Power Source (±10%) | DC 12V / 3A | ||
| Power Consumption (±10%) | <10W(without HDD) | ||
| Operating Temperature | 0℃ ~ +55℃ | ||
| Dimensions (mm) ** | 325mm(L)* 245mm(W)* 52mm(H) | ||
| System Recovery | System auto recovery after power failure | ||
| Package | Net Weight | 1.45kg±0.1kg | |
| Carton Box Size | 350mm(L)* 110mm(W)* 305mm(H) | ||
| Package Size | 570mm(L)* 367mm(W)* 326mm(H) | ||
| Gross Weight | 12.0kg±0.5kg | ||
