Specifications
shipboard marine cable marine cable manufacturers1.tinned copper conductor
2.XLPE/EPR insulation
3.50mm2 95mm
shipboard marine cable marine cable manufacturers
Rating voltage: 0.6/1kv
Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2
Marine cables construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR
4. Filler ( if necessary)
5. Tape
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)
7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)
Marine cables Specifications
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Marine cables Flammability features
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
Marine cables Application

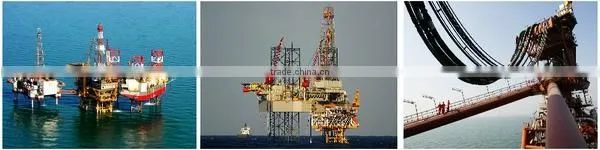

This marine cables are intended for power,lighting of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.
Marine cables Classification Society Certificates
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
The radius of bend for the installation of marine cables
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
1.What is the marine cable price?
We need to know cable type or cable structure, size and quantity.
2. What is the MOQ?
The MOQ of our marine cable is 100M each size.
3. What is the production time?
Normally in 10 to 30 days.
4.What is your trade terms?
EXW FOB CFR CIF
5.What is your acceptable payment terms?
Usually by TT. Other payment way also acceptable.

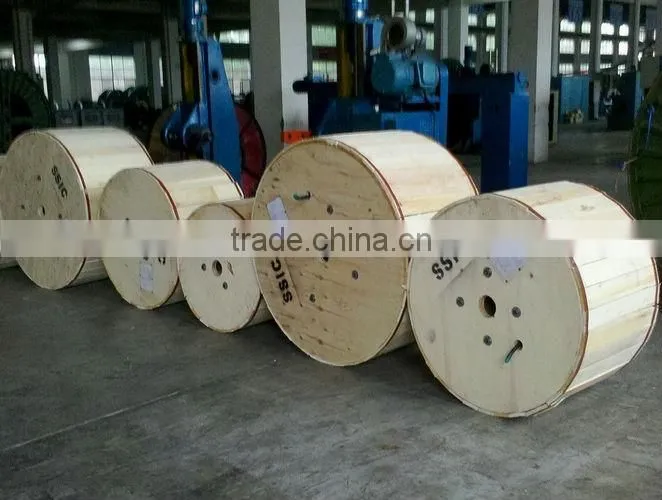

We usually pack marine cable by plywood cable drum/ reel. or in rolls and put into plywood cartons.
Rating voltage: 600V/1000V
Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2
Construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR
4. Filler ( if necessary)
5. Tape
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)
7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)
cable Specifications
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Flammability features
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
Application
The cable is intended for power,lighting of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.
Classification Society Certificates
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.

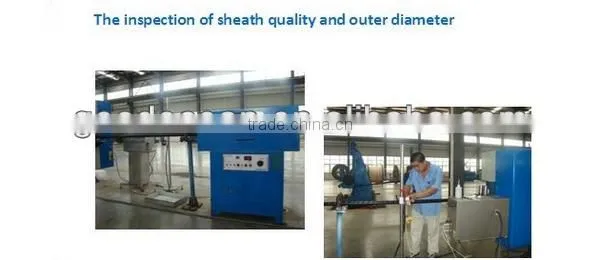

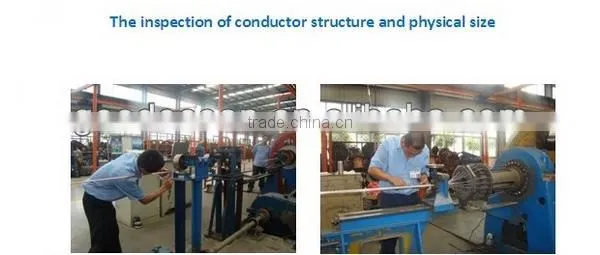

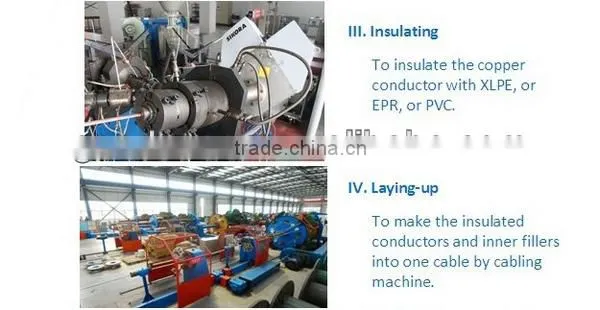

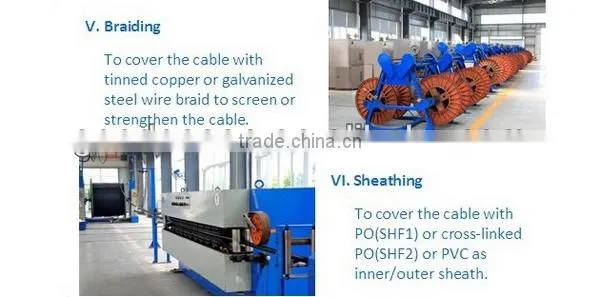

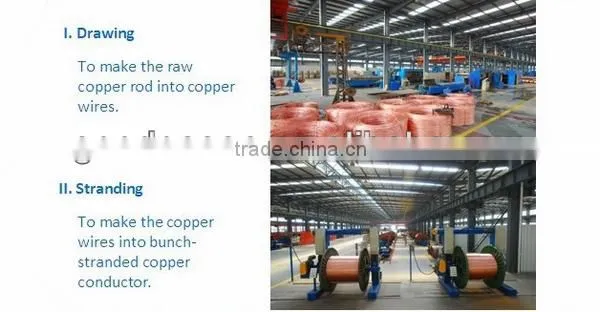

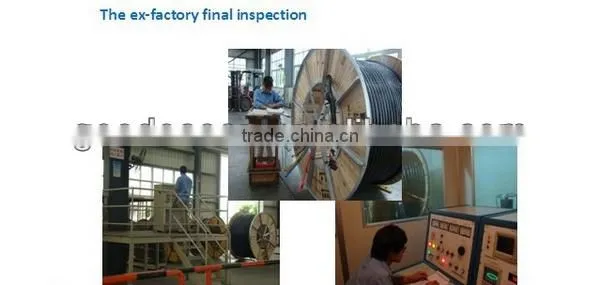

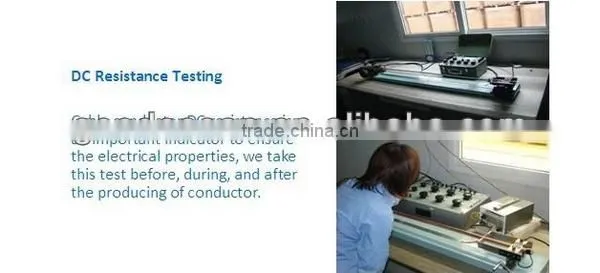

Production process & inspection

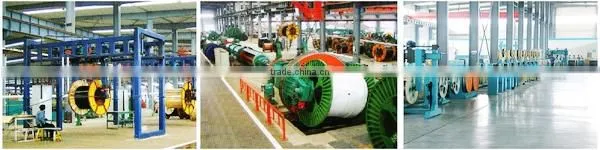

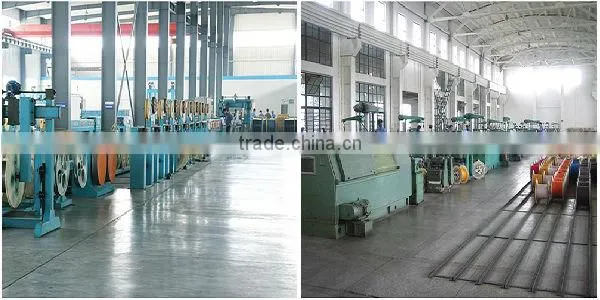

Workshop
Ningbo Good Ocean is the subsidiary of Ningbo Grand Ocean Group, which is founded in 2006. Ningbo Good Ocean is focusing on supply marine offshore cable,electric cable wire, rubber welding cable, photovoltaic solas cable to overseas clients.
We cooperate with many high-quality factories in China. ABS, BV, KR, NK, GL, LR, RINA, CCS, DNV,TUV, EC certificates are available on customers requirements. Our factory has established scientific and reasonable quality control system according to ISO 9001:2008. All of our products are produced according to IEC standard and widely used in shipbuilding, ocean engineering, petroleum platform, harbor machinery naval construction.
Our quality control guideline is maintaining efficient management, providing high quality products, continuing quality improvement and accommodating market demand. Our objective is keeping pace with the times, innovation, achieving better profits through better management and developing market with good quality products. Our enterprise spirit is honesty, unity, meticulousness and high efficiency.
Our existing clients come from Australia, New Zealand, Thailand, Burma, Brazil, the Philippines, Malaysia, India, South Korea, etc. Now we are pleased to work together with our new and long-term customers to achieve cable wire solution in the future.
Welcome to contact me for more information.
Jack Wu(Mr.)
Cellphone: +86 159 6846 6895
Skype:goodoceanmarine
Email:jack_cable at
