Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Good Ocean | Model Number: | Armoured Marine Cable 0.6/1KV |
Part: | Piston |
Product Description
Specifications
Armoured Marine Cable 0.6/1KV1.tinned copper conductor
2.XLPE/EPR insulation
3.tinned copper wire armoured
4.PVC/PO sheath

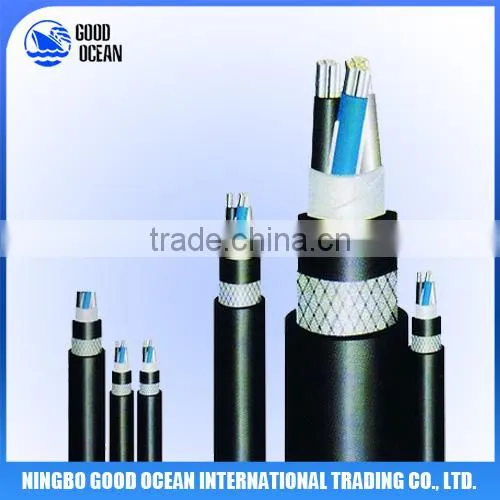

Armoured Marine Cable 0.6/1KV
Rating voltage: 0.6/1kv
Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2
Marine cables construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR
4. Filler ( if necessary)
5. Tape
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)
7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)
Marine cables Specifications
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Marine cables Flammability features
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
Marine cables Application
This marine cables are intended for power,lighting of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.
Marine cables Classification Society Certificates
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
The radius of bend for the installation of marine cables
Cable structure features | Over diameter of cable(D) | Minimum internal bending radius |
Metal braided armored | Any value | 6D |
Non-armored | D≤25 | 4D |
D25 | 6D |
