220V Surge Arrester
US$ 59 - 67
MOQ: 15 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DGMDQ
Model Number:
DGM-B100/4
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RJ45 Surge ProtectorUS$ 9 - 12.5MOQ: 10 Pieces -
Lightning Current Arrester,3-pole+NPEUS$ 21 - 25MOQ: 30 Pieces
-
Cctv Surge Protective Device / SPD / Class CNegotiableMOQ: 1 Piece
-
Surge Protector Device / tv Surge Protector /earthing EquipmentNegotiableMOQ: 1 Piece
-
Surge Protector/SPD Surge Protective Device/NPEUS$ 15 - 20MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
DGMDQ
Model Number
DGM-B100/4
Specifications
220V Surge arrester1.100-150KA
2. Up <=3.2KV
220V Surge arrester
DGM-B100 series surge protective devices are suitable for B grade surge protection, used at the equipotential connection of LPZOA or LPZOB and LPZ1 zone, which protects the electrical network not shocked by the thunder. The DGM-B100 series surge protection devices are usually installed in low voltage main distribution box connected to the incoming end of the buildings.
| Technical Parameter | |
| Model No. | DGM-B100 |
| Version | 4 pole |
| Complies with | IEC61643-1 |
| Frequency | 50/60Hz |
| Rated voltage(V)Un | 220/380 |
| ntinuous operatiing voltage(V)Uc | 385/420 |
| Nominal discharge current 8/20μs In(KA) | 100KA |
| Max.discharge current 8/20μs Imax(KA) | 150KA |
| Voltage protection level Up(KV) | 3.2KV |
| Response time ns | 25 |
| Housing material | PBT,antiflaming |
| Varistor | ZnO |
| Operating temperature | -40 to +65 |
| Relative Humidity | <90% |
| Altitude | 2000M |
| Color | Red and Black |
| Fuse or switch(A) | 125A |
| Function display( visible window ) | Normal : Green Failure: Red |
| Remote control | selectable |
| Adapt to | TT,TN system |
| Installation | 35mm Din rail |
| The cross section of L/N Line | 25,35 |
| The cross section of PELine | 35 |
| Net weight per piece | 1.4KGS |
| Carton | 400x300x16mm |

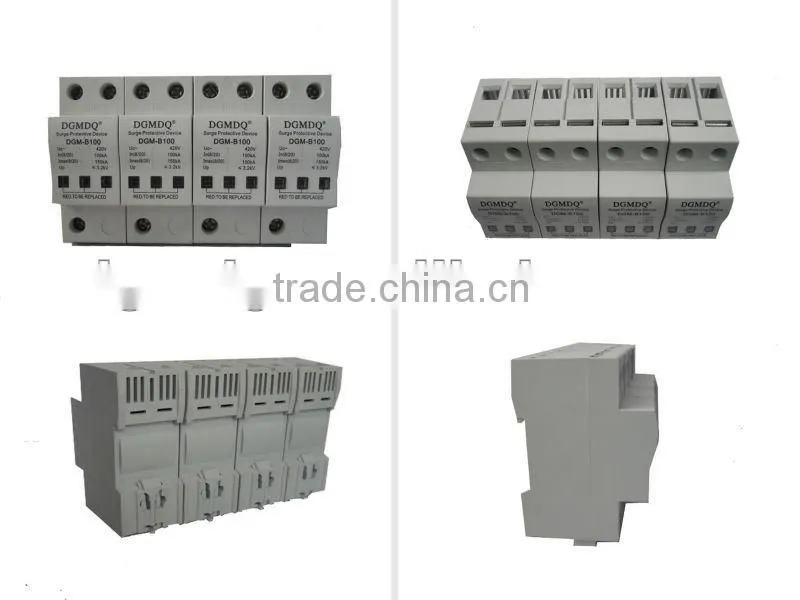

Product Photo:
