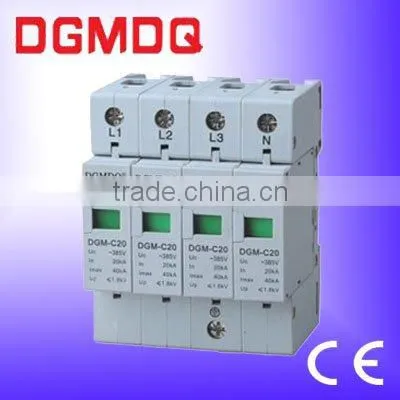

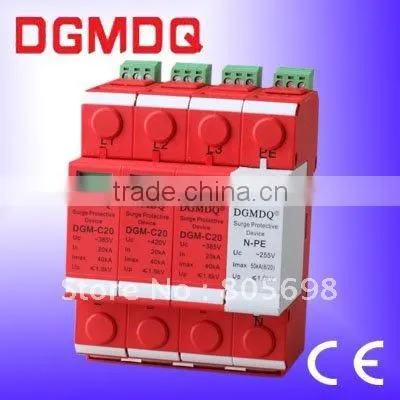

Cctv Surge Protective Device / SPD / Class C

Name: Cctv Surge Protective Device / SPD / Class C
Brand: DGMDQ
SKU: 115268385
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

DGMDQ

Model Number:

DGM1-C20

Zhejiang Leishu Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name DGMDQ

Model Number DGM1-C20

Usage Low Voltage

Breaking Capacity Low

Safety Standards IEC

Specifications

cctv surge protective device / SPD / class C
1,CE Certification & Test Report
2,Class C

Key words : Low voltage distribution system surge protection device / SPD

Product introduce and application:

DGM-type surge protector(hereinafter referred to as SPD)adapted to AC,mainly used for rated voltage not exceeding 1000V(RMS),200/380V,50/60Hz power supply system,not exceeding 1500V DC voltage of the circuit .SPD has a phase to phase(L-L),phase to ground(L-NE),phase to neutral(L-N),neutral to ground(N-PE) and combinations such as protected model.

Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):

Type No.	Rated Voltage(V) Un	Continuous Voltage Uc(V~)	Standard Discharge Current In(KA)	Max Discharge Current Imax(KA)	Protection Level(KA~)	Response Time(ns)
DGM1(2)-D5	220/380	275/320 385/420	5	10	1.2	≤25
DGM1(2)-D10			10	2	1.6
DGM1(2)-C20			20	40	1.8
DGM13-B30			30	60	.2.2
DGM3(4)-B40			10	80	2.4
DGM(4)-B60			60	100	2.8
DGM-N-PE		220/255	40/60	60/80	1.2	≤100

Part of DC power surge protection technology parameters:

Type No.	DC power system Voltage(V) Un	Continuous Voltage Uc(V~)	Standard Discharge Current In(KA)	Max Discharge Current Imax(KA)	Protection Level(KA~)
DGM-D5-Z/12	12	16	5	10	120
DGM-D5-Z/24	24	32	5	10	150
DGM-D5-Z/48	48	62	5	10	250
DGM-D5-Z/110	110	140	5	10	500
DGM-D10-Z/12	12	16	10	20	150
DGM-D10-Z/24	24	32	10	20	200
DGM-D10-Z/48	48	62	10	20	300
DGM-D10-Z/110	110	140	10	20	600
DGM-C20-Z/48	48	62	20	40	350
DGM-C20-Z/110	110	142	20	40	650
