Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > RJ45 Surge Protector

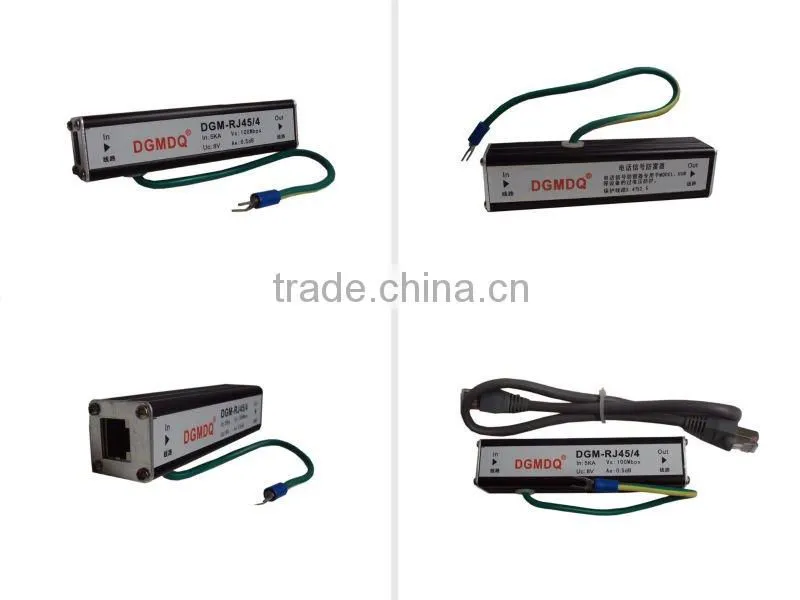

RJ45 Surge Protector
US$ 9 - 12.5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DGMDQ
Model Number:
DGM-RJ45
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lightning Current Arrester,3-pole+NPEUS$ 21 - 25MOQ: 30 Pieces -
Cctv Surge Protective Device / SPD / Class CNegotiableMOQ: 1 Piece
-
Surge Protector Device / tv Surge Protector /earthing EquipmentNegotiableMOQ: 1 Piece
-
Surge Protector/SPD Surge Protective Device/NPEUS$ 15 - 20MOQ: 1 Piece
-
Surge Protection Device for Low Voltage Distribution SystemNegotiableMOQ: 30 Pieces
Place of Origin
Zhejiang, China
Brand Name
DGMDQ
Model Number
DGM-RJ45
Specifications
RJ45 surge protectorCAT5,8 wire or 4 wire
3KA
Full protective mode
RJ45 surge protector
Key words : Interface Line Communications,Computer Networks,Signal Lightning Protection devices,Surge Protector,Telephone Surge Protector and so on
Application Notes:
DGM-RJ45,DGM-RJ11 series of comunications,computer network signal lightning protection device adapted to Modem,fax,elephone,HUB and other sensitive communications network equipment .Mainly used to prevent to the damage of the equipemnt from over-voltage electric sensors and electrostatic discharge .
Products Features:
- Thickness and thinness levels used to protect,the former class transfer the majority of the energy over-voltage,discharge lightning current,the latter class of clamp the over-voltage,both played a very good protective effection.
- Lower residual voltage,response fast(picosecond-level),high transfer rate 100Mbps,lower insertion loss
- Pleasing in appearance,convenient installation,different products with differen interfaces.
Technology parameter
| Model | DGM-RJ45 |
| Rate Operating voltage Un(V) | DC48 |
| Maximum Continuous Operating Voltage (V) | DC60 |
| Voltage Protection Level Up(V) | ≤200V |
| Nominal Discharge Current In(8/20 µs) | 3KA |
| Impulse Protective Voltage Ur(1KV/µs) | ≤600V |
| Insertion Loss | no more than 0.3db |
| Interface | RJ45 |
| Protective Feet | 1,2,3,6 |
| Protective Mode | Full Protective Mode |
| Response time ns | 1ns |
