Specifications

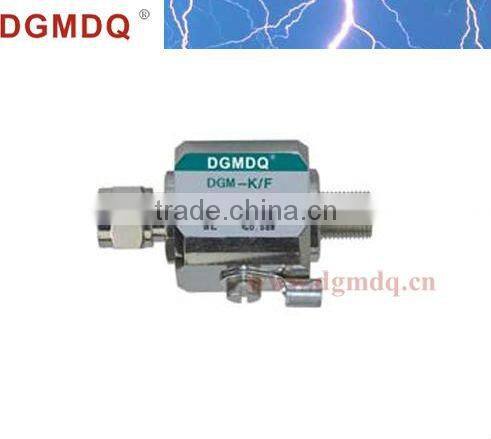

Lightning signal protection device Antennas / non-feed lightning protector1,CE Certification & Test Report
2,0-2.0G frequency
Product introduce and application:
Application Intruduction
DGM-K series of Lightning signal protector devices apply to satellite TV tuner, satellite microwave signal receiver station, mobile communication, base station antenna system, to protect the receiving devices from over-voltage of lightning strikes.
Products Feature
Large through-flow capacity, low residual voltage, re-use after a lightning strike
Low VSER, little insertion loss, high transmission rate
More interface types and more reliable,no special maintenance
Technical Parameter
Type |
DGM-K/BNC |
DGM-F/TNC |
DGM-K/F |
DGM-K/SMA |
DGM-K/N |
Working frequency |
0~3.0G |
0~3.0G |
0~2.0G |
0~2.0G |
0~3.0G |
Characteristic impedance |
75Ω |
50Ω |
75Ω |
75Ω |
50Ω |
Nominal breakerover voltage(100V/S) |
65~90V |
||||
Nominal discharge current |
5KA(8/20) |
||||
Max discharge current |
10KA(8/20) |
||||
Limited voltage |
≤550V |
||||
Voltage standing-wave ratio |
≤1.2 |
||||
Insertion loss |
≤0.5d B |
||||
Interface form |
K/K,K/J,J/J |
||||
Operation environment |
Temperature -25~+70 °C |
||||
Outline size |
<59.2mmx25mmx25 mm |
||||
Key words : Lightning signal protection device Antennas / non-feed lightning protector
