Home > Products > Signal Lightning Protector > Telephone surge arrester

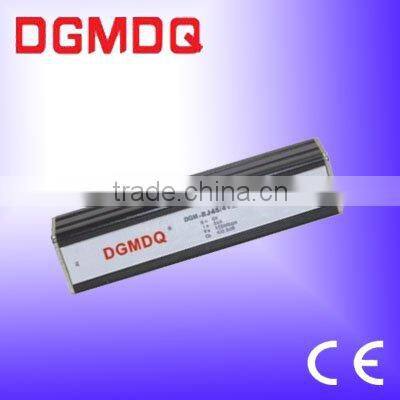

Telephone surge arrester
- 10000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | DGMDQ | Model Number: | DGM-RJ45 |
Product Description
Specifications
1.Telephone surge arrester2.Material:aluminium alloy
3.Carton package
4.adapted to Modem,fax,telephone,HUB
.
Telephone surge arrester
Lower residual voltage,response fast,high transfer rate 100Mbps,lower insertion loss
Key words : Interface Line Communications,Computer Networks,Signal Lightning Protection devices,Surge Protector,Telephone Surge Protector and so on
Application Notes:
DGM-RJ45,DGM-RJ11 series of comunications,computer network signal lightning protection device adapted to Modem,fax,elephone,HUB and other sensitive communications network equipment .Mainly used to prevent to the damage of the equipemnt from over-voltage electric sensors and electrostatic discharge .
Products Features:
- Thickness and thinness levels used to protect,the former class transfer the majority of the energy over-voltage,discharge lightning current,the latter class of clamp the over-voltage,both played a very good protective effection.
- Lower residual voltage,response fast(picosecond-level),high transfer rate 100Mbps,lower insertion loss
- Pleasing in appearance,convenient installation,different products with differen interfaces.
Technology parameter
Type | Woking voltage (V) | Nominal discharge current (KA) | Limiting voltage(V) | Transfer rate(Mbps) | Insertion loss | Interface line | Connector type |
DGM-RJ11/2-48 | 48 | 5 | ≤200 | 10 | ≤0.5 | 3,4 | RJ11(F) |
DGM-RJ11/4-48 | 48 | 5 | ≤200 | 10 | ≤0.5 | 3,4 and 2,5 | RJ11(F) |
DGM-RJ11/2-180 | 180 | 5 | ≤300 | 10 | ≤0.5 | 3,4 | RJ11(F) |
DGM-RJ11/4-180 | 180 | 5 | ≤300 | 10 | ≤0.5 | 3,4 and 2,5 | RJ11(F) |
DGM-RJ45/2-05 | 5 | 5 | ≤40 | 10 | ≤0.52 | 4,5 | RJ45(F) |
DGM-RJ45/4-05 | 5 | 5 | ≤40 | 10 | ≤0.5 | 3,6 and 4,5 | RJ45(F) |
DGM-RJ45/2-180 | 180 | 5 | ≤300 | 10 | ≤0.5 | 4,5 | RJ45(F) |
DGM-RJ45/4-180 | 180 | 5 | ≤300 | 10 | ≤0.5 | 3,6 and 4,5 | RJ45(F) |
DGM-RJ45/4Y-05 | 5 | 5 | ≤20 | 100 | ≤0.5 | 1,2, 3,6 | RJ45(F) |
DGM-RJ45/4Y-20 | 20 | 5 | ≤120 | 100 | ≤0.5 | 1,2, 3,6 | RJ45(F) |
