Prominent cassava starch processing machine 2.5ton/h
cassava starch processing machine Each part Configuration
Cassava starch processing machine---Dip tank and Acid production tank preparation | |||
1 |
cassava starch processing machine Dip tank |
10 |
This tank is used to soaking corn or cassava Stainless steel corrosion-resistant material On-site technical guidance production; production of corn dip tank, and sulfuric acid used in the tower. Material:Carbon steel anticorrosive Size approximately: 80m³ Handling capacity:4ton/h Steel plate, channel steel, angle iron, anti-corrosion materials, flanges, valves, pipes, etc. This material locally purchased equipment provided by technical.Demand side is responsible for production. |
2 |
cassava starch processing machine Sulfurous acid Preparation tank |
1 |
Preparation tank of sulfurous acid for soaking corn. (Because sulfurous acid play three roles: a bleaching effect, 2, antibacterial, 3 non starch soften and dissolve the substance.) Acid production tank, furnace, stainless steel pumps, etc. Corrosion-resistant materials. Volume of about 80 cubic meters This material locally purchased equipment provided by technical drawings, Demand side is responsible for production. |
3 |
cassava starch processing machine Corrosion resistant pumps |
2 |
7.5KW |
4 |
cassava starch processing machine Corn pump |
4 |
7.5*2KW |
Cassava starch processing machine---Processing section after corn dipped | |||
5 |
cassava starch processing machine Water separation curved sieve LFSF—100 |
2 |
Made of Stainless steel Handling capacity 15-20m³
|
6 |
cassava starch processing machine Degerming mill LFTP-920 |
3 |
Used for corn two grades degerm after soaking; Material: carbon steel Handling capacity:4ton/h |
Cassava starch processing machine---Embryoid bodies and germ separation section | |||
7 |
cassava starch processing machine Germ separator LFPX-350 |
2 groups |
Stainless steel |
8 |
cassava starch processing machine endosperm separating curved screen LFFR—1000 |
2 |
Endosperm and slurry separation plant; Handling capacity 15-20m³ Stainless steel
|
9 |
cassava starch processing machine Fine grinder LFZM-90 |
4 |
Second level fine pulverizing embryoid body Size 1600 * 650 * 800mm Power 11×4KW Capacity 4ton / h |
10 |
cassava starch processing machine Germ swirl pump |
2 |
Power 15*2KW 60-80m Lift |
Cassava starch processing machine---After Fine grinding, Dregs and syrup separation and washing section | |||
11 |
Pressure curved sieve |
8 |
Handling capacity: 30m³/h 100-80 mesh sieve By 5-6 grades of washing slurry residue, to make starch content to a minimum |
12 |
cassava starch processing machine slurry residue delivery pump LFYB-60 |
14 |
Power: 15KW Material: stainless steel Lift: 12-40m |
Cassava starch processing machine---Starch separation and purification section | |||
13 |
cassava starch processing machine Starch separator LFDF-420 |
2 |
material is stainless steel Capacity 4ton / h Power 30×2KW |
14 |
cassava starch processing machine Desander group LFCS-270 |
4 |
30-40m³/h Including slurry and water Desander group Material: stainless steel |
15 |
cassava starch processing machine Swirler Group LFXL-485 |
12 |
Power 7.5-11KW Material stainless steel It can increase the whiteness of starch to improve quality Pumps, slurry pipe connecting bracket is integrated, with Desander, flowmeter |
16 |
Water pump LFYB-60-11 |
4 |
Power 11-7-5-.5.5KW Used for Acid water treatment, pipeline transitions, Swirl wash Handling capacity: lift 15-30m |
17 |
cassava starch processing machine elevated tank |
2 |
To Storage starch milk Stainless steel |
Cassava starch processing machine---Refined starch dehydration section | |||
18 |
cassava starch processing machine Starch Dehydrator LFWD-120 |
1 |
Removes water wet starch, reduces the moisture content to 40%. The part to contact with material is stainless steel Power 55KW Capacity 2.5t/h |
19 |
cassava starch processing machine After dehydration wet material conveyor LFLS-650 |
1 |
It used to transport material after dewatering to dryer Size 5500 * 450 * 450mm Power 4kw Capacity 6-7t / h Width 650, small storage bin is on the top of the conveyor |
Cassava starch processing machine---Drying Refined starch section | |||
20 |
cassava starch processing machine Starch drying Machine LFFG—3 |
1 |
Drying the water in the starch to 13% or so Size10 * 6 * 14m Power 90kw Capacity 2.5ton/h Fan, drying tube, discharge, feeders, heat exchange system, dedusting system, thermometers, insulation materials, |
21 |
cassava starch processing machine refined starch sieve LFCP-100 |
1 |
Screening refined starch impurities and large particles Fineness of 100 mesh. Dimensions 3500 * 1500 * 2500mm. Galvanized Material Power 3kw Capacity 2.5ton / h |
Cassava starch processing machine---Conveying the material pump of each step | |||
22 |
cassava starch processing machine Cooling conveyor system LFLS-5 |
4 |
Power 15kw Handling capacity 2.5t/h With stainless steel hopper 2 cubic meters |
23 |
PVC slurry feeding pipe |
1 |
200meters Slurry pipe Diameter:60-75-90-110-125-160-200MM |
24 |
Reflux use PVC |
1 |
Electrical threading pipe Mainly used for pressure screen reflux (control system threading pipe) 200 meters long Diameter50-150mm |
25 |
cassava starch processing machine Workshop equipment control system |
8 groups |
|
Cassava starch processing machine---Installation material | |||
26 |
cassava starch processing machine Angle iron channel steel |
1 |
Installation materials, installation support and equipment for the connection port of the hopper |
27 |
Steel plate |
1 |
Installation materials, installation support and equipment for the connection port of the hopper 1-3mm |
28 |
stainless steel |
1 |
Installation materials, installation support and equipment for the connection port of the hopper 1-3mm |
29 |
tool |
1 |
Cutting machines, electric welding, wrenches, hammers and other hand |
30 |
cassava starch processing machine Packaging Systems |
1 |
Screw conveyor, electronic scales 100KG, 50KG |
31 |
Boiler (fuel) |
1 |
Steam pressure 8-10 kg Handling capacity:4ton/h Self-configuration or buy in extra |
32 |
cassava starch processing machine flowmeter |
1 |
Capacity:20-30m³ Swirler dedicated matching pumps, |
33 |
cassava starch processing machine Stirrer |
6 |
1.1KW |
34 |
cassava starch processing machine Wearing parts |
For 2 years |
Bearing, screen (stainless steel), filter cloth, etc. |
Users need their own transformer, wells (> 120m³ / h) and the like.
The main plant covers an area of 1,000 square meters. Warehouse of 1,000 square meters, a byproduct workshop 800-1000 square meters.
Employment 20 people / shift

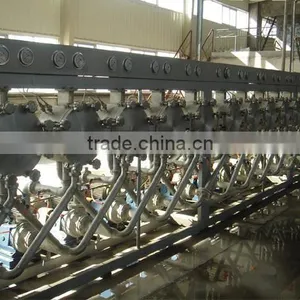

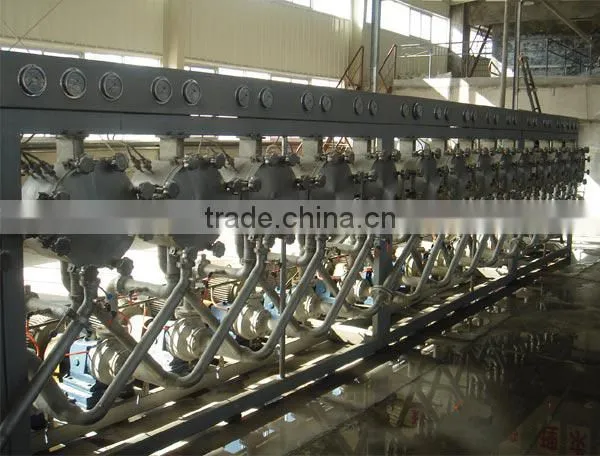

Cassava starch processing machine---Dip tank Cassava starch processing machine---Swirler group

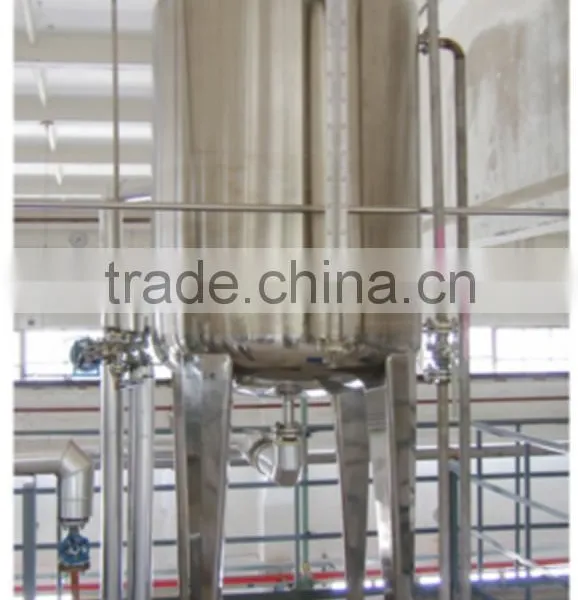

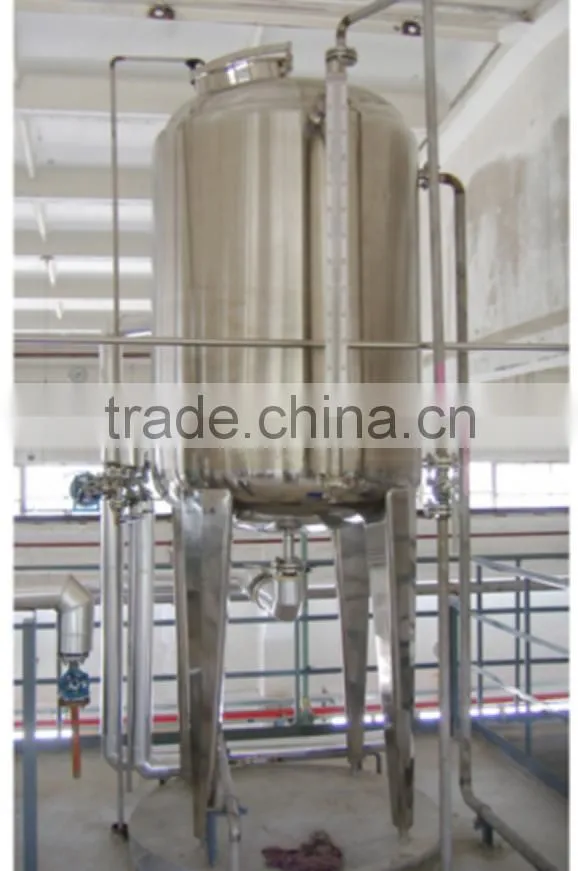

Cassava starch processing machine---Elevated tank

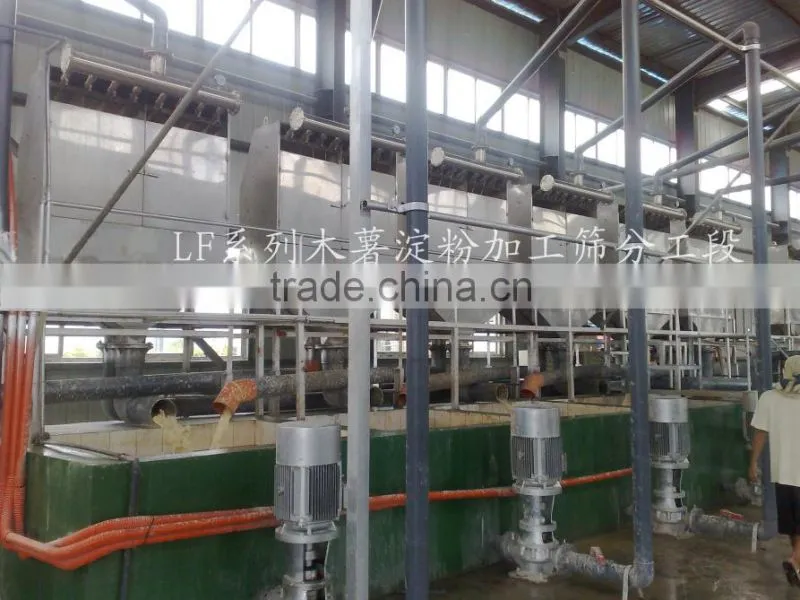

Cassava starch processing machine---Pressure curved sieve
Cassava starch processing machine--- Cooling conveyor system

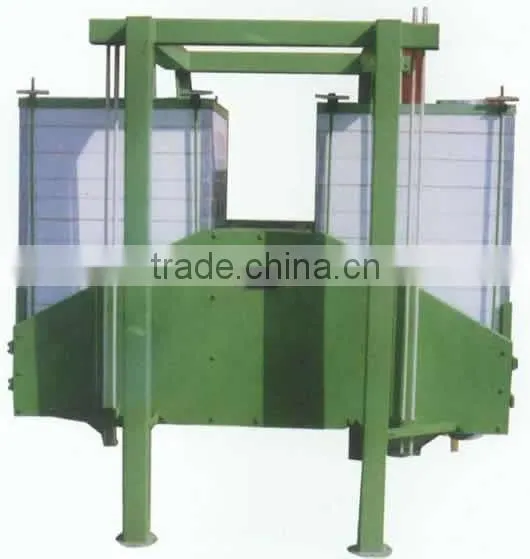

Cassava starch processing machine---Fine grinder Cassava starch processing machine---refined starch sieve

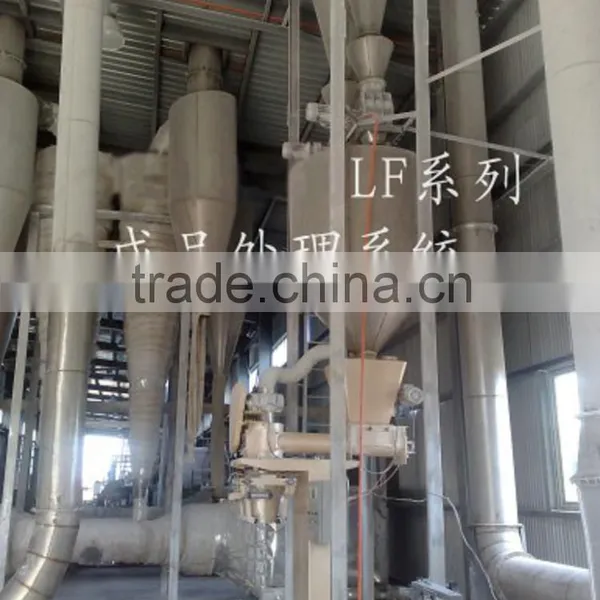

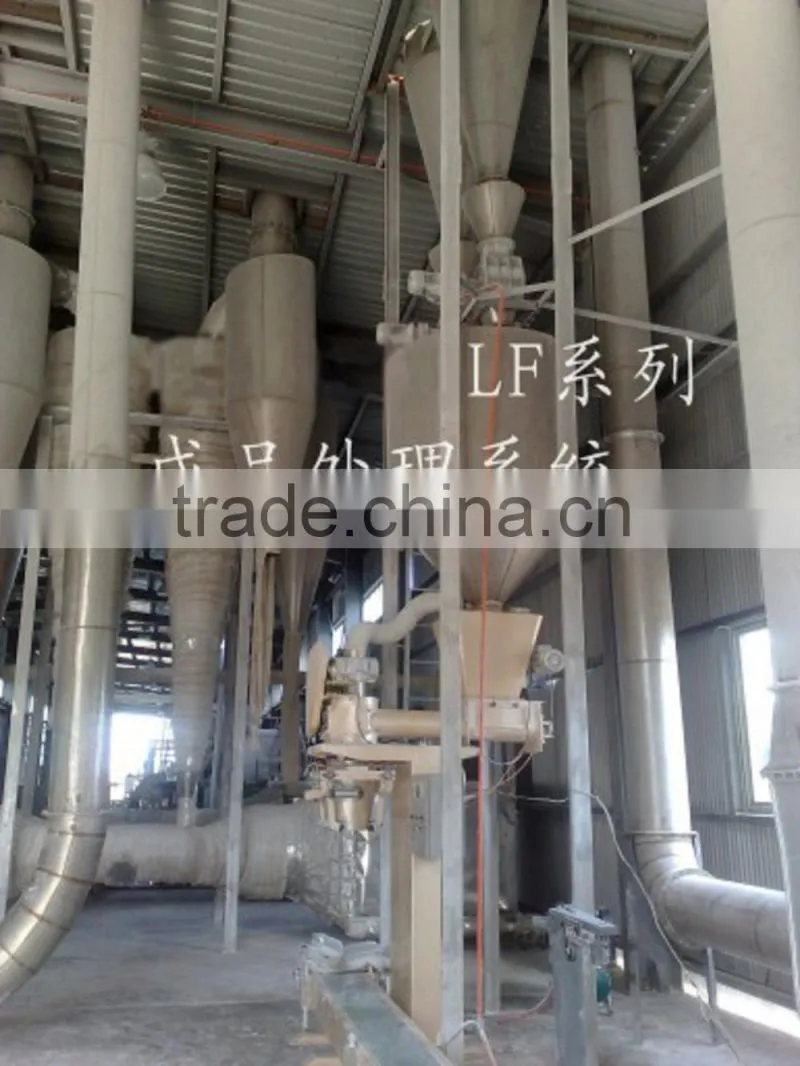

Cassava starch processing machine Manufacturer Plant Pictures
