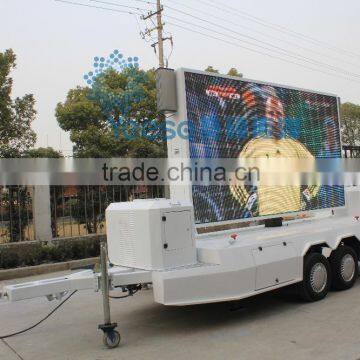

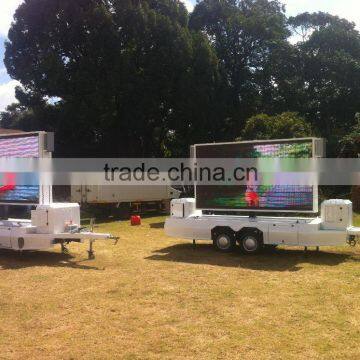

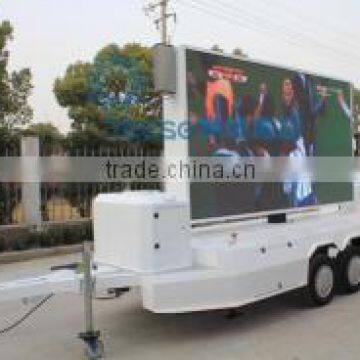

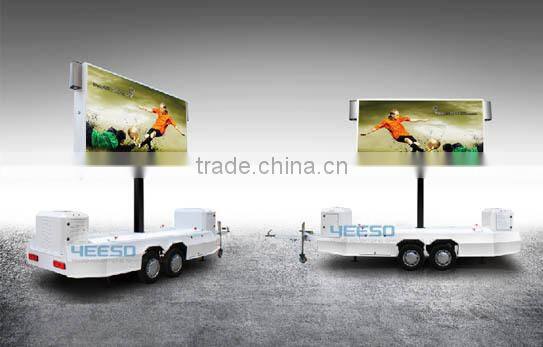

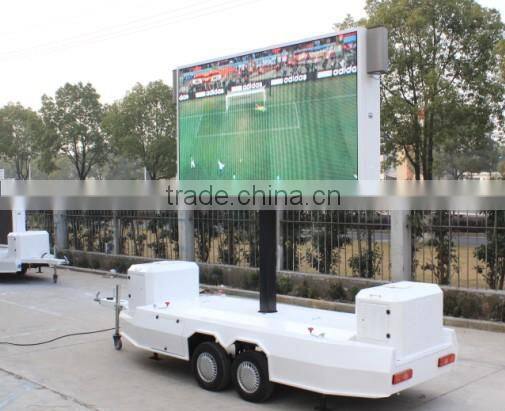

ONE) General images Outdoor large LED display screen advertising trailer,mobile LED TV display advertising vehicle:
TWO) Technical information of Outdoor large LED display screen advertising trailer,mobile LED TV display advertising vehicle :
Model |
YES-T5 |
||||
Trailer Chassis | |||||
Brand |
YEESO |
External dimension |
4900mm×1600mm×2550mm |
||
Turning radius |
6m |
Gross mass |
1350KG(excluding generator) |
||
Max Speed |
60km/h |
Braking system |
Hydraulic braking |
||
Tire size |
14 inch |
Tire quantity |
2 PCS |
||
Towing head |
standard towing head |
Wheel hub material |
Aluminum alloy |
||
LED Display System | |||||
Screen type |
Outdoor vehicle-mounted vibration-proof LED screen |
Protection level |
IP65 |
||
Screen size |
2880mm×1600mm |
Pixel pitch |
10 mm(outdoor) |
||
Chip |
R,G,B:EPISTAR |
Module size |
160mm(W)×160mm(H) |
||
Brightness |
≥7000cd/m² |
Max power consumption |
1000W/m² |
||
Life span |
100,000hours |
Average power consumption |
500W/m² |
||
Multi-media Control System | |||||
Control System |
Synchronous control system, 100W Speakers, power amplifier, video processor |
||||
Lifting & Rotating System for Screen | |||||
Lift type |
Hydraulic lifting system |
Lifting height |
1200mm |
||
Rotating type |
Hydraulic rotary system |
Rotation angle |
360 degree |
||
Silent Generator Set | |||||
Generator |
Vehicle-mounted special designed silent generator set, 5KW |
||||
Outer Frame | |||||
Frame Material |
1.5mm Cold rolled metal plate |
Surface Color |
Pure white car baking varnish |
||
Outer Power Supply Required | |||||
Input voltage |
AC380V |
Output Voltage |
AC220V |
||
Electrical Current |
16A |
Power consumption |
Average:0.8wh/m² |
||
THREE) Advantages of Outdoor large LED display screen advertising trailer,mobile LED TV display advertising vehicle trailer :
| Chassis brand: | Flexible and great mobility trailer chassis. It can keep static or be towed to run on the road with maximum speed 60km/h. It has almost all functions the led trucks own, and even much more flexible tha trucks. |
| LED Screen: | It uses imported EPISTAR chips,high level of illumination, long life-span, and high refresh frequency and easy to maintain. |
| Multi-media Control System: | Integrated control cabinet with industrial computer, amplifier, and operation buttons together. The speakers are equipped in the frame of carriage. |
| Generator set: | It is specialized designed for YEESO. Lower noie and stable |
| Lifting system : | Hydraulic lifting system, lifting range can be 1200~1500mm. |

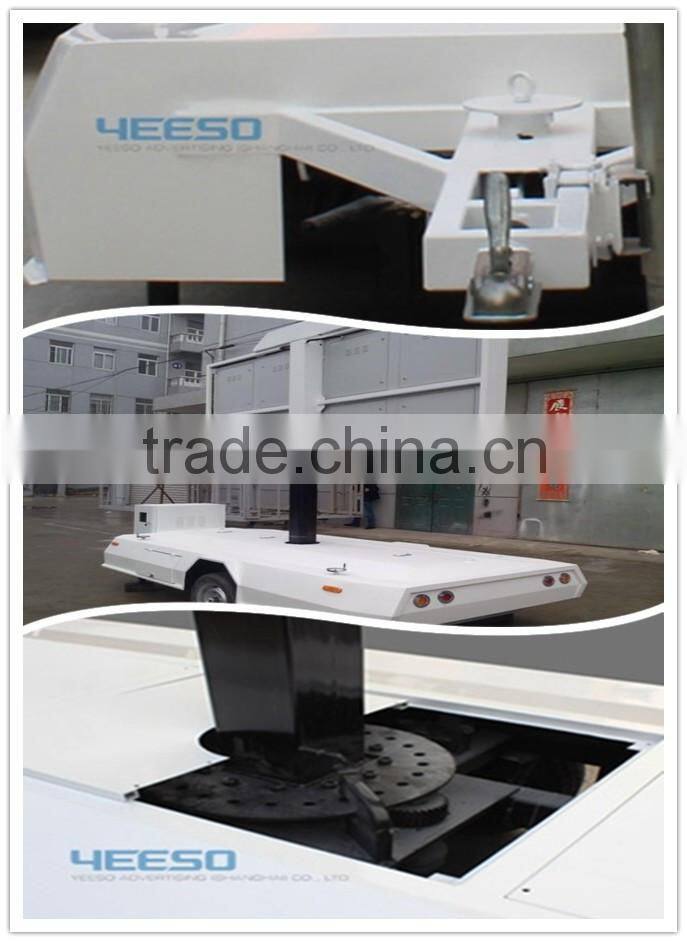

FOUR) Componets pictures of Outdoor large LED display screen advertising trailer,mobile LED TV display advertising vehicle :

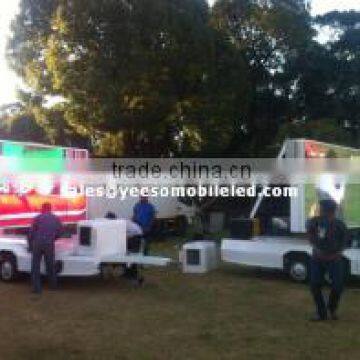

FOUR) Wide applications of Outdoor large LED display screen advertising trailer,mobile LED TV display advertising vehicle :
Yeeso Advertising & Media, with quite years' experience in Mobile LED Advertising Vehicles, can provide for you not only the competitive and high quality products, but also the
advertising and lighting integration solutions according to your specific demands and
requitements in your markets. Any questions, feel free to contact us!
