Specifications
1. ISUZU Truck chassis2. larger full color video display advertising billboard trailer
3. Scissor type lifting

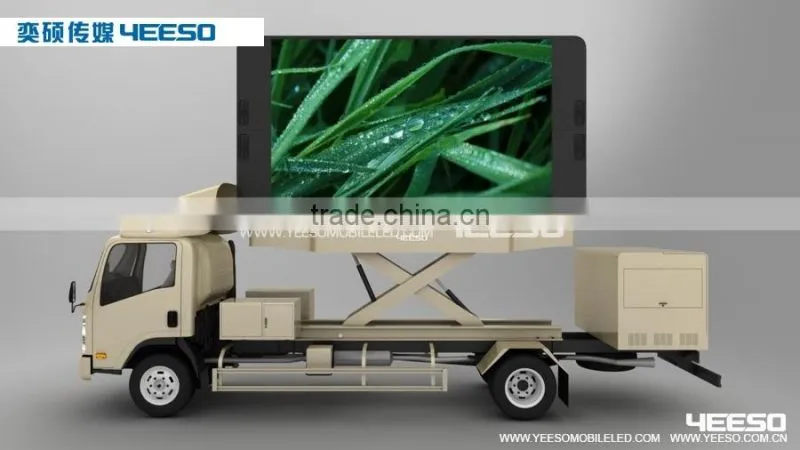

Outdoor Mobile LED Display Advertising Billboard Trailer YES-T12
1.Flexible. It could be moved to anywhere as you like very easily;
2 Full color High definition LED display screen, can play any videos any time.
3. Scissor type lfiting system, lifting height 2m, safe and provide very good and broad view to audiences.
4. well equipped with multi-media system and control system, could do any outdoor video advertising, promotion, live broadcast, camera feeds, Tv commericals etc.
5. Classic design makes it the most eye catching outdoor media.
Technical Parameters of Outdoor Mobile LED Display Advertising Billboard Trailer YES-T12
Model |
YES-T12 |
||||

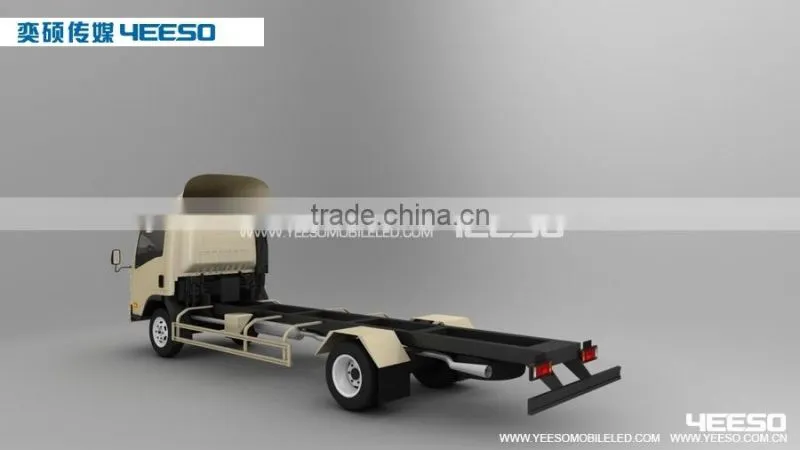

Chassis | |||||
Brand |
Yeeso |
External dimension |
6600mm×1820mm×2650mm |
||
Material |
16# manganese steel |
sheet metal structure |
1.2mm plate steel |
||
Tire |
650 rubber tire |
Gross mass |
4750KG |
||
Brake |
Manual and Hit hydraulic brake |
minimum turning diameter |
≤18000mm |
||

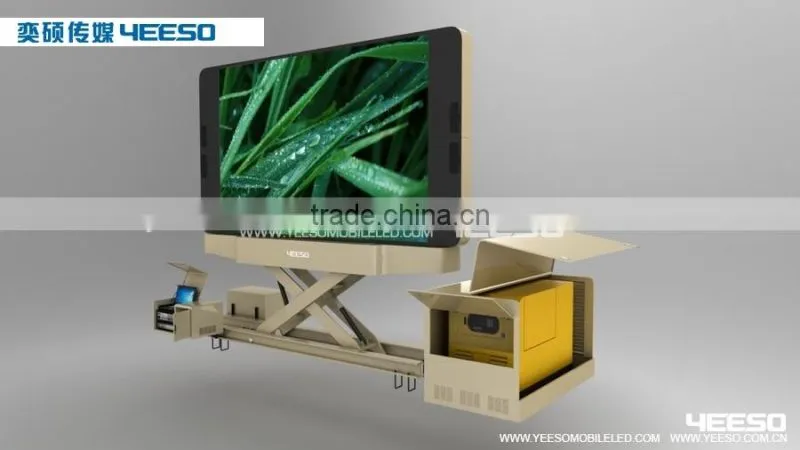

Scissor Type Hydraulic Lifting Platform and support system | |||||
Hydraulic lift platform |
Lifting type:Scissor,Platform size:3200mm×750mm×400mm Lifting height:2000mm,load bearing :5T |
||||
|
Supporting system
|
leading screw supporting legs system, Lifting height: 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up |
||||
LED screen | |||||
Screen size |
4800mm×2400mm=11.52 sqm |
Module size |
160mm(W) ×160mm(H) |
||
Chip |
R: Guanglei,G,B:Silan |
Pixel pitch |
10 mm |
||
Brightness |
≥6000cd/ sqm |
Max power consumption |
1200 W/ m |
||
Average power consumption |
600W/ m² |
Life span |
100,000hour |
||
Power supply | |||||
Input voltage |
three-phase five-wire 380V |
Output voltage |
220V |
||
Electrical current |
50A |
Power consumption |
average:0.5wh/sqm |
||
Multi-media control system | |||||
Industrial PC |
Processor: Dual Core CPU, display card:512,hard disk:320G,CD-ROM:DVD, internal storage:2G |
||||
Monitor |
KVM 15-inch LCD display |
Power amplifier |
unilateral power output:200W |
||
Speakers |
Max power consumption:200W |
Control system of LED screen |
Linsn/ZHOGNQING(The patent technology of point by point correction) |
||

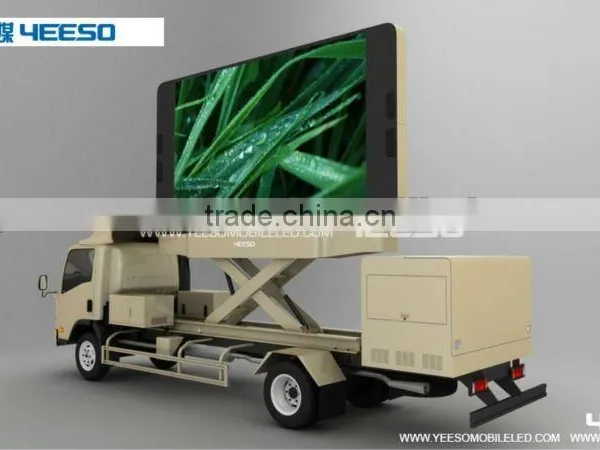

Product display of Outdoor Mobile LED Display Advertising Billboard Trailer YES-T12

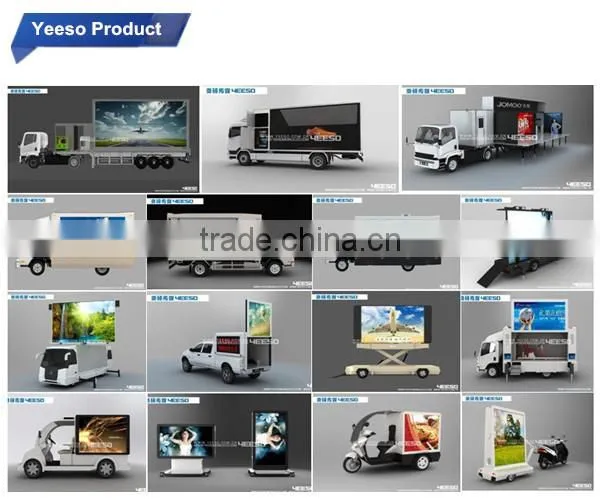

Yeeso Product

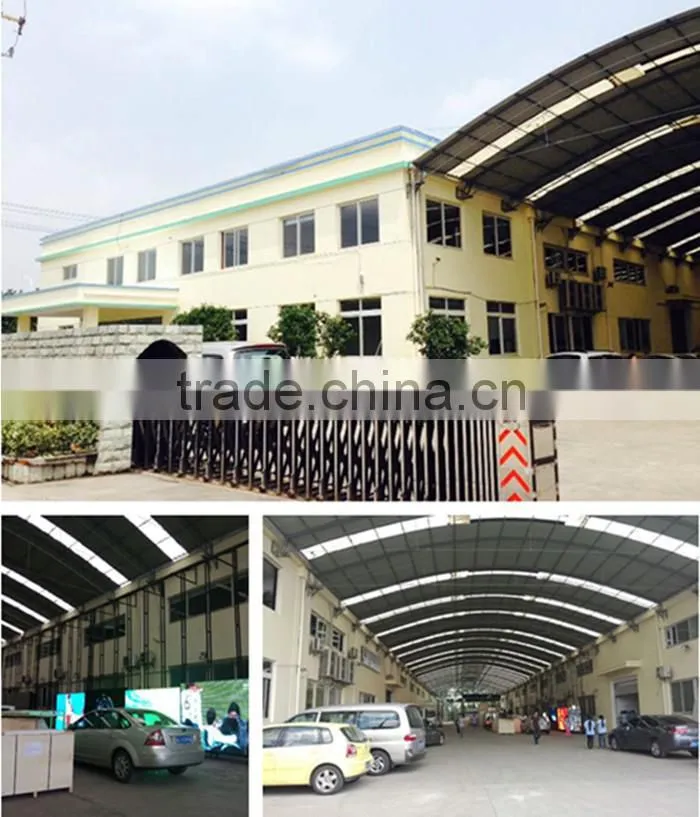

Yeeso Factory
Yeeso Certificates
