Movable Stage Performing Vehicle C40 :
1.Based on container(20'GP,40'GP,45'GP optional)
2.different size of the full color LED screen which can be lifted up and rotated
3.Sliding door panel
4.Equipped with perfect multimedia playing system
5.Built-in generator to provide electricity power
6.With portable stage,cruising and exhibition is possible
7.Newest design for road advertising,road show
Attachment: YES-C40 Technical parameters
C40 (with lifting system, truck head excluded)
Model |
YES-C40 ( Truck Chassis excluded) |
|||
Trailer Chassis(50#) | ||||
Brand |
SCGC |
External dimension |
13000mmx2550mx3900mm |
|
Curb weight |
23000KG |
Gross mass |
23000KG |
|
Hydraulic Lifting & Supporting System | ||||
Hydraulic lifting system |
Hydraulic lifting system; Lifting height: 1800mm |
|||
Hydraulic supporting system |
It can goes up 800mm,each afford 10T,its wind-proof level can reach to maximum level 8 when screen is lifted up |
|||
Extreme Super Silent Generator Set | ||||
External dimension |
1510mm×900mm ×1060mm |
Power |
16KW |
|
Power type |
KIPOR |
Number of cylinders |
Water-cooled inline 4-cylinder |
|
Air displacement |
1.995L |
Bore*stoke |
84mm×90mm |
|
LED screen | ||||
Main Screen size |
5120mm×2240mm |
Module size |
320mm(W) ×320mm(H) |
|
Chip |
R,G,B; EPISTAR |
Pixel pitch |
8mm |
|
Brightness |
≥6500cd/m² |
Max power consumption |
1200W/m² |
|
Power consumption |
Average: 500W/m² |
Life span |
100,000hours |
|
Power Supply | ||||
Input voltage |
Three phases, five wiring , 380V |
Output voltage |
220V |
|
Electrical current |
50A |
Power consumption |
Average:0.5wh/m² |
|
Multi-Media Control System | ||||
Industrial PC |
Processor:Dual Core CPU; PCI-E:1G; Hard disk:500G; CD-ROM: DVD; Memory:2G |
|||
Monitor |
KVM 15-inch LCD display |
Power amplifier |
unilateral power output:200W*2 |
|
Speakers |
Max power consumption:200W×4 |
Control system of LED screen |
LINSN (technology of point by point correction) |
|
Outer Frame and Inner Decoration | ||||
Material |
Cold rolled metal plate |
Surface car baking varnish |
pure white |
|
Inner decoration |
Fire Retardant Board |
Waterproof processing |
Vehicle plastic irrigation processing |
|
Stage On board | ||||
Stage Size |
9mx3.5m |
Loading Capacity |
150kg/m² |
|
Vehicle Specified Air Conditioner |
4000w(cooling)/1600w(heating) |
Video Processor |
Video Processor for Live Broadcast |
|

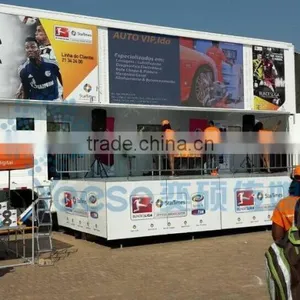

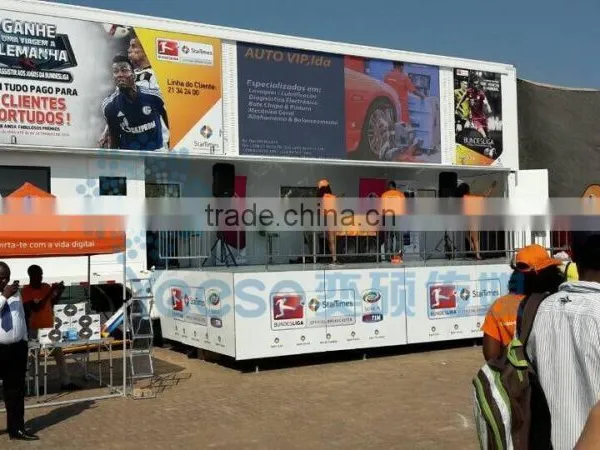

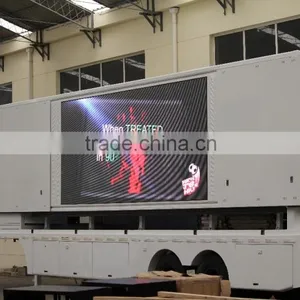

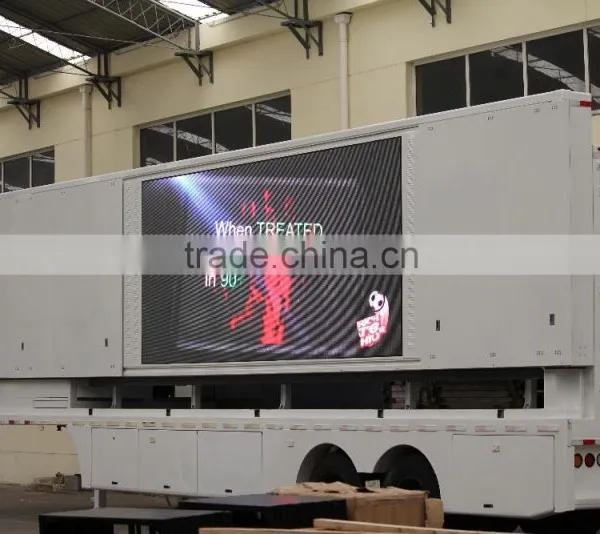

Pictures Show
YEESO Advertising & Media (Shanghai) Co., Ltd is an international leading manufacturer & Solutions Provider for Mobile LED Ad Vehicles with global strategies,global layout, to enhance your brand value anytime, anywhere as you wish. Yeeso, with its strong technology, capable management team, already among the industry's top service providers as well.
YEESO owns a production base of 10,000square meters which enables us to provide more than 50 mobile advertising vehicles of any type every month. Our solution team consists of great and sharp leaders, creative & outstanding R&D, professional engineers and responsible account managers, who could support us providing the most profitable comprehensive advertising platform for our customers from the operation side as well as the investment side. YEESO provide creative, direct and effective advertising planning program to any customer, to create a media empire on wheels for you.
YEESO focuses on providing a comprehensive solution of outdoor mobile led vehicles. At any budget, in any size, for any issue, you will find your ideal and unique promotion solution here. Yeeso’s products include large led truck series, led truck series, election car series, government authorities car series, 3D car series, led trailers series, led container series, etc which can be applied to mobile media, brand promotion, sales promotion, road-show cruise, public election, sport events, popular concerts, festivals, exhibitions and political campaigns etc.
With a global view, YEESO has always been utilizing our own technologies as the core competencies along with our leading manufacturing management system, comprehensive operation system and international sales teams which aim at the international market with our productions, sales, research and development bases in Shanghai. Our products are now sold across Europe, Australia, South America, Africa, Southeast Asia, Middle East, West Asia, and so on. Moreover, we have a branch in Australia and a sale company in Europe. And we also have sales agent in Middle East, Africa, Australia, Southeast Asia.
