Specifications
1. 40ft container trailer, easy to be towed by truck head.2. Big led video display screen
3. larger stage for show
YEESO Mobile LED Container Truck with big portable stageYES-C40
1.Based on container(20'GP,40'GP,45'GP optional)
2.different size of the full color LED screen which can be lifted up.
3. Big size led video display screen
4.Equipped with perfect multimedia playing system
5.Built-in generator to provide electricity power
6.With portable stage,cruising and exhibition is possible

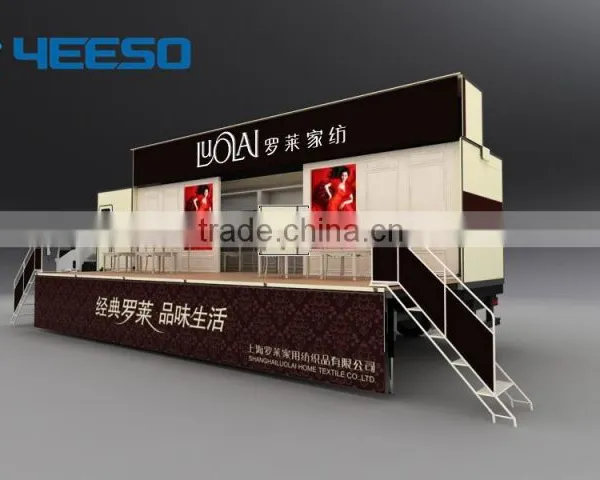

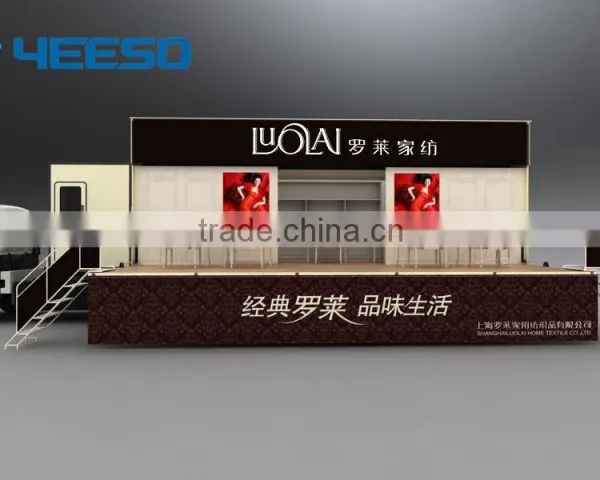

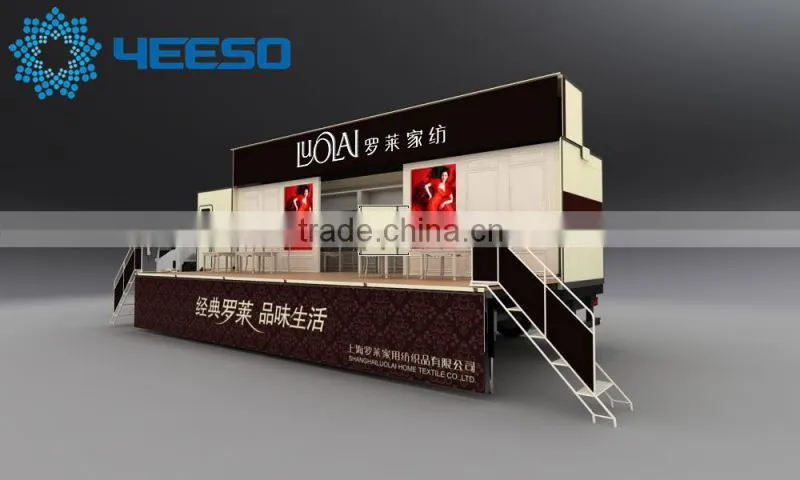

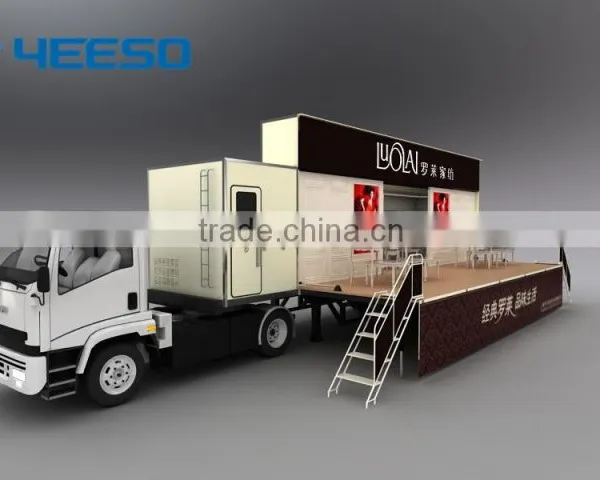

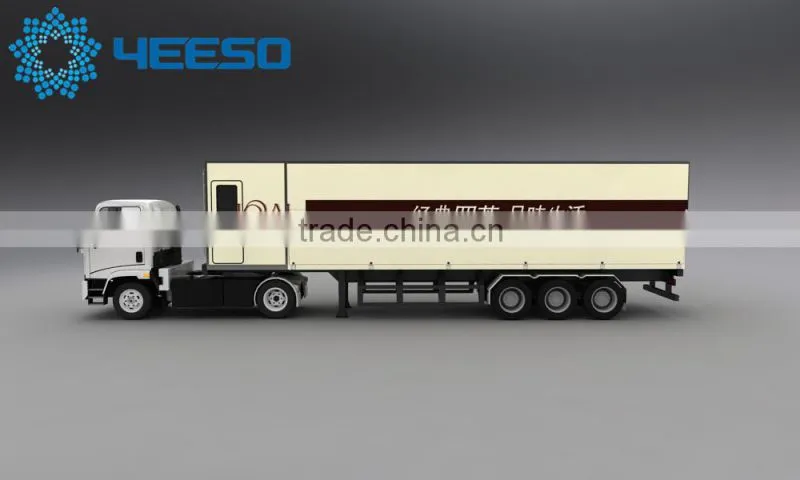

Product display YEESO Mobile LED Container Truck with big portable stage YES-C40
Technical Parameters of YEESO Mobile LED Container Truck with big portable stageYES-C40
Model |
YES-C40A(Experience container) |
||||
Chassis | |||||
Brand |
SCGC |
External dimension |
12000mm×2535mm×2650mm |
||
Curb weight |
10000KG |
Gross mass |
36000KG |
||
Hydraulic Lifting & Supporting System | |||||
Hydraulic lifting system |
Electric putt (Germany technology) Lifting height: 2000mm,afford 5T,synchronous error:1mm |
||||
Hydraulic supporting system |
It can goes up 800mm,each afford 10T,its wind-proof level can reach to maximum level 8 when screen is lifted up |
||||
Extreme Super Silent Generator Set | |||||
External dimension |
1650mm×900mm×1110mm |
Power |
20KW |
||
Power type |
KIPOR |
Number of cylinders |
Water-cooled inline 4-cylinder |
||
LED screen | |||||
Main Screen size |
7360mm×2400mm |
Module size |
160mm(W) ×160mm(H) |
||
Chip |
R’G’B; EPISTAR |
Pixel pitch |
10mm |
||
Brightness |
≥6000cd/m² |
Max power consumption |
1200W/m² |
||
Power consumption |
Average: 600W/m² |
Life span |
100,000hours |
||
Power Supply | |||||
Input voltage |
Three phases, five wirings,380V |
Output voltage |
220V |
||
Electrical current |
50A |
Power consumption |
Average:0.5wh/m² |
||
Multi-Media Control System | |||||
Industrial PC |
Processor:Dual Core CPU; Display card: 512; Hard disk:500G; CD-ROM: DVD; Internal storage:2G |
||||
Monitor |
KVM 15-inch LCD display |
Power amplifier |
unilateral power output:200W*2 |
||
Speakers |
Max power consumption:200W×4 |
Control system of LED screen |
LINSN,Synchronous control system, (technology of point by point correction) |
||
Outer Frame and Inner Decoration | |||||
Cold rolled metal plate |
1.5mm |
Surface car baking varnish |
pure white |
||
Inner decoration |
Fire Retardant Board |
Waterproof processing |
Vehicle plastic irrigation processing |
||
Stage on Board | |||||
Stage size |
10mx4m |
Loading capacity |
150kg/m² |
||
YEESO Advertising & Media (Shanghai) Co., Ltd is an international leading manufacturer & Solutions Provider for Mobile LED Ad Vehicles with global strategies,global layout, to enhance your brand value anytime, anywhere as you wish. 15,000square meters production base located in Shanghai; more than 50 mobile advertising vehicles of any type every month!

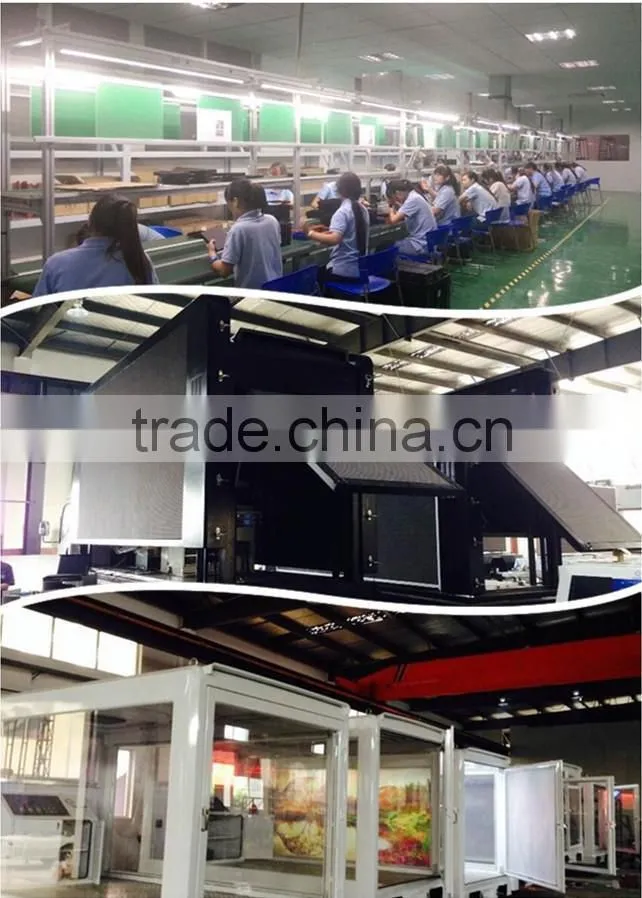

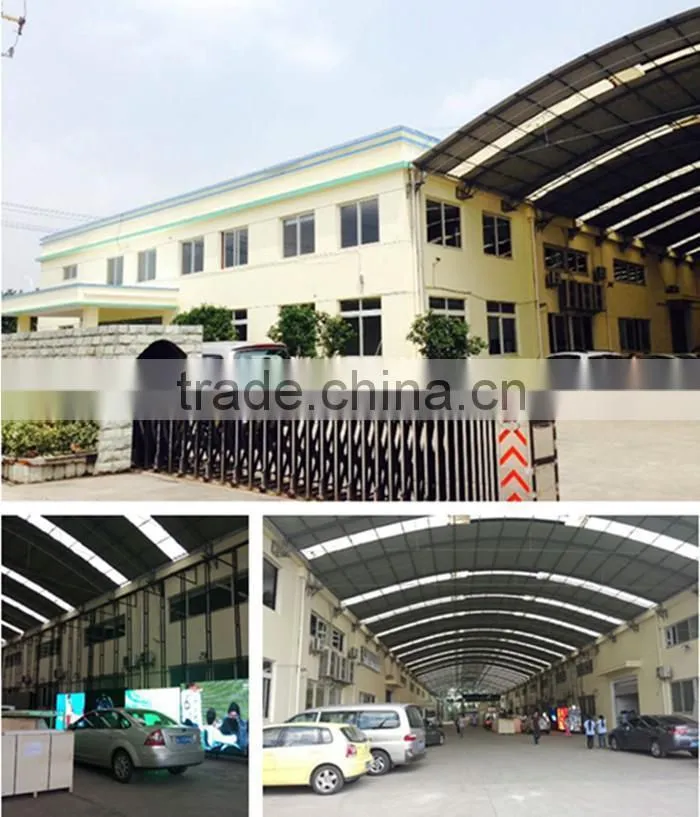

Factory Overview Factory workshop

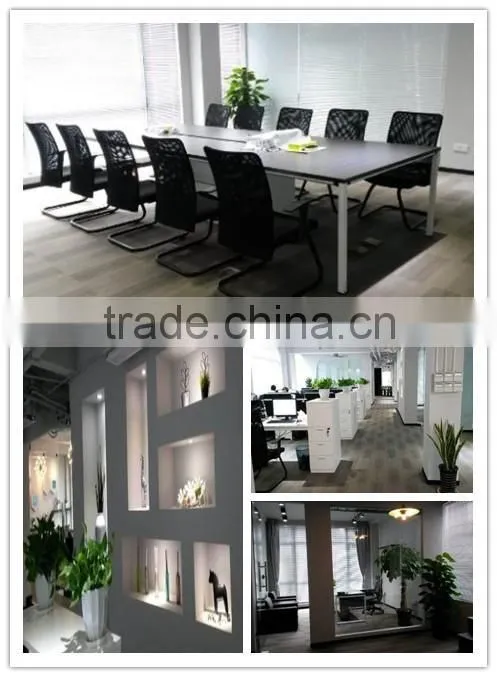

Marketing office Mareketing Group
Leading Solution Provider for Customized Products of Mobile Media Vehicles!
Yeeso Certificates
