Copartner
Founded in 1987, Copartner Tech Corp. has been a leading manufacturer of cable and wire products. For more than twenty years, we supply products for information, communications and electronics industries around the world. In the area of electronics and communications, we have established a huge customer base and partnerships with many well-known companies from Europe, America, Australia, Japan, and South-East Asia.
In 1993, Copartner made an initial investment and formed its first company in China - Copartner Wire & Cable (Shenzhen). As the business grows steadily, we have continuously extended investment in China. Today, there are more than ten companies under Copartner Tech Corp. We have also set up R&D laboratories in various sites to ensure product quality, to meet market demand, and to accomplish innovation.
All products from Copartner are designed by most advanced AI philosophy, cutting-edge technology, and excellent sense of artistry; through professional experiments and accurate testing, we guarantee that every product made by Copartner come with the most satisfactory quality. With professional enthusiasm, we provide complete customer services, strong R&D capabilities, and excellent product quality control. All of the advantages contribute to establishing a more-important-than-ever position for Copartner in the global market. Leading the world into the new era of digital economy, we use our unique professional skills intergraded with customized services to provide brand new technology-based product solutions. By connecting the future, we create the win-win strategy for each of our customers.

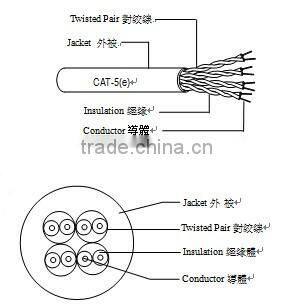

Unshielded CAT.5 or CAT.5e
• Rated temperature: 60℃, 75℃
• Reference standard: UL 444
• Bare solid or stranded copper conductor 24AWG.
• Color-Coded PE insulation.
• Pass UL Riser Flame Test and CSA FT4 Flame Test.
• Electrical Properties:
• DC-Resistance at 20℃ 9.38Ω/100M.
• DC-Resistance unbalance Max.5%.
• Impedance at 1 ~ 100MHz: 100±15%Ω
Applications:
Can be used as horizontal wiring or riser cable.

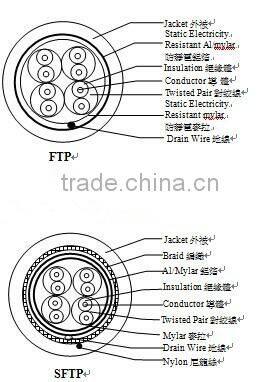

SHIELDED CATEGORY 5E
• Rated temperature: 60℃, 75℃
• Rated voltage: 300 volts.
• Reference standard: UL 444,TIA/EIA 568B,ETL & 3P.
• Solid or stranded copper conductor.
• Color-Coded PE insulation.
• Pass UL CMR and CSA FT4 Flame Test.
• Electrical Properties:
• DC-Resistance at 20℃ Max. 9.38Ω/100M.
• DC-Resistance unbalance Max.5%.
• Impedance at 1 ~ 100MHz: 100±15%Ω
Applications:
Support various wiring constructions & transmission media, such as voice, digital, message, image & video frequency communication, etc. LAN.
Shielded CAT 5e, usu. used in strong EMI environments, can transmit a higher data rate.

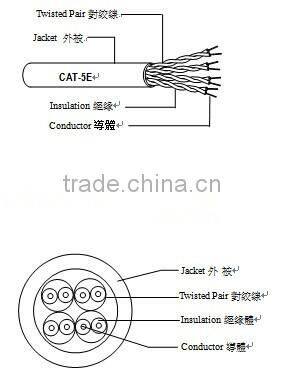

UNSHIELDED CATEGORY 5E
• Rated temperature: 60℃, 75℃
• Rated voltage: 300 volts.
• Reference standard: UL 444
• Solid copper conductor, 24AWG.
• Color-Coded FEP insulation.
• Jacket: Smoke Guard PVC
• Pass UL CMP Flame Test.
• Electrical Properties:
• DC-Resistance at 20℃ Max. 9.38Ω/100M
• DC-Resistance unbalanced Max.5%.
• Impedance at 1 ~ 100MHz: 100±15%Ω
Applications:
Support various wiring constructions & transmission media, such as voice, digital, message, image & video frequency communication, etc. LAN.
Used in high-speed, high-capacity, multimedia, integrated data traffic, data communication network in Intelligent Building.
UNSHIELDED CATEGORY 6
• Rated temperature: 60℃, 75℃
• Rated voltage: 300 volts.
• Reference standard: UL 444,TIA/EIA 568B,ETL & 3P.
• Solid copper conductor.
• Color-Coded PE insulation.
• Pass UL Riser Flame Test and CSA FT4 Flame Test.
• Electrical Properties:
• DC-Resistance at 20℃ Max. 9.38Ω/100M
• DC-Resistance unbalanced Max.5%.
• Bandwidth: 250 Mhz
Applications:
Support various wiring constructions & transmission media, such as voice, digital, message, image & video frequency communication, etc. LAN.
Compared with CAT 5 & 5e, CAT 6 has broader width & better performance, thus can transmit a higher data rate.
Packaging
We will packed as customer request.
