High quality wirerope electric hoist 3 ton:
CD model electric hoist has only one normal speed ,which can satisfy normal application. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.
CD&MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.
The standard capacity of this type electric hoist: 0.5T, 1T, 2T, 3T, 5T, 10T, 16T, 20T.
Lifting height: 6m, 9m, 12m, 18m, 24m, 30m, and Max. 100m.
Main technical data
The general details of wire rope electric hoist with standard type | |||||
Model |
CD |
MD |
|||
Capacity (ton) |
0.5, 1, 2, 3, 5 |
10, 16, 20 |
0.5, 1, 2, 3, 5 |
10, 16, 20 |
|
|
Travelling mechanism |
Travelling Speed (m/min) |
10, 20, 30 |
10, 20, 30 |
|
|
Motor (kw) |
1x0.4, 1x0.8 |
2x0.8, 4x0.8 |
1x0.4, 1x0.8 |
2x0.8, 4x0.8 |
|
|
Lifting mechanism |
Lifting Speed (m/min) |
8 |
7, 3.5 |
8/0.8 |
7/0.7, 3.5/0.35 |
|
Lifting height (m) |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
|
Motor (kw) |
0.8, 1.5, 3.0, 4.5, 7.5 |
13 |
0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 |
13/1.5 |
|
Duty Class |
M3 |
||||
Power source |
380V, 50HZ, 3 phase (or other standard) |
||||
Working temperature |
-20~40°C |
||||
Branch of rope |
2 ropes(0.5t~5t), 4 ropes(10t~20t) |
||||
Brake |
Mounted on motors |
||||
Control model |
Pendant pushbutton control or wireless remote control |
||||

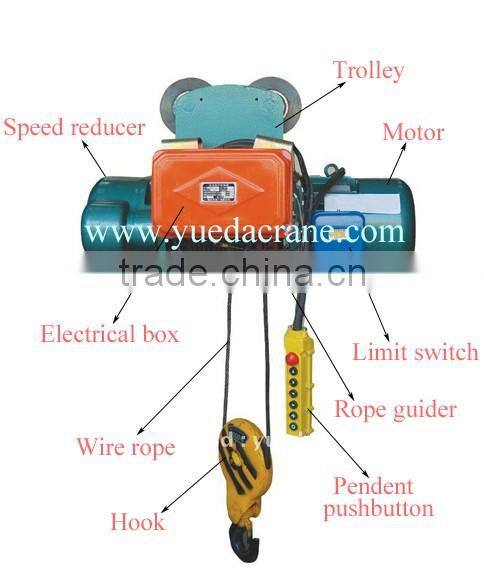

The photo of hoist:

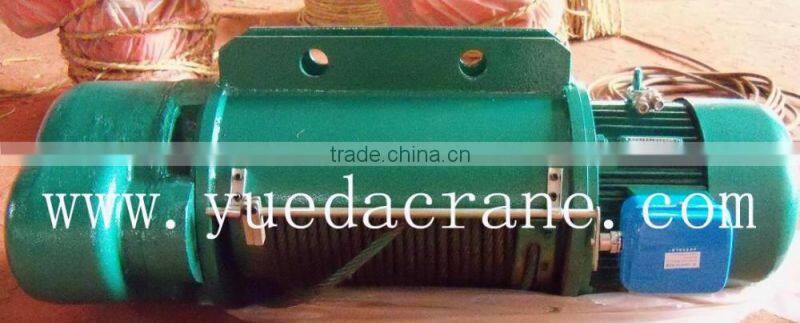

Lifting unit of electric hoist:
The travelling unit of electric hoist:
The lifting motor of electric hoist:
The wire rope guider of electric hoist:
The electrical control box of hoist with Siemens brand contactors and pendant pushbuttons control:
The package of hoist for delivery:
