1 ton to 20 ton mini electric hoist
CD&MD model wire rope electric hoist is a kind of light-duty lifting equipment with electric hoist.
CD model electric hoist has only one normal speed ,which can satisfy normal application. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.
The standard capacity of this type electric hoist: 0.5T, 1T, 2T, 3T, 5T, 10T, 16T, 20T..
Lifting height: 6m, 9m, 12m, 18m, 24m, 30m, and Max. 100m..
We can also produce other type electric hoist:
1). Frequency inverter functionl electric hoist;
2). Wire rope electric hoist;
3). Low headroom type electric hoist;
4). wire rope explosion-proof electric hoist;
5). Curve travelling electric hoist .
Main technical date of electric hoist | |||||
Model |
CD |
MD |
|||
Capacity (ton) |
0.5, 1, 2, 3, 5 |
10, 16, 20 |
0.5, 1, 2, 3, 5 |
10, 16, 20 |
|
|
Travelling mechanism |
Travelling Speed (m/min) |
10, 20, 30 |
10, 20, 30 |
|
|
Motor (kw) |
1x0.4, 1x0.8 |
2x0.8, 4x0.8 |
1x0.4, 1x0.8 |
2x0.8, 4x0.8 |
|
|
Lifting mechanism |
Lifting Speed (m/min) |
8 |
7, 3.5 |
8/0.8 |
7/0.7, 3.5/0.35 |
|
Lifting height (m) |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
|
Motor (kw) |
0.8, 1.5, 3.0, 4.5, 7.5 |
13 |
0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 |
13/1.5 |
|
Duty Class |
M3 |
||||
Power source |
380V, 50HZ, 3 phase (or other standard) |
||||
Working temperature |
-20~40°C |
||||
Branch of rope |
2 ropes(0.5t~5t), 4 ropes(10t~20t) |
||||
Brake |
Mounted on motors |
||||
Control model |
Pendant pushbutton control or wireless remote control |
||||

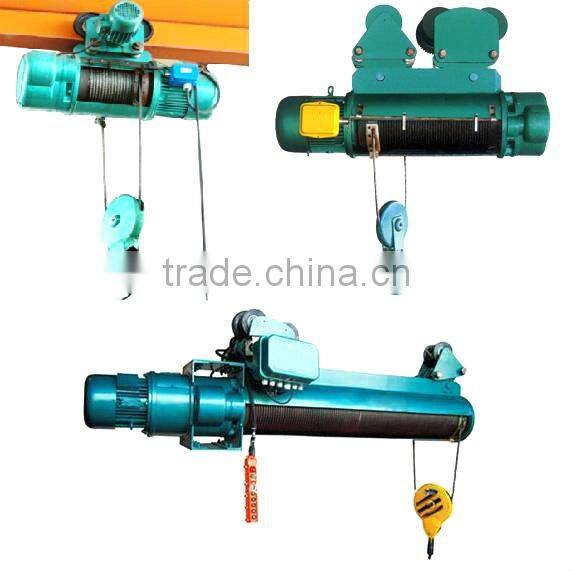

The photos of electric hoist:
The lifting motor of electric hoist:
The travelling unit of electric hoist:
The wire rope guider of electric hoist:
The main limit witch for upward/downward motions & second limit switch for upward motion:
The hook has safe latch, and 360 grade turning:
The electrical control box of hoist with Siemens brand contactors and pendant pushbuttons control:
The package of hoist for delivery:
If you are interested in our electric hoist, please confirm the below information and send inquiry to me.
1. Capacity of crane
2. Lifting height
3. Power source
Looking forward to your inquiry.
