Plastic Pipe-expanding Machine

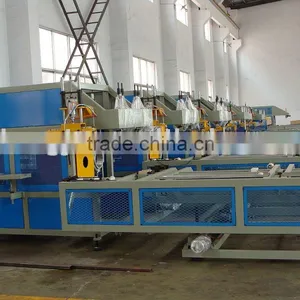

Plastic Pipe-expanding Machine thumbnail-1
Plastic Pipe-expanding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
KLONG
Contact Supplier Request Quote Chat Now
Suzhou Kailong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name KLONG
Certification CE
Warranty 15 months after shipment
After-sales Service Provided Engineers available to service machinery overseas



Product description:



plastic  pipe belling machine
plastic pipe-expanding machine/equipment
plastic pipe auxiliary machinery/expander



1, Plastic pipe belling machine expander with drawing device and program interface concerned is used with extruding machine. It is also used solitarily.



2, while expanding pipes, the machine adopts translation. The action is steady and correct. It does not damage pipe materials.



3, the machine adopts double-infrared heating oven type. Each oven is equipped with heating core.



4, the shaping method adopts expanding end shaping. The size of pipe mouth is correct.



5, on its panel, there is a transfer switch of expanding solvent type pipe socket (Straight port) and expanding seal loop type socket(R port). The choice of expanding pipe types is very convenient. The technological adaptability is strong.



6, its main electric control elements are all exported. The system characteristics are steady and reliable.



2,Main Technical Parameter

Out diameter of pipe

Φ160-400mm

Compressed air pressure:

0.4-0.6Mpa

Length of work piece size

4-6m

Water pressure

0.2-0.3 Mpa

Hydraulic System

Electrical system

Oil pump motor type

Y132-4, 5.5KW

PLC

FXIN-40MR-001+FXON-40ER

Rotate speed

1000RPM

Total power

28KVA

Variable vane pump type

YBX-D32V3

Voltage

AC380V; 50HZ

Rating pressure

6.3Mpa

Overall dimension

7500×3150×2100mm

Range

0-22L/min

Total weight

4500kg

Hydraulic oil

#46antiwear hydraulic fluids

Center height

1000±10mm

Heating system

Working time

2-40pcs/h

Power of heating stove

1 kw×12+0.7kw×2=13.4kw

Machine system



Power of heating stove

1 kw×12+0.7kw×2=13.4kw

Electrical system, hydraulic system, pneumatic system

Max temperature of hot air

380

Adopt SKT series belling mould

Gas-water system
