Feature:

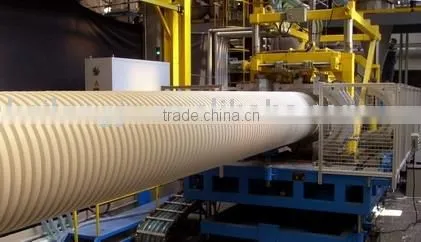

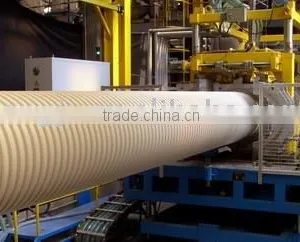

Double-wall Corrugated Pipe Extrusion Line
double wall corrugated pipe making machine
double wall corrugated pipe line
1, Advantage: It is fully computer controlled, automatic production line ( Φ200-Φ600 ), highly and stable output capacity, and highly automatic operation.
2, Extruder: the extruder can be designed by materials, for HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin screw extruder or parallel twin screw extruder.
3, The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they are equipment with air or water cooling system. The production line can also be equipment with Siemens company logic control system.
4, Mian Technical Parameters:
|
Model Parameters |
BW-1V series |
BW-1VA series |
Power |
11kw |
15kw |
Mould Specification |
Φ200mm~Φ400mm |
Φ300mm~Φ600mm |
Mould Material |
Special aluminum alloy |
Special aluminum alloy |
Mould Perimeter |
7 m |
7 m |
Mould cooling way |
Air cooling |
Air cooling |
Production Speed |
0.5m~2m/min |
0.5m~2m/min |
Production Material |
PVC/HDPE |
PVC/HDPE |
Main Machine |
Twin-screw extruder/ single screw extruder |
Conical twin-screw extruder/single screw extruder |
