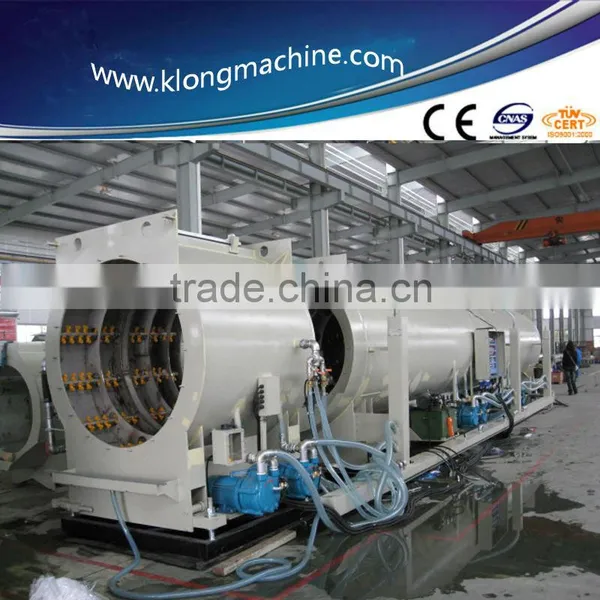

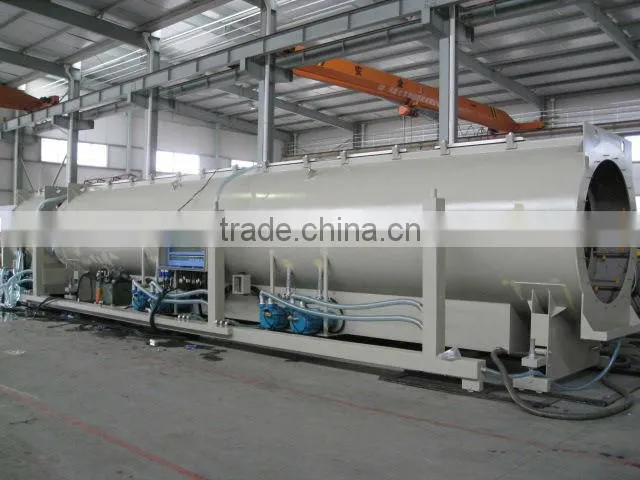

Help CenterHDPE Large Diameter Pipe Extrusion Machine
Related Products
Specifications
1. HDPE pipe extrusion machinery2. Capacity: 700-800kg/h.
3. Total power: 560kw.
4. HDPE large diameter pipe extrusion
HDPE large diameter pipe machine
HDPE pipe extrusion machine
HDPE pipe extrusion machinery
HDPE large diameter pipe extrusion machine
Application of the Pipes Produced:
HDPE pipe extrusion line
Configuration:

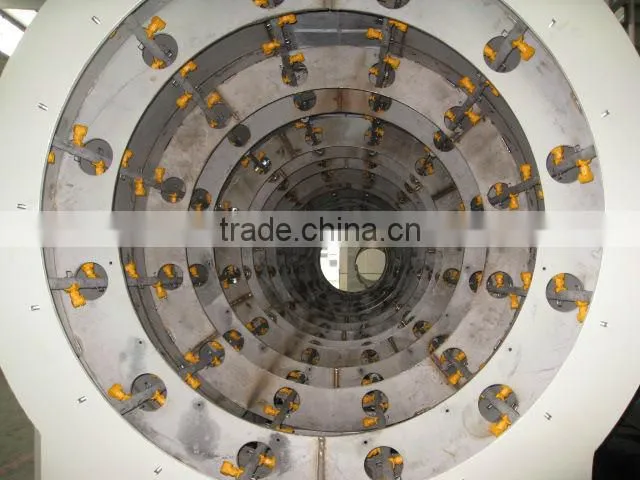

It contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.
Application:
It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on.
Description:
Single screw extruder, very suitable to process HDPE resin with high capacity, max capacity can reach 1000kg/h
The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
Diameter range is 16mm-800mm, which can be changed into inch standard to meet clients’ special requirement.
Characteristic:
Pipe range |
16-63mm |
20-110mm |
75-160mm |
90-250mm |
110-315mm |
160-450mm |
315-630mm |
500-800mm |
Extruder |
¢45mm |
¢60mm |
¢75mm |
¢75mm |
¢90mm |
¢90mm |
¢120mm |
¢150mm |
Extruder power |
AC30kw |
DC75kw |
DC110kw |
DC110kw |
DC160kw |
DC160kw |
DC280kw |
DC335kw |
Extrusion capacity |
60-100kg |
100-150kg |
250-300kg |
250-300kg |
350-400kg |
350-400kg |
650-700kg |
850-900kg |
Max. production speed |
10m/min |
6m/min |
6m/min |
6m/min |
3 m/min |
1.2m/min |
0.9m/min |
0.7m/min |
Welcome to receive your inquiry for more information!
