cnc turning lathe price
1. cnc turning lathe price CK6152E features

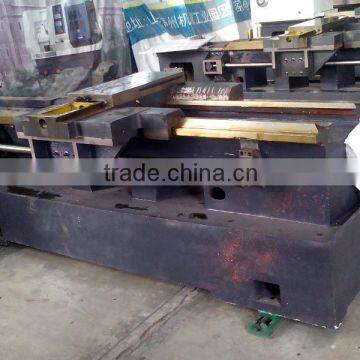

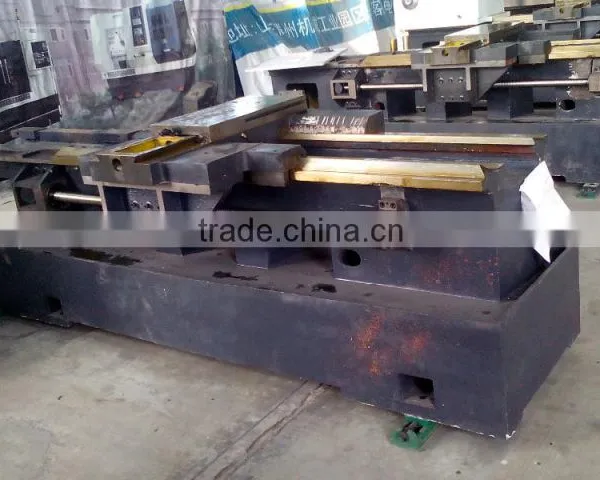

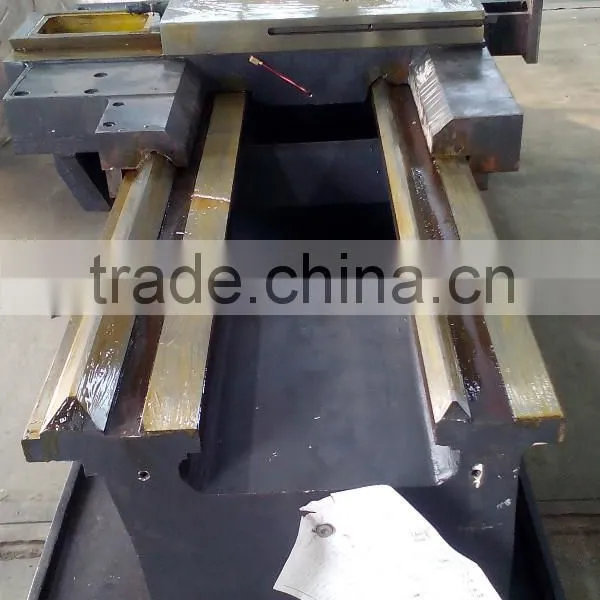

high stability one-piece machine bed
3 gear spindle speed, stepless in gear
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
guide width 440 mm
2. cnc turning lathe price specification
| cnc turning lathe price CK6152E | ||
| Capability | Max. swing dia. over bed | 530mm |
| Max. swing dia. over cross slide | 300mm | |
| Max. processing length | 825/1352mm | |
| Spindle | Go-ball dia. of spindle | 90mm |
| Spindle taper | 100 1:20 | |
| Spindle speed | 30-150, 90-450, 315-1600 rpm | |
| Spindle nose | A8 | |
| Main motor power(Variable frequency) | 7.5Kw | |
| X/Z | X/Z position accuracy | 0.02/0.025 |
| X/Z repeatability | 0.01/0.012 | |
| X/Z rapid feeding speed | 6/10 m/min | |
| Work piece | Processing accuracy | IT6-IT7 |
| Rough degree of proessing surface | Ra1.6 | |
| Tool holder | Type | 4-position electric type |
| Tool bar size | 25*25mm | |
| Tool holder travel | X320mm, Z1050/1550mm | |
| Dimension | 2570/3070 *1550*1710mm | |
| Net weight | 3150/3400kg | |
3. cnc turning lathe price CK6152E warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine
for customer convenience.
4. cnc turning lathe price CK6152E standard accessories
electric 4-position tool turret
manual three-jaw chuck 250 mm
manual tailstock
auto matic integrated lubrication system
coolant system
lighten system
tools and tool box
5. cnc turning lathe price CK6152E optional accessories
steady rest
follow rest
chip conveyor
6.CE, ISO9001, ISO1400 certificates
To choose the most suitable and economic CNC lathe model, please kindly tell the
following info. in details
work piece material and usage, solid type or hollowed type ( pipe type), list all of outer diameters
and inner diameter, drawings is best to be sent to us too.
Click " send " now and learn more about our products.
