Help CenterJ35 Small Cnc Lathe for Sale
Related Products
small cnc lathe for sale
1. J35 small cnc lathe for sale specification
| small cnc lathe for sale | J35 |
| Max. swing dia. over bed | 230 mm |
| Max. swing dia. over cross slide | 125 mm |
| Max. processing length | 200 mm |
| Through hole dia. of speed | 50 mm |
| Through hole dia. of drawing pipe | 41 mm |
| x/z repeated position accuracy | 0.012/0.013mm |
| x/z torque | 4/4 N.m |
| x/z rapid feeding speed | 8/10m/min |
| Spindle speed | 150-2500rpm |
| Tool holder | 4 tool electric tool post |
| Main motor power | 4 kw |
| Dimension | 1420*1120*1750 |
| Net weight | 850kg |
2.small cnc lathe for sale J35 Feature
1. High compatibility -- The CNC programming system adopts the international ISO code and keyboard input, could realize data transmission with PC by RS232 communication port.
2. High and long term stability--Machine cast is of hardness over HRC45 degrees after HRC hardening
3. Higher rotation speed and higher rigidity ---Spindle bearing adopts the high-precision angular contacting bearing; specially designed pre-load
ensures the higher rotation speed and higher rigidity.
4. Outstanding dynamic performance and high positioning accuracy --The carriage in both vertical and horizontal direction is driven by highprecision ball screws, which has satisfactory
dynamic performance and high positioning accuracy.
3.Standard accessories for J35 small cnc lathe for sale
GSK980TDC or Siemens 808d NC system
inverter motor 3kw
4 station gang type tool post
spring collet
4.Optional accessorie for J35 small cnc lathe for sale
KND100Ti or Fanuc 0I mate-TD
servo motor 3.7/5.5 kw
inverter motor 4 kw
4 station electric turret
5" manual chuck
6" manual chuck
tailstock
auto feeder device
5.Warranty for all of small cnc lathe
1. engineers are available to do oversea machinery service. In some countries, we have oversea
agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.We offer best agent price and distributer price.
6.Customer and delivery
1.accept ODM, OEM,
2.accept FOB, CFR, CIF, EXW price,
3.T/T 30% as deposit and the balance before machine tools leave our factory.
4.normal products with standard configuration manufacturing time is 7-15 working days.

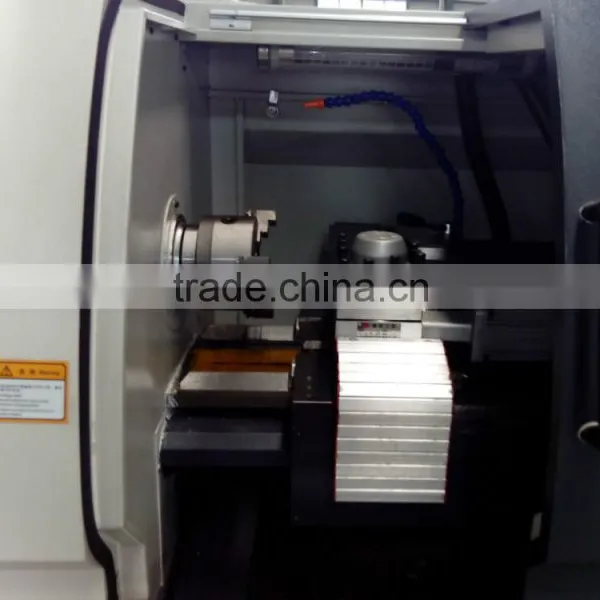

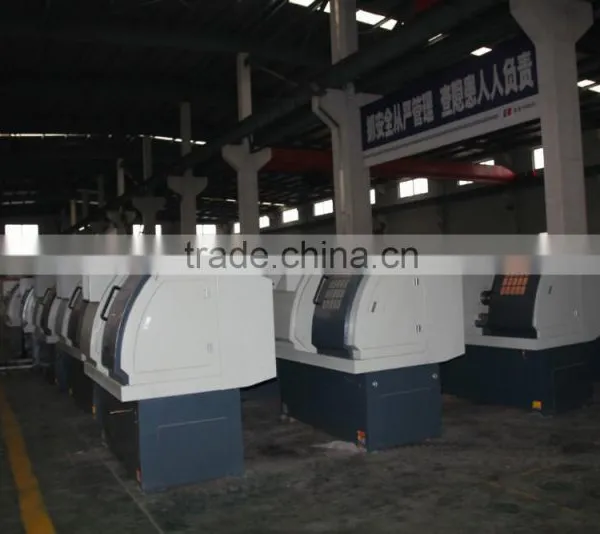

7. Pictures of small cnc lathe
To choose the most suitable and economic CNC lathe model, please kindly tell the following
info. in details
piece material and usage, solid type or hollowed type ( pipe type),
2. list all of outer diameters and inner diameter,
3. drawings is best to be sent to us too.
4. special requirement
Click" send " now and learn more about our products.
