cnc lathe machine

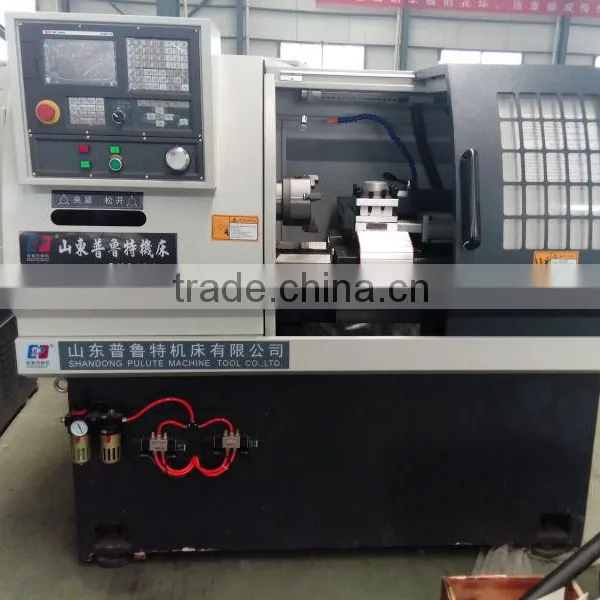

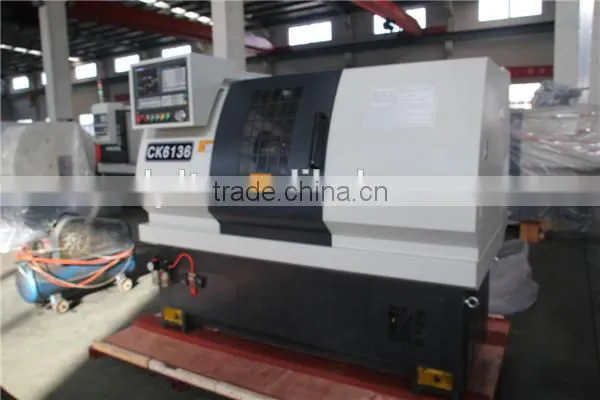

CK6136 cnc lathe machine specification
cnc lathe machine |
CK6136 |
|
Capacity | ||
Swing over bed |
mm |
Φ380 |
Max rotative diameter on carriage |
mm |
Φ190 |
Max processing length |
mm |
Chuck 480/Collect550 |
Spindle | ||
Spindle nose |
A2-6 |
|
Through-hole dia. of spindle |
mm |
Φ48 |
Through-hole dia. of drawn pipe |
mm |
Φ40 |
Spindle speed range |
r/min |
150-2200 |
Main motor power |
kw |
5.5 |
Slides | ||
X axis travel |
mm |
280 |
Longitudinal(Z axis) travel |
mm |
580 /750 |
X-axis rapid traverse rate |
m/min |
5 |
Z-axis Rapid traverse rate |
m/min |
8 |
Type of tool carrier |
4 positon electric tool post |
|
Tailstock | ||
Taper of sleeve |
MT4# |
|
Tailstock sleeve stroke |
mm |
100 |
Accuracy | ||
X/Z-axis repeatability |
mm |
0.012/0.013 |
Weight(Approx) |
kg |
1560 |
Machine Dimension(Approx) |
mm |
1860*1060*1600 |
cnc lathe machine CK6136 standard accessories
plete coolant system for ready use
plete lubrication system for ready use
3. LED work light
4. 8" three jaw manual chuck
5. 4 tool electric tool carrier
6. manual tailstock
7. drawing bar
8. tool box and tools
cnc lathe machine CK6136 optional accessories
1. automatic feeding device for long bar work piece
2. chip conveyor
3. hydraulic chuck, hydraulic station, rotaty cylinder
4.pnuematic collet chuck
1.Engineers are available to do oversea machinery service. In some countries, we have oversea
agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3.Training in our factory and on-line are free of cost.
4.Warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.Best agent price and distributer price are offered.
cnc lathe machine CK6136 packing and delivery
Before order, please kindly inform the following
1.Work piece max. length, max. O.D., material etc
2.Work piece drawings
3. Need cutters, clamping set or not
4.Customer service
