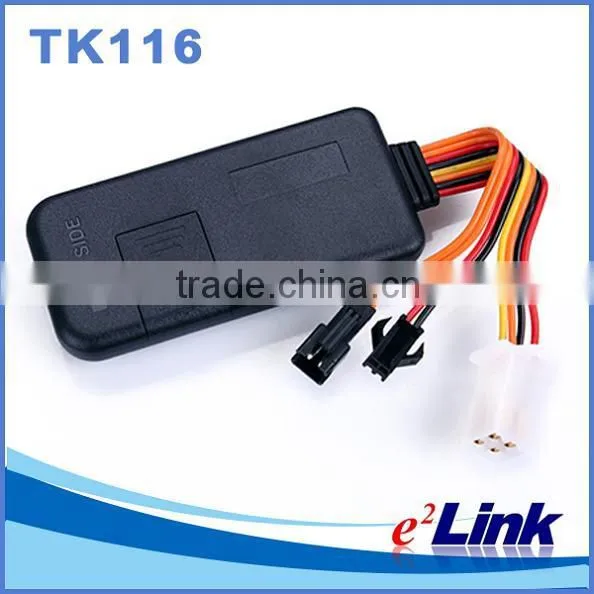

Wireless gps car tracker with engine cut off function

Specifications

1.Supports quad bands
2.A-GPS + GSM (LBS) Tracking
3.Cut off power and oil
4.SOS call
5.Use external MIC to remotely monitor









Product Features



*Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage:6-36V DC.
*A-GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install





ALARM TYPE:

• Vibration Alarm(Optional)
• Collision / falling Alarm(Optional)
• Speed Alarm
• Geo-fence Alarm
• Power disconnect Alarm
• SOS Alarm(need SOS Cable)





Function Extension

Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application







GPS Tracking Solutions



Detail picture





Specifications





Voltage	12VDC/24VDC/36VDC
Work current	<30mA@12V
Standby Current	<10mA@12V
GPS positioning accuracy	15m
GSM positioning accuracy	100m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/warm/cold start time	<3s,<15s,<60s
Battery capacity	200mAh
Dimensions (mm)	79.5(L)X38.5(W)X10.5(H)
Operating temperature	-20°C~70°C
Operating humidity	20%~80%RH
Net Weight	45 g





GPS Tracking System







1) Geo-fence Alarm





2)Add device with protocol you need







3)GPS tracking Statistics report









Package

Packing List	1 x GPS (5cm)
	1 x Power cable (100cm)
	1 x Microphone (150cm)
	1 x SOS button
	1 x English user manual
	1 x Chinese / English instruction manual
