Specifications
1.Supports quad bands2.A-GPS + GSM (LBS) Tracking
3.Cut off power and oil
4.SOS call
5.Use external MIC to remotely monitor

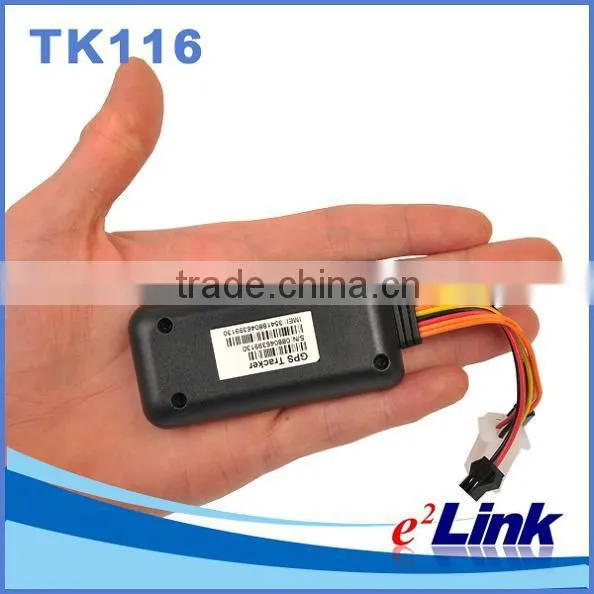

TK116-- GPS vehicle tracking device have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 6-36 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor and SOS distress. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.
Product Features
*Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage:6-36V DC.
*A-GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
ALARM TYPE:
- Vibration Alarm(Optional)
- Collision / falling Alarm(Optional)
- Speed Alarm
- Geo-fence Alarm
- Power disconnect Alarm
- SOS Alarm(need SOS Cable)
Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Voltage |
12VDC/24VDC/36VDC |
Work current |
<30mA@12V |
Standby Current |
<10mA@12V |
GPS positioning accuracy |
15m |
GSM positioning accuracy |
100m |
GPS Frequency |
1575MHz |
GSM Frequency |
850/900/1800/1900MHz |
Hot/warm/cold start time |
<3s,<15s,<60s |
Battery capacity |
200mAh |
Dimensions (mm) |
79.5(L)X38.5(W)X10.5(H) |
Operating temperature |
-20°C~70°C |
Operating humidity |
20%~80%RH |
Net Weight |
45 g |
GPS Tracking Solutions
Detail picture
GPS Tracking System
1) Geo-fence Alarm
2)Add device with protocol you need
3)GPS tracking Statistics report
Package
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
Shenzhen Eelink Communication Co. Ltd is a 10-year manufacturer of GPS tracking solutions. We are a manufacturer and exporter of GPS trackers, GPS OBD II tracking devices, vehicle tracking devices and personal tracking devices. We also offer mature GPS tracking solutions and comprehensive OEM and ODM services.
We are engaged in GPRS / WCDMA + GPS / Beidou positioning products, OBD and CAN bus and related services; GPS positioning platform's development, including PC / Android / Apple.
We have more than 50 professional engineers in R&D department which can truly understand your specific needs and complete different clients' requirements in terms of new designs, high quality and large production. Meanwhile we have a team of well-trained workers, advanced management system, complete QC and QA systems as well as strict testing methods.
Office and Laboratory
Factory SMT Workshop
Factory Cable Assembly Workshop
Company Certificate
Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
