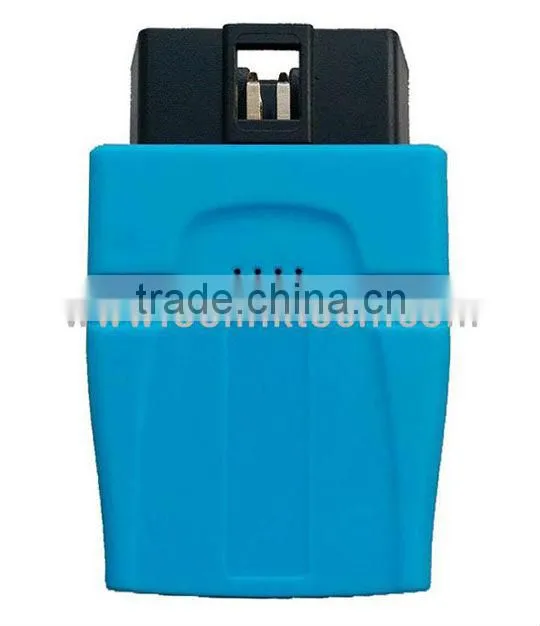

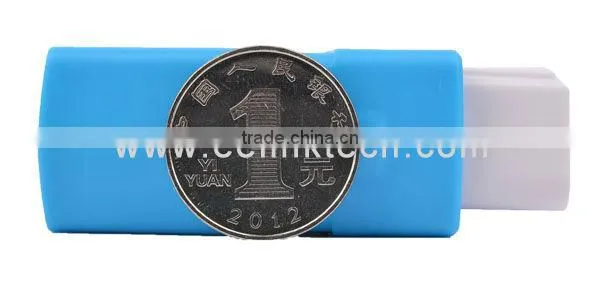

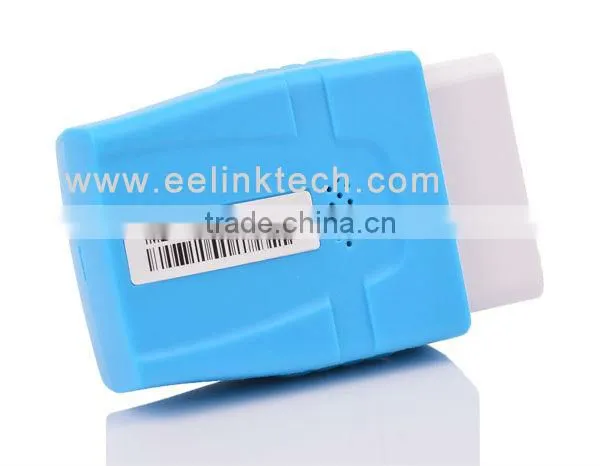

OBD Live GPS Tracker

OBD Live GPS Tracker thumbnail-1
OBD Live GPS Tracker photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, None
Contact Supplier Request Quote Chat Now
Shenzhen Eelink Communication Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, None
Function Other, Vehicle and Vehicle tracking
Place of Origin Guangdong, China
Brand Name eelink
Model Number OBD II

Specifications

locate the OBDII port in your vehicle
plug the device directly into the port
log into our tracking website and view live locat

The Informer OBD offers extensive tracking data and on-board diagnostics. The Informer OBD can be used for a wide range of applications, but it's ideal for management of fleets. The Informer OBD can increase productivity and decrease operating costs with our simplified tracking and reporting software. Our Flex plan offers FREE GPS hardware, a 1-year warranty and a low monthly payment.



Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management



1.Smart, lightweight, free installation, plug and play;
2.Widely applicable models: all vehicles follow the OBDII standard protocol;
3.Automatic data storage, data is not lost when power failure ;
4.Data saved locally for 500 hours, and supports remote storage; software updates, hardware set flexible;
5.Professional remote fault diagnosis;





Cars Diagnostic System record function



Engine speed: RPM  Accurate to 1RPM

Intake air pressure: MAP  √

Caused by air temperature: CIA  Accurate to 1 ° C

Launch from the load: LOD √

Throttle position: TPS √

Fuel pressure: FRP √

Ignition timing: ING Accurate to 0.1V

Battery voltage: VLT  Accurate to 1 ° C

Fuel System Status: LP √

Water temperature: CWT Accurate to 1 ° C

Speed: KPH Accurate to 1KM/hr





Specifications



· GSM frequency : Quad-band 850/900/1800/1900 MHz

· Size :  66*48*25mm
· Weight:  55g
· Interface: OBD interface
· Data transmission: GPRS/SMS
· Positioning mode: GPS/AGPS
· Working voltage: 9-36V DC
· Internal battery: 3.7V/100mA Lithium battery

· Install: OBD II connector/Plug-in and play
· GPS channels: 50
· Sensitivity: -160dBm
· Positioning Accuracy : 10m
· Cold start: <32s
· Hot start : < 1s

· Protocol: TCP/IP
· Built-in GPS/GSM antennas
· Working temperature :   -30 °C~ +70°C
· Storage temperature: -40 °C~ +85°C

· Humidity: 5%~95%

· Communication protocol:SMS, GPRS, TCP/UDP, USSD, FTP

· Normal currency:<100mA, 13.8VDC
. Max. currency:<150mA, 13.8VDC
. Sleep mode currency:<10mA,12VDC





This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option
