Leet Management Systems: GPS Tracking and OBDII Diagnostics

Leet Management Systems: GPS Tracking and OBDII Diagnostics thumbnail-1
Leet Management Systems: GPS Tracking and OBDII Diagnostics photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, None
Contact Supplier Request Quote Chat Now
Shenzhen Eelink Communication Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, None
Function Other, Vehicle and Vehicle tracking
Place of Origin Guangdong, China
Brand Name eelink
Model Number OBD II

Specifications

Easy Installation
5 or 10 Second Updates
Watch Live As Your Vehicle Drives
Integrated With The Live Trac GPS Tracking Platfor

Plug-in fleet management monitors and OBD-2 vehicle diagnostic analyzers are the most comprehensive fleet management devices for cost effective fleet management.



Most fleet management systems ignore the information available from a vehicle's on-board computers to support fleet management.  Eelink focuses on the data available from the vehicle via its OBD-2 port to provide comprehensive vehicle fleet intelligence.





• Scheduled and emergency / condition-based maintenance
• Fuel used, fuel efficiency and fuel economy trends
• Real engine idle times
• Vehicle / fleet utilization, total mileage, trip mileage, trip usage, trip times, trip lengths
• Complete decoding of error codes and diagnostic trouble codes (DTCs)
• Driver behavior (speeding, acceleration, deceleration, excessive idling, dangerous driving)
• Out of hours operation

On-board diagnostics is a requirement for real vehicle fleet management.

Eelink on-board diagnostic (OBD-2) systems provide up-to-the-minute tracking of individual vehicles and overall vehicle fleet health. The systems monitor and record actual engine activity every second and report that back to the fleet management platform to record actual vehicle usage statistics, real mileage and speed history, accurate idle times, engine diagnostic codes (DTCs) and driver behavior metrics.  AVL GPS systems make their best guesses at these metrics since they're observing the vehicle from 12,000 miles.



AVL/GPS systems and diagnostic systems can interoperate to raise the quality of fleet management.

Many fleets have multiple operational footprints: some vehicles need live vehicle tracking to optimize dispatch and delivery services while other vehicles need maintenance schedule tracking as their core priority.  In many fleets driver behavior tracking is also a requirement.



Eelink diagnostic-based fleet management can assist with all three of these tasks but providing vehicle diagnostics to support vehicles with AVL tracking and vehicles that need diagnostics data to track maintenance schedules.  Eelink's products also enable driver behavior monitoring to document speeding incidents, heavy acceleration and deceleration and excessive idling.







Cars Diagnostic System record function



Engine speed: RPM  Accurate to 1RPM

Intake air pressure: MAP  √

Caused by air temperature: CIA  Accurate to 1 ° C

Launch from the load: LOD √

Throttle position: TPS √

Fuel pressure: FRP √

Ignition timing: ING Accurate to 0.1V

Battery voltage: VLT  Accurate to 1 ° C

Fuel System Status: LP √

Water temperature: CWT Accurate to 1 ° C

Speed: KPH Accurate to 1KM/hr





Specifications



· GSM frequency : Quad-band 850/900/1800/1900 MHz

· Size :  66*48*25mm
· Weight:  55g
· Interface: OBD interface
· Data transmission: GPRS/SMS
· Positioning mode: GPS/AGPS
· Working voltage: 9-36V DC
· Internal battery: 3.7V/100mA Lithium battery

· Install: OBD II connector/Plug-in and play
· GPS channels: 50
· Sensitivity: -160dBm
· Positioning Accuracy : 10m
· Cold start: <32s
· Hot start : < 1s

· Protocol: TCP/IP
· Built-in GPS/GSM antennas
· Working temperature :   -30 °C~ +70°C
· Storage temperature: -40 °C~ +85°C

· Humidity: 5%~95%

· Communication protocol:SMS, GPRS, TCP/UDP, USSD, FTP

· Normal currency:<100mA, 13.8VDC
. Max. currency:<150mA, 13.8VDC
. Sleep mode currency:<10mA,12VDC

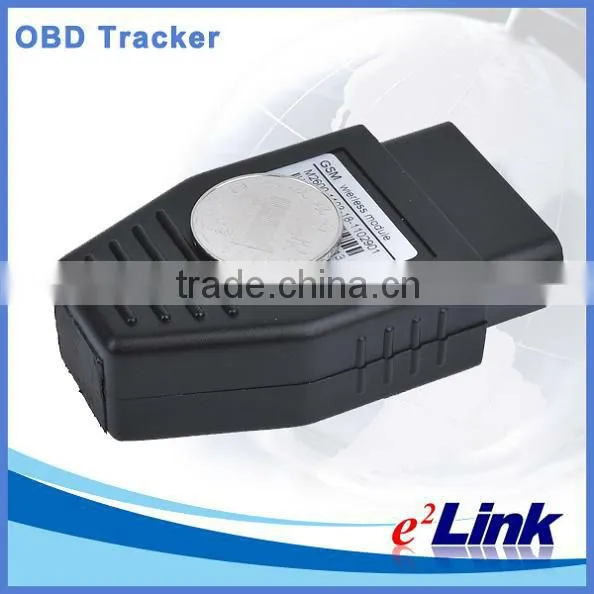

This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option
