Shandong Pulute Machine Tool Co., Ltd.

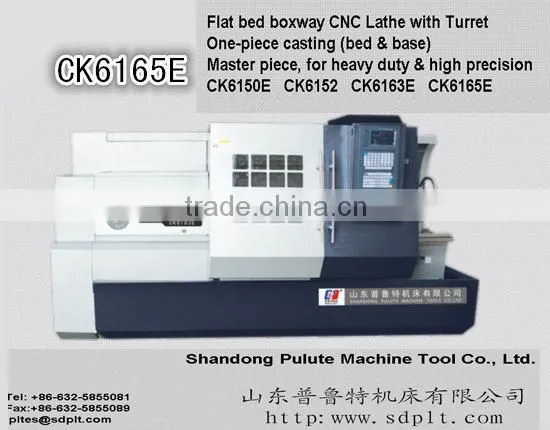

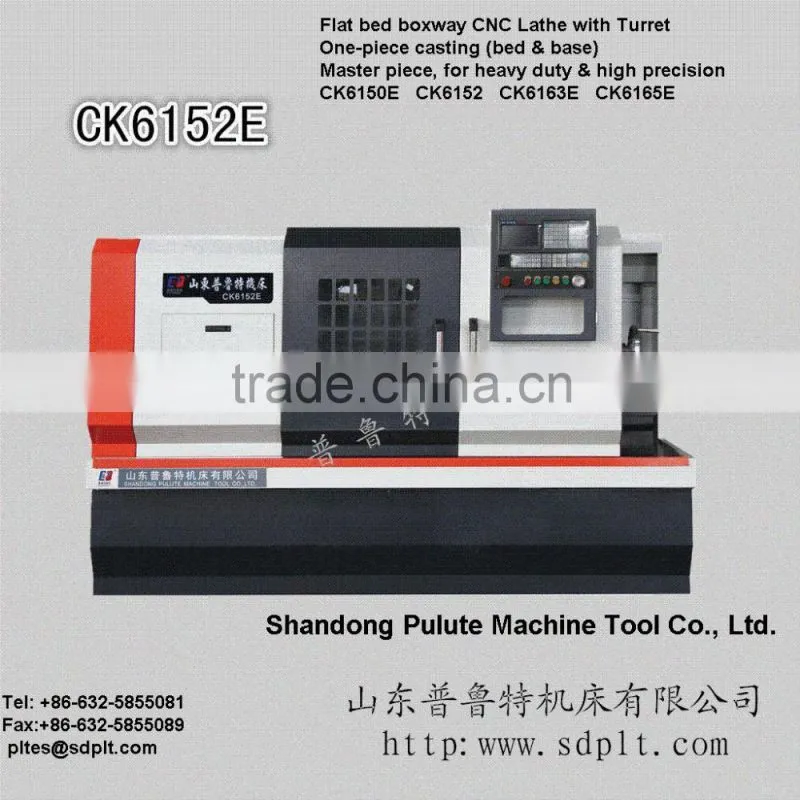

Pulutek CK6165E CK6152E

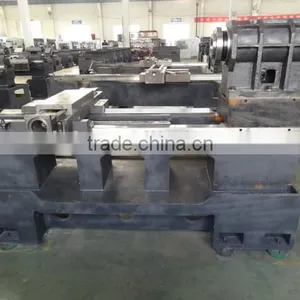

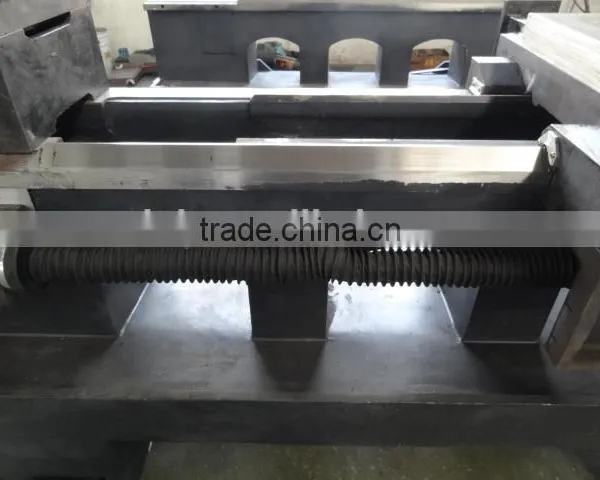

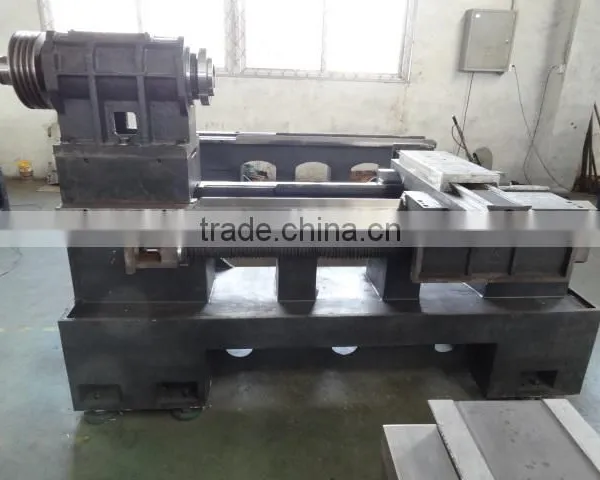

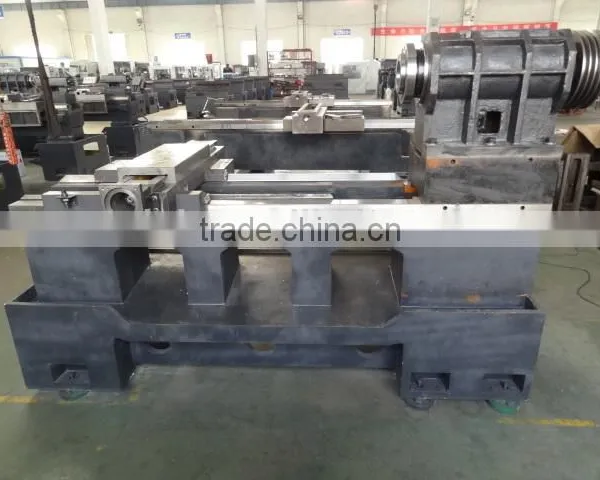

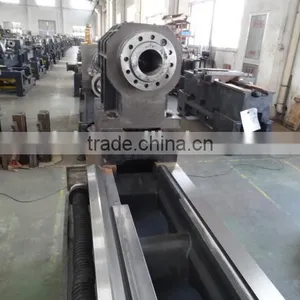

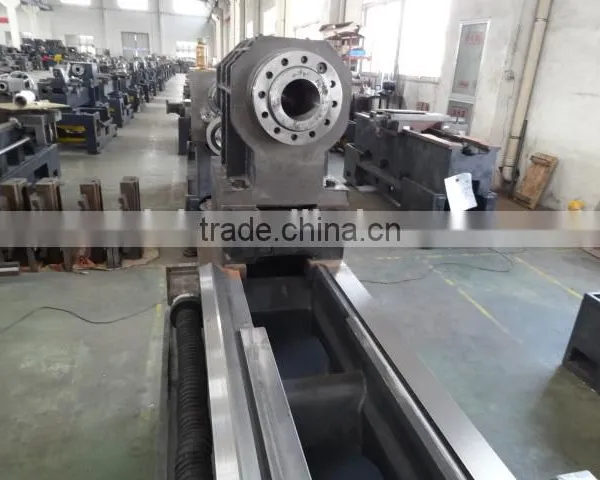

ONE-PIECE CASTING CNC LATHE MACHINE
1. SPECIFICATION
|
CK6165E |
CK6152E |
Max. swing over bed |
650mm |
530 mm |
|
Max. swing over cross slide |
400mm |
300 mm |
Max. processing length |
1000/1500/2000/3000mm |
825/1325/2000/3000mm |
Spindle transmission type |
three-gear, step-less in gear |
three-steps, variable within step |
Spindle speed |
step-less |
step-less |
Spindle speed |
10-85,40-350, 110-850 rpm |
30-150,90-450, 315-1600rpm |
Spindle nose |
C11 |
A8 |
Spindle bore |
Φ105mm |
Φ90mm |
Spindle taper |
120 1: 20 |
100-1:20 |
Spindle motor |
11 kw |
7.5kw |
Max. tool-post travel |
X:500mm |
X:320 mm |
Ball screw dia. and pitch |
X:Φ25*5mm Z:Φ50*10mm |
X:Φ25*5 Z:Φ40*10 |
Rapid feed speed |
X:4000mm/min Z:5000mm/min |
X:3000mm/min Z:6000mm/min |
Position accuracy |
X:0.025mm Z:0.03mm |
X:0.02mm Z:0.025mm |
X, Y and X axes repeatability |
X:0.01mm Z:0.015mm |
X:0.01mm Z:0.012mm |
Processing accuracy |
IT6-IT7 |
IT6-IT7 |
Workpiece surface roughness |
Ra1.6 |
Ra1.6 |
Tailstock sleeve dia. |
Φ100mm |
Φ75mm |
Tailstock sleeve travel |
250mm |
150mm |
Tailstock sleeve taper |
MT6# |
MT5# |
Tool-post |
4-station electric turret |
4-station electric turret |
Tool-post at optional |
6-station or 8 station electric turret |
6-station or 8-station electric turret |
Toolbar section size |
32*32mm |
25*25mm |
Controller (standard) |
GSK980TDC |
China GSK980TDC in English |
Controller (optional ) |
KND, FANUC, Siemens |
KND, FANUC, Siemens |
2. FEATURES
guide width 550mm
higher stability one-piece machine bed
3-steps spindle speed, variable in step
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
3. UASGE
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
4. STANDARD ACCESSORIES
GSK980TDC or Siemens 808d NC system
11kw inventer main motor
4-station electric tool post
320mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
5. OPTIONAL ACCESSORIES
Fanuc 0I mate TD NC system
6 or 8 station electric/hydraulic turret
steady rest
follow rest
11/15 kw servo motor
15 kw frequency inverter motor
12" domestic none thru-hole hydraulic chuck
12" domestic thru-hole hydraulic chuck
12" Taiwan none thru-hole hydraulic chuck
12" Taiwan thru-hole hydraulic chuck
Full enclosed cover
