Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160

Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 thumbnail-1
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 thumbnail-2
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 thumbnail-3
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 thumbnail-4
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 thumbnail-5
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 thumbnail-6
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 photo-1
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 photo-2
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 photo-3
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 photo-4
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 photo-5
Heavy Duty Cutting High Precision CNC Lathe CKE6150 CKE6160 photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Shandong Pulute Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai or Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 500mm 600mm
Place of Origin Shandong, China
Brand Name PULUTE MACHINE PULUTEK
Model Number CK6150 CK6160
Voltage 200/400V
Power(W) 7.5/11KW
Dimension(L*W*H) 2950*1520*1750 3610*1520*1750mm
Weight 2850/3150KG
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

High precision CNC Lathe

CKE6150 CKE6160 Heavy duty big bore



CKE6160 Flat bed type BOXWAY CNC LATHE



1.  SPECIFICATION

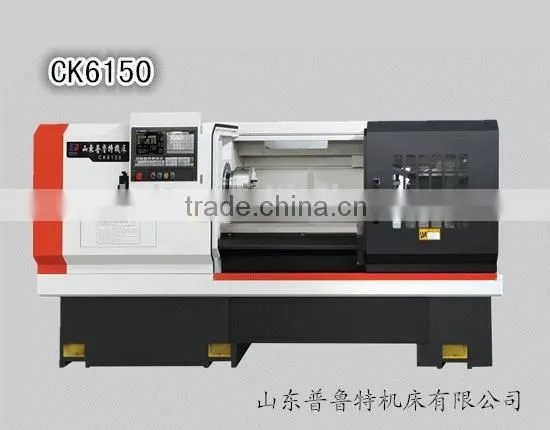

CKE6150

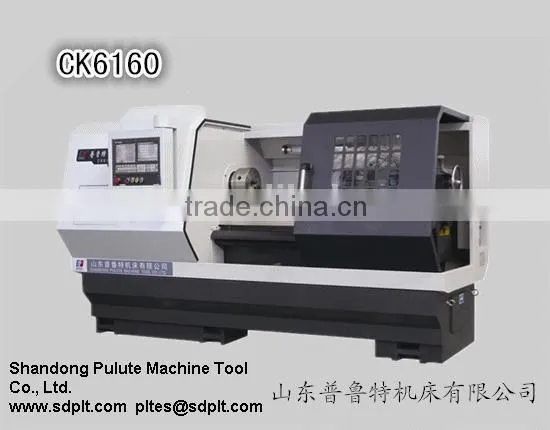

CK6160   CKE6160

Max. swing over bed

Φ500mm



Max. swing over cross slide

Φ250mm



Max. processing length

850/1500mm



Spindle bore

Φ82mm



Max. diameter of the bar

65mm



Spindle speed

1800 rpm



Spindle nose

A2-8 (A2-11 optional )



Work piece clamping way

250mm manual chuck



Spindle motor power

7.5kw



X/Z axis position accuracy

0.006mm



X/Z  axis repeatability

0.005mm



X/Z axis motor torque

5./7.5 N.m (7/10N.m optional)



X/Z axis motor power

1.3/1.88kw



X/Z axis rapid feeding speed

8/10 m/min



Tool post type

4-station electric turret



Tool bar section

25*25mm



Tailstock sleeve dia.

Φ75mm



Tailstock sleeve travel

200mm



Tailstock taper

MT5#



N.W.

2850/3850kg



Machine dimension (L*W*H)

2950/3600*1520*1750mm



 2. FEATURES

high rigidity  pedestal and  wider lay board are suitable for heavy cutting

four station electric turret

inverter stepless speed

 3. USAGE

It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,

 end face. It can also turn the single and multiple threads in metric , inch and other standard.



4. STANDARD ACCESSORIES

GSK980TDC or Siemens 808D NC system

inverter motor 7.5kw

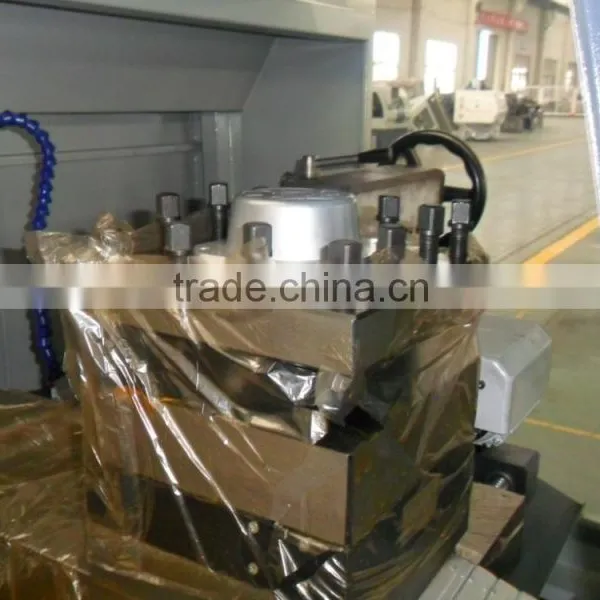

4 station electric turret

250 mm manual chuck

manual tailstock

integrated automatic lubrication system

coolant system

light system



5. OPTIONAL ACCESSORIES

Fanuc 0i mate TD or KND1000Ti

servo motor 7.5/11 kw

inverter motor 11 kw

6 station or 8 station electric turret

10″ Non-through hole hydraulic chuck

10″ through hole hydraulic chuck

10″ Non-through hole hydraulic chuck (Taiwan)

10″ through hole hydraulic chuck(Taiwan)

steady rest

follow rest

ZF gear box





Packaging & Shipping



Heavy duty cutting High precision CNC Lathe CKE6150 CKE6160



Our Services



 Engineers are available to overseas services. In some countries, we have oversea

agent   doing after-sale service in time and professionally.



 Video, online training.



 Warranty is 12 months
