GPS Tracking Chip Manufacturers, Suppler M5200
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, small min size
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gps Gprs Tracker Module for Vehicle Tracking DeviceNegotiableMOQ: 50 Pieces -
GPS GSM Module Manufacturers,gps Chips Wholesale/small Gps Tracking Chips for SaleNegotiableMOQ: 100 Pieces
-
GSM/GPRS/GPS Chip Module M5200NegotiableMOQ: 50 Pieces
-
GPS Tracking Module M5200NegotiableMOQ: 50 Pieces
-
Cheap Smallest GSM GPS Module M5200NegotiableMOQ: 50 Pieces
Type
Gps Tracker
Use
Automotive
Screen Size
Other, small min size
Function
Other, for gps tracker, gps tracking device
Place of Origin
China
Brand Name
eelink
Model Number

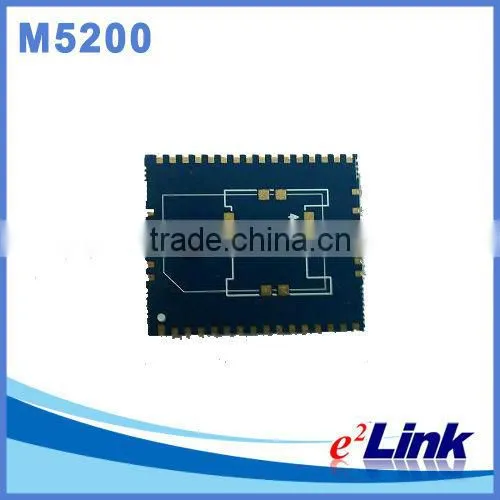

M5200
Specifications
1.the smallest micro gps tracking chip2.mini gsm tracking chip
3.gps gps min module
4.Micro gps chip

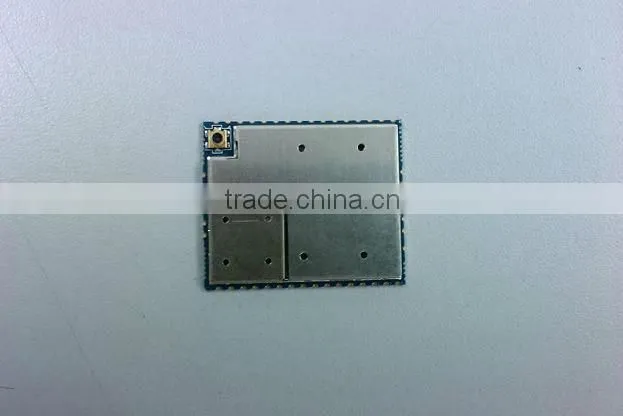

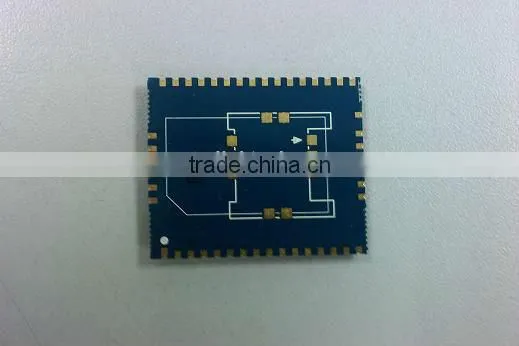

Micro GPS Tracking modules GSM M5200 0
Technical Specifications
GSM/GPRS:850/900/1800/1900 MHz Quad band
GSM/GPRS Protocol CS-1, CS-2, CS-3 and CS-4
Output power:
Class 4 (2W) @ 850/900MHz
Class 1 (1W) @ 1800/1900MHz
Sensitivity:
< -107dBm@ 850/900MHz (Conducted)
< -106dBm@ 1800/1900MHz (Conducted)
Services:GPRS Multi slot class 12
SMS (Text)
TCP/IP
UDP data
GPS: L1-band (1.57542GHz)
Channels: 210 PRN 66 Search
Product Features
22 Simultaneous tracking
Sensitivity (UHIS):
Tracking: -165dBm
Reacquisition: -158dBm
Acquisition: -149dBm
Acquisition time:
Hot: <1.5s
Warm: <35s
Cold: <90s
Reacquisition: <1.0s
WAAS:
Position: <10m
Velocity: >0.1m/s
Acceleration: >0.1m/s2
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Trading Company
Year Established
2004
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
