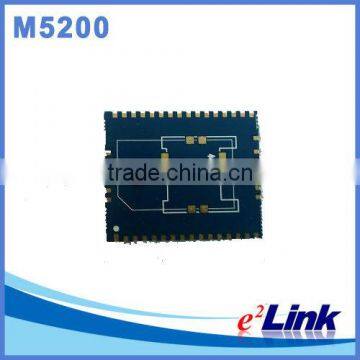

GSM/GPRS/GPS Chip Module M5200
Negotiable
/ Piece
50 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Type | Gps Tracker | Use | Automotive | |
| Screen Size | Other, small min size | Function | Other, for gps tracker, gps tracking device | |
| Place of Origin | China | Brand Name | eelink | |
| Model Number | M5200 |
Product Description
Specifications
1.GSM + GPRS+GPS Module M52002.GPS module for gps tracker
3.Lastest GSM/GPS Module
4.GPS Chip for tracking device
Technical Specifications
GSM/GPRS:850/900/1800/1900 MHz Quad band
GSM/GPRS Protocol CS-1, CS-2, CS-3 and CS-4
Output power:
Class 4 (2W) @ 850/900MHz
Class 1 (1W) @ 1800/1900MHz
Sensitivity:
< -107dBm@ 850/900MHz (Conducted)
< -106dBm@ 1800/1900MHz (Conducted)
Services:GPRS Multi slot class 12
SMS (Text)
TCP/IP
UDP data
GPS: L1-band (1.57542GHz)
Channels: 210 PRN 66 Search
Product Features
22 Simultaneous tracking
Sensitivity (UHIS):
Tracking: -165dBm
Reacquisition: -158dBm
Acquisition: -149dBm
Acquisition time:
Hot: <1.5s
Warm: <35s
Cold: <90s
Reacquisition: <1.0s
WAAS:
Position: <10m
Velocity: >0.1m/s
Acceleration: >0.1m/s2
